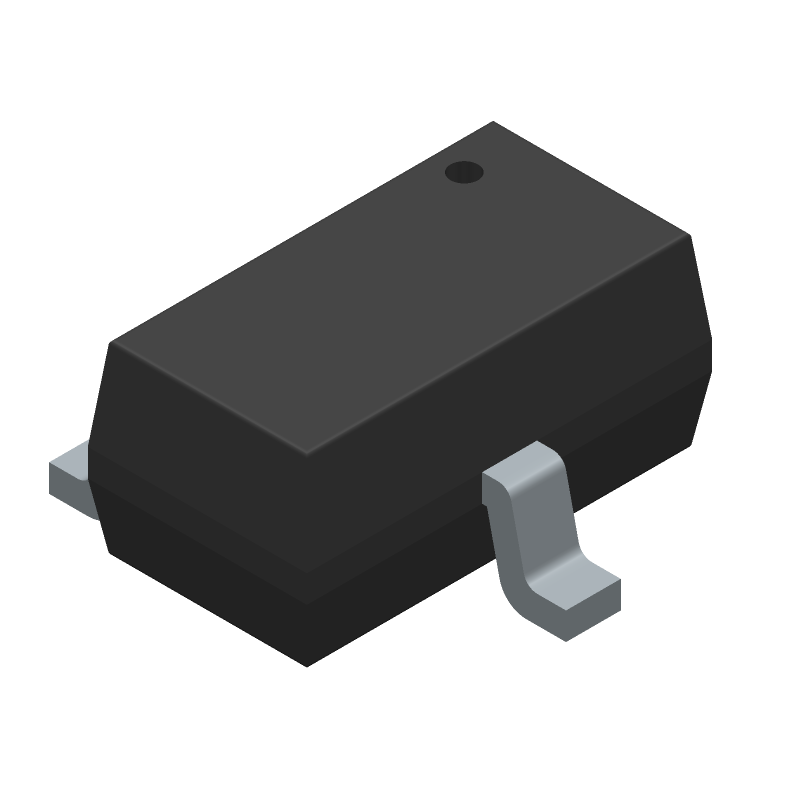

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AP2125N-3.3TRG1 by Diodes Incorporated
Results Overview of AP2125N-3.3TRG1 by Diodes Incorporated
- Distributor Offerings: (18 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
AP2125N-3.3TRG1 Information
AP2125N-3.3TRG1 by Diodes Incorporated is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for AP2125N-3.3TRG1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
76AH4612
|
Newark | Ldo, Fixed, 3.3V, 0.3A, -40 To 85Deg C Rohs Compliant: Yes |Diodes Inc. AP2125N-3.3TRG1 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.1100 / $0.3830 | Buy Now |
|
DISTI #
AP2125N-3.3TRG1DICT-ND
|
DigiKey | IC REG LINEAR 3.3V 300MA SOT23-3 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
40980 In Stock |
|
$0.0568 / $0.4600 | Buy Now |
|
DISTI #
AP2125N-3.3TRG1
|
Avnet Americas | LDO Regulator Pos 3.3V 0.36A 3-Pin SOT-23 T/R - Tape and Reel (Alt: AP2125N-3.3TRG1) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0466 / $0.0475 | Buy Now |
|
DISTI #
621-AP2125N-3.3TRG1
|
Mouser Electronics | LDO Voltage Regulators 300mA CMOS LDO 3.3V 65mV RoHS: Compliant | 9655 |
|
$0.0630 / $0.4600 | Buy Now |
|
DISTI #
E02:0323_07295533
|
Arrow Electronics | LDO Regulator Pos 3.3V 0.36A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks Date Code: 2339 | Europe - 96000 |
|
$0.0464 / $0.0710 | Buy Now |
|
DISTI #
V72:2272_06684674
|
Arrow Electronics | LDO Regulator Pos 3.3V 0.36A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 525 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2223 Container: Cut Strips | Americas - 525 |
|
$0.0629 / $0.0978 | Buy Now |
|
DISTI #
70550996
|
RS | 300mA 3.3V Low Noise LDO Regulator SOT23 Min Qty: 100 Package Multiple: 1 Container: Bulk | 0 |
|
$0.1800 / $0.2120 | RFQ |
|
|
Future Electronics | AP2125 Series 300 mA 3.3 V Output Surface Mount LDO Regulator - SOT-23-3 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks Container: Reel | 216000Reel |
|
$0.0485 / $0.0525 | Buy Now |
|
|
Bristol Electronics | Min Qty: 14 | 15 |
|
$0.3750 | Buy Now |
|
|
Quest Components | 12 |
|
$0.2500 / $0.5000 | Buy Now |
Part Details for AP2125N-3.3TRG1
AP2125N-3.3TRG1 CAD Models
AP2125N-3.3TRG1 Part Data Attributes
|
|
AP2125N-3.3TRG1
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
AP2125N-3.3TRG1
Diodes Incorporated
Fixed Positive LDO Regulator, 3.3V, 0.3V Dropout, CMOS, PDSO3, GREEN, SOT-23, 3 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Part Package Code | SOT-23 | |
| Package Description | GREEN, SOT-23, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Dropout Voltage1-Max | 0.3 V | |
| Input Voltage-Max | 6 V | |
| Input Voltage-Min | 3.8 V | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Length | 2.96 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 85 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.3 A | |
| Output Voltage1-Max | 3.366 V | |
| Output Voltage1-Min | 3.234 V | |
| Output Voltage1-Nom | 3.3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TO-236 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.45 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 2% | |
| Width | 1.6 mm |
AP2125N-3.3TRG1 Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the AP2125N-3.3TRG1 is 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
-
To ensure the stability of the output voltage, make sure to use a minimum output capacitance of 10uF, and keep the output voltage within the recommended range of 3.3V ± 2%. Also, ensure that the input voltage is within the recommended range and the device is operated within the recommended temperature range.
-
The maximum output current that the AP2125N-3.3TRG1 can provide is 1.5A, but it's recommended to keep it below 1.2A for optimal performance and reliability.
-
To handle thermal considerations, ensure that the device is mounted on a PCB with a sufficient thermal pad, and that the ambient temperature is within the recommended range of -40°C to 85°C. Also, ensure that the device is not exposed to high temperatures during operation.
-
The recommended layout and placement for the AP2125N-3.3TRG1 include keeping the input and output capacitors close to the device, using a ground plane to reduce noise, and keeping the device away from high-frequency components and noise sources.
