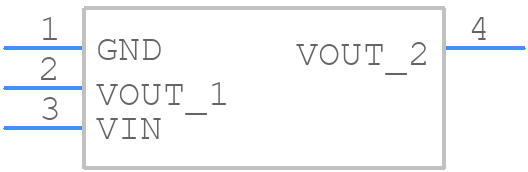

Part Symbol
-

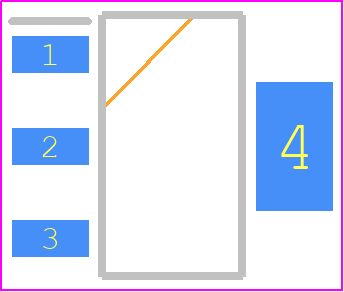

Footprint
-

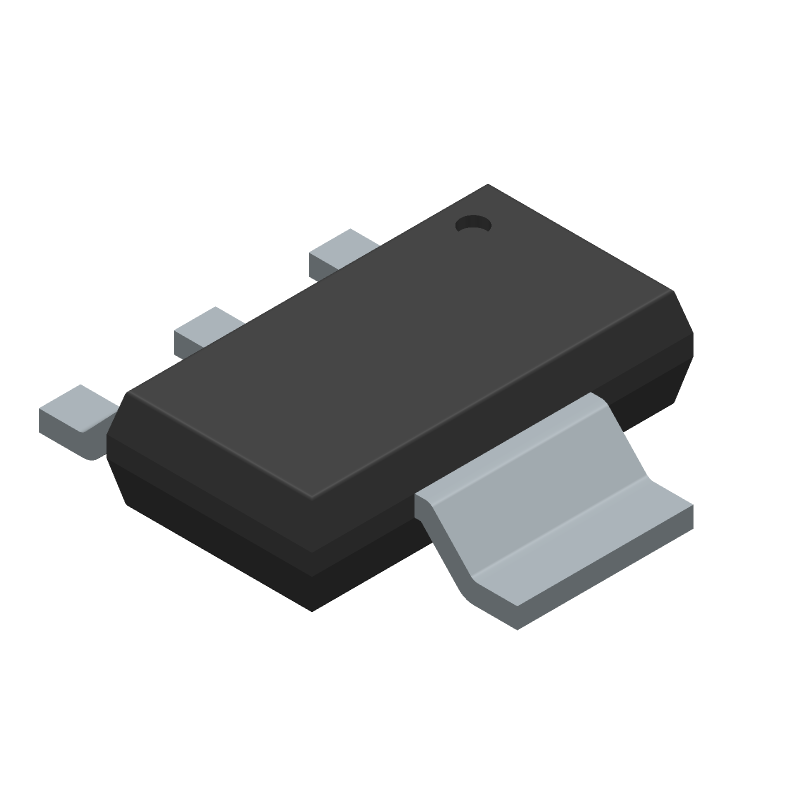

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AP2114H-1.8TRG1 by Diodes Incorporated
Results Overview of AP2114H-1.8TRG1 by Diodes Incorporated
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
AP2114H-1.8TRG1 Information
AP2114H-1.8TRG1 by Diodes Incorporated is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for AP2114H-1.8TRG1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
40AH1075
|
Newark | Ldo, Fixed, 1.8V, 1A, -40 To 85Deg C Rohs Compliant: Yes |Diodes Inc. AP2114H-1.8TRG1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 4341 |
|
$0.0320 | Buy Now |
|
DISTI #
AP2114H-1.8TRG1DICT-ND
|
DigiKey | IC REG LINEAR 1.8V 1A SOT-223-3 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
6935 In Stock |
|
$0.0921 / $0.2500 | Buy Now |
|
DISTI #
40AH1075
|
Avnet Americas | LDO Regulator Pos 1.8V 1A 3-Pin SOT-223 T/R - Product that comes on tape, but is not reeled (Alt: 40AH1075) RoHS: Compliant Min Qty: 5 Package Multiple: 5 Lead time: 32 Weeks, 4 Days Container: Ammo Pack | 4341 Partner Stock |
|
$0.1800 / $0.4810 | Buy Now |
|
DISTI #
AP2114H-1.8TRG1
|
Avnet Americas | LDO Regulator Pos 1.8V 1A 3-Pin SOT-223 T/R - Tape and Reel (Alt: AP2114H-1.8TRG1) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0686 / $0.0722 | Buy Now |
|
DISTI #
621-AP2114H-1.8TRG1
|
Mouser Electronics | LDO Voltage Regulators 1.5MHz CMOS LDO 2.5V to 5V 600mV RoHS: Compliant | 4500 |
|
$0.0910 / $0.6000 | Buy Now |
|
DISTI #
P40:2555_25717287
|
Arrow Electronics | LDO Regulator Pos 1.8V 1A 4-Pin(3+Tab) SOT-223 T/R RoHS: Compliant Min Qty: 1669 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2348 | Europe - 3236 |
|
$0.0632 | Buy Now |
|
DISTI #
V72:2272_06686325
|
Arrow Electronics | LDO Regulator Pos 1.8V 1A 4-Pin(3+Tab) SOT-223 T/R RoHS: Compliant Min Qty: 1433 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2223 Container: Cut Strips | Americas - 3107 |
|
$0.0478 / $0.0682 | Buy Now |
|
DISTI #
AP2114H-1.8TRG1
|
TME | IC: voltage regulator, LDO,linear,fixed, 1.8V, 1A, SOT223, SMD Min Qty: 1 | 0 |
|
$0.0810 / $0.3600 | RFQ |
|
DISTI #
AP2114H-1.8TRG1
|
IBS Electronics | AP2114H-1.8TRG1 by DIODES INC. is a 1.8V, 1A fixed low noise CMOS LDO regulator in SOT-223 package, ideal for efficient power management in compact designs. Min Qty: 4000 Package Multiple: 1 | 0 |
|
$0.0972 / $0.1037 | Buy Now |
|
DISTI #
AP2114H-1.8TRG1
|
Avnet Asia | LDO Regulator Pos 1.8V 1A 3-Pin SOT-223 T/R (Alt: AP2114H-1.8TRG1) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 20 Weeks, 0 Days | 0 |
|
$0.0635 / $0.0710 | Buy Now |
Part Details for AP2114H-1.8TRG1
AP2114H-1.8TRG1 CAD Models
AP2114H-1.8TRG1 Part Data Attributes
|
|
AP2114H-1.8TRG1
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
AP2114H-1.8TRG1
Diodes Incorporated
Fixed Positive LDO Regulator, 1.8V, 0.7V Dropout, CMOS, PDSO3, GREEN, SOT-223, 4 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Part Package Code | SOT-223 | |
| Package Description | GREEN, SOT-223, 4 PIN | |
| Pin Count | 4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 32 Weeks, 4 Days | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.7 V | |
| Dropout Voltage1-Nom | 0.5 V | |
| Input Voltage Absolute-Max | 6.5 V | |
| Input Voltage-Max | 6 V | |
| Input Voltage-Min | 2.8 V | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Length | 6.5 mm | |
| Line Regulation-Max | 0.00576% | |
| Load Regulation-Max | 0.01798% | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 150 °C | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 1 A | |
| Output Voltage1-Max | 1.827 V | |
| Output Voltage1-Min | 1.773 V | |
| Output Voltage1-Nom | 1.8 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOT-223 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.8 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.3 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 1.5% | |
| Width | 3.5 mm |
Alternate Parts for AP2114H-1.8TRG1
This table gives cross-reference parts and alternative options found for AP2114H-1.8TRG1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AP2114H-1.8TRG1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TPS70618DRVR | Texas Instruments | $0.3459 | 150-mA, ultra-low-IQ, low-dropout voltage regulator with reverse current protection & enable 6-WSON -40 to 125 | AP2114H-1.8TRG1 vs TPS70618DRVR |
| TPS70618DBVR | Texas Instruments | $0.3459 | 150-mA, ultra-low-IQ, low-dropout voltage regulator with reverse current protection & enable 5-SOT-23 -40 to 125 | AP2114H-1.8TRG1 vs TPS70618DBVR |
| AP2114H-1.8TRG1 | Diodes-BCD | Check for Price | Fixed Positive LDO Regulator, 1.8V, 0.7V Dropout, CMOS, PDSO3, GREEN, SOT-223, 4 PIN | AP2114H-1.8TRG1 vs AP2114H-1.8TRG1 |
AP2114H-1.8TRG1 Frequently Asked Questions (FAQ)
-
A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
-
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, a minimum output capacitance of 10uF is recommended, and the output capacitor's ESR should be less than 1 ohm.
-
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device.
-
The AP2114H-1.8TRG1 is rated for operation up to 125°C. However, it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments.
-
A minimum input capacitance of 1uF is recommended to ensure stable operation and prevent oscillations. However, a larger input capacitance may be required depending on the specific application and input voltage ripple.
