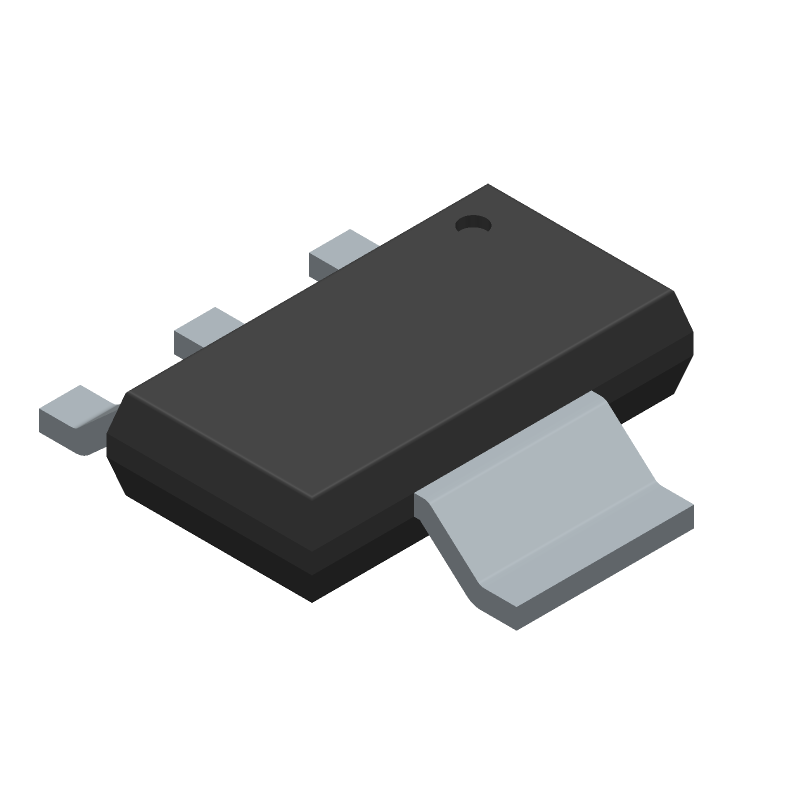

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AP1117E33G-13 by Diodes Incorporated
Results Overview of AP1117E33G-13 by Diodes Incorporated
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Automotive
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
AP1117E33G-13 Information
AP1117E33G-13 by Diodes Incorporated is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for AP1117E33G-13
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 2500 |
|
RFQ | ||
|
|
Bristol Electronics | 1773 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 13 | 1344 |
|
$0.1320 / $0.4125 | Buy Now |
|
|
Bristol Electronics | 749 |
|
RFQ | ||
|
|
Bristol Electronics | 294 |
|
RFQ | ||
|
|
Quest Components | 3.3 V FIXED POSITIVE LDO REGULATOR, 1.4 V DROPOUT, PDSO3 | 4056 |
|
$0.0982 / $0.2265 | Buy Now |
|
|
Quest Components | 3.3 V FIXED POSITIVE LDO REGULATOR, 1.4 V DROPOUT, PDSO3 | 2000 |
|
$0.6125 / $1.7500 | Buy Now |
|
|
Quest Components | 3.3 V FIXED POSITIVE LDO REGULATOR, 1.4 V DROPOUT, PDSO3 | 1124 |
|
$0.7753 / $2.2150 | Buy Now |
|
|
Quest Components | 3.3 V FIXED POSITIVE LDO REGULATOR, 1.4 V DROPOUT, PDSO3 | 1075 |
|
$0.1650 / $0.5500 | Buy Now |
|
|
Quest Components | 3.3 V FIXED POSITIVE LDO REGULATOR, 1.4 V DROPOUT, PDSO3 | 599 |
|
$0.2265 / $0.7550 | Buy Now |
Part Details for AP1117E33G-13
AP1117E33G-13 CAD Models
AP1117E33G-13 Part Data Attributes
|
|
AP1117E33G-13
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
AP1117E33G-13
Diodes Incorporated
Fixed Positive LDO Regulator, 3.3V, 1.4V Dropout, BIPolar, PDSO3, GREEN, SOT-223, 3 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | DIODES INC | |
| Part Package Code | SOT-223 | |
| Package Description | GREEN, SOT-223, 3 PIN | |
| Pin Count | 4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 1.4 V | |
| Dropout Voltage1-Nom | 1.3 V | |
| Input Voltage Absolute-Max | 18 V | |
| Input Voltage-Max | 12 V | |
| Input Voltage-Min | 4.8 V | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Length | 6.5 mm | |
| Line Regulation-Max | 0.0066% | |
| Load Regulation-Max | 0.033% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -20 °C | |
| Output Current1-Max | 1 A | |
| Output Voltage1-Max | 3.365 V | |
| Output Voltage1-Min | 3.235 V | |
| Output Voltage1-Nom | 3.3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOT-223 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.8 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.3 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 2% | |
| Width | 3.5 mm |
Alternate Parts for AP1117E33G-13
This table gives cross-reference parts and alternative options found for AP1117E33G-13. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AP1117E33G-13, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AP1117IE33G-13 | Diodes Incorporated | Check for Price | Fixed Positive LDO Regulator, 3.3V, 1.4V Dropout, BIPolar, PDSO3, GREEN, SOT-223, 3 PIN | AP1117E33G-13 vs AP1117IE33G-13 |
| AP1117SK33-7 | Diodes Incorporated | Check for Price | Fixed Positive LDO Regulator, 3.3V, 1.4V Dropout, BIPolar, PDSO4, LEAD FREE, SOT-223, 3 PIN | AP1117E33G-13 vs AP1117SK33-7 |
| AP1117EI33G-U | Diodes Incorporated | Check for Price | Fixed Positive LDO Regulator, 3.3V, 1.4V Dropout, PSSO3, GREEN, SOT-223, 3 PIN | AP1117E33G-13 vs AP1117EI33G-U |
| AP1117E33 | Diodes Incorporated | Check for Price | Fixed Positive LDO Regulator, 3.3V, 1.4V Dropout, BIPolar, PDSO4, SOT-223, 3 PIN | AP1117E33G-13 vs AP1117E33 |
| AP1117E33L-U | Diodes Incorporated | Check for Price | Fixed Positive LDO Regulator, 3.3V, 1.4V Dropout, BIPolar, PSSO3, ROHS COMPLIANT, SOT-223, 3 PIN | AP1117E33G-13 vs AP1117E33L-U |
AP1117E33G-13 Frequently Asked Questions (FAQ)
-
The AP1117E33G-13 can handle input voltages up to 15V, but it's recommended to keep the input voltage at least 2V above the output voltage to ensure proper regulation.
-
To ensure stability, a minimum output capacitance of 10uF is recommended, and the ESR (Equivalent Series Resistance) of the capacitor should be less than 1 ohm.
-
The AP1117E33G-13 can provide up to 1A of output current, but it's recommended to derate the output current based on the ambient temperature and the input voltage.
-
The power dissipation of the AP1117E33G-13 can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
-
The AP1117E33G-13 has a thermal shutdown temperature of 150°C, which means that the device will shut down if the junction temperature exceeds this value.
