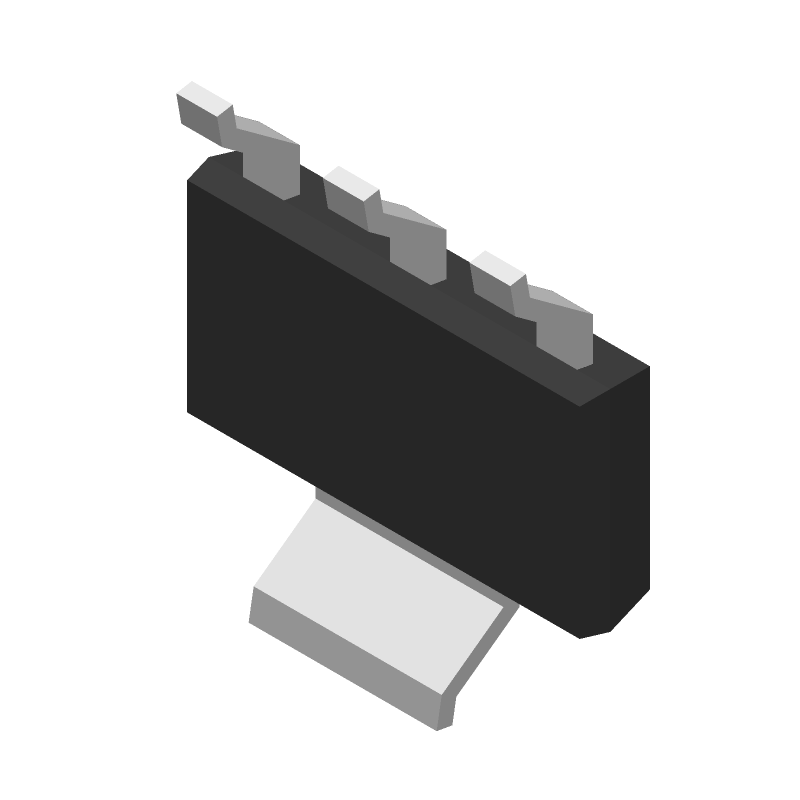

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AMS1117-3.3 by Advanced Monolithic Systems Inc
Results Overview of AMS1117-3.3 by Advanced Monolithic Systems Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
AMS1117-3.3 Information
AMS1117-3.3 by Advanced Monolithic Systems Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for AMS1117-3.3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Velocity Electronics | Our Stock | 2480 |
|
RFQ | |
|
|
LCSC | 72dB(120Hz) 1A Fixed 3.3V Positive electrode 16V SOT-223 Voltage Regulators - Linear Low Drop Out (LDO) Regulators ROHS | 195720 |
|
$0.0989 / $0.1828 | Buy Now |
Part Details for AMS1117-3.3
AMS1117-3.3 CAD Models
AMS1117-3.3 Part Data Attributes
|
|
AMS1117-3.3
Advanced Monolithic Systems Inc
Buy Now
Datasheet
|
Compare Parts:
AMS1117-3.3
Advanced Monolithic Systems Inc
Fixed Positive LDO Regulator, 3.3V, 1.3V Dropout, PDSO3, SOT-223, 3 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Contact Manufacturer | |
| Ihs Manufacturer | ADVANCED MONOLITHIC SYSTEMS INC | |
| Package Description | SOT-223, 3 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Advanced | |
| Dropout Voltage1-Max | 1.3 V | |
| Dropout Voltage1-Nom | 1.1 V | |
| JESD-30 Code | R-PDSO-G3 | |
| Length | 6.505 mm | |
| Load Regulation-Max | 0.025% | |
| Number of Functions | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 1 A | |
| Output Voltage1-Max | 3.399 V | |
| Output Voltage1-Min | 3.201 V | |
| Output Voltage1-Nom | 3.3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOT-223 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.8 mm | |
| Surface Mount | YES | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.29 mm | |
| Terminal Position | DUAL | |
| Voltage Tolerance-Max | 3% | |
| Width | 3.505 mm |
AMS1117-3.3 Frequently Asked Questions (FAQ)
-
The maximum input voltage is 15V, but it's recommended to keep it below 12V for reliable operation.
-
The AMS1117-3.3 is rated for operation up to 125°C, but thermal derating is required above 85°C. Ensure proper heat sinking and thermal management to prevent overheating.
-
Use a minimum output capacitance of 10uF with an ESR of 0.5Ω to 5Ω to ensure stability. Additionally, keep the input and output capacitors close to the regulator to minimize parasitic inductance.
-
The minimum input voltage required for proper regulation is 4.5V, but it's recommended to keep it above 5V for optimal performance.
-
Yes, the AMS1117-3.3 is suitable for battery-powered devices. However, consider the quiescent current (IQ) of 5mA and the dropout voltage (around 1.3V) when designing your power management system.
