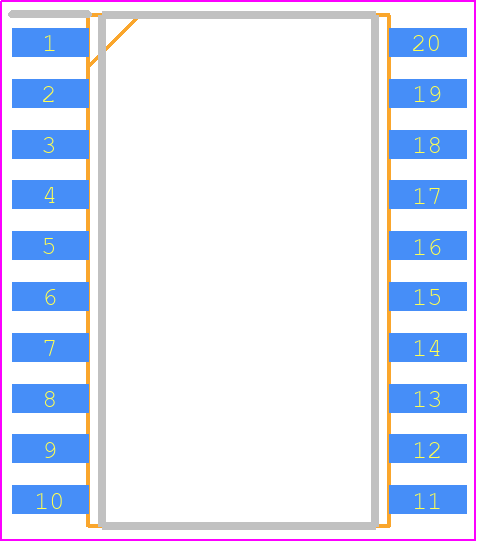

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AMIS42700WCGA4RH by onsemi
Results Overview of AMIS42700WCGA4RH by onsemi
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Aerospace and Defense
Agriculture Technology
Robotics and Drones
AMIS42700WCGA4RH Information
AMIS42700WCGA4RH by onsemi is a Network Interface.
Network Interfaces are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for AMIS42700WCGA4RH
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
79Y9308
|
Newark | Can Transceiver, 1Mbps, Soic-20, Can Interface Ic Type:Can Transceiver, Data Rate Max:1Mbps, Supply Voltage Min:4.75V, Supply Voltage Max:5.25V, Ic Case/Package:Soic, No. Of Pins:20Pins, No. Of Channels:2Channels, Product Range:- Rohs Compliant: Yes |Onsemi AMIS42700WCGA4RH RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
Buy Now | |
|
DISTI #
SMC-AMIS42700WCGA4RH
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days Date Code: 1808 Container: Tape & Reel | 307 |
|
RFQ | |
|
|
Chip 1 Exchange | INSTOCK | 21000 |
|
RFQ | |
|
DISTI #
AMIS42700WCGA4RH
|
Avnet Silica | CAN 1Mbps 5V 20Pin SOIC W TR (Alt: AMIS42700WCGA4RH) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
AMIS42700WCGA4RH
|
EBV Elektronik | CAN 1Mbps 5V 20Pin SOIC W TR (Alt: AMIS42700WCGA4RH) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Telecommunications | 4392 |
|
RFQ |
Part Details for AMIS42700WCGA4RH
AMIS42700WCGA4RH CAD Models
AMIS42700WCGA4RH Part Data Attributes
|
|
AMIS42700WCGA4RH
onsemi
Buy Now
Datasheet
|
Compare Parts:
AMIS42700WCGA4RH
onsemi
Dual CAN Transceiver, High Speed, SOIC-20 Wide Body, 1500-REEL, Automotive Qualified
|
| Pbfree Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOIC-20 Wide Body | |
| Package Description | SOIC-20 | |
| Pin Count | 20 | |
| Manufacturer Package Code | 751AQ | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 2 Days | |
| Samacsys Manufacturer | onsemi | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 12.7762 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Number of Transceivers | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP20,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.6416 mm | |
| Supply Current-Max | 0.1375 mA | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Telecom IC Type | INTERFACE CIRCUIT | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5184 mm |
