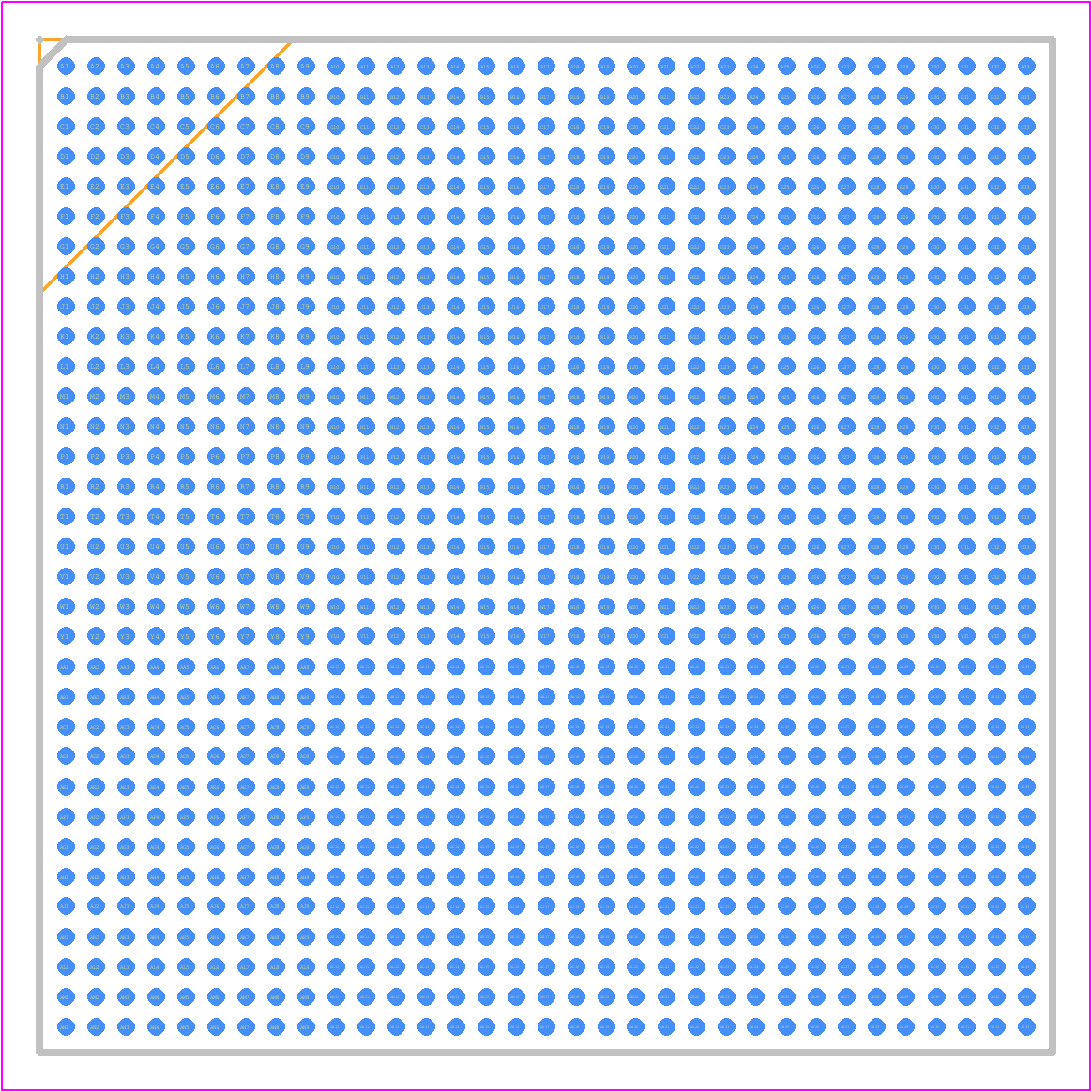

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AM5K2E02ABD4 by Texas Instruments
Results Overview of AM5K2E02ABD4 by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Agriculture Technology
Electronic Manufacturing
Robotics and Drones
AM5K2E02ABD4 Information
AM5K2E02ABD4 by Texas Instruments is a Microprocessor.
Microprocessors are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for AM5K2E02ABD4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
AM5K2E02ABD4-ND
|
DigiKey | IC MPU SITARA 1.4GHZ 1089FCBGA Min Qty: 40 Lead time: 18 Weeks Container: Tray | Temporarily Out of Stock |
|
$130.0630 | Buy Now |
|
DISTI #
595-AM5K2E02ABD4
|
Mouser Electronics | Microprocessors - MPU Sitara processor: du al-Arm Cortex-A15 10 RoHS: Compliant | 0 |
|
$129.5800 / $142.7100 | Order Now |
Part Details for AM5K2E02ABD4
AM5K2E02ABD4 CAD Models
AM5K2E02ABD4 Part Data Attributes
|
|
AM5K2E02ABD4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
AM5K2E02ABD4
Texas Instruments
Sitara processor: dual-Arm Cortex-A15 1089-FCBGA 0 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | FBGA, | |
| Reach Compliance Code | compliant | |
| ECCN Code | 5A991.B.4 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Address Bus Width | 16 | |
| Boundary Scan | YES | |
| External Data Bus Width | 64 | |
| Format | FLOATING POINT | |
| Integrated Cache | YES | |
| JESD-30 Code | S-PBGA-B1089 | |
| JESD-609 Code | e1 | |
| Length | 27 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 4 | |
| Number of DMA Channels | 32 | |
| Number of Terminals | 1089 | |
| On Chip Data RAM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | FBGA | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 245 | |
| RAM (words) | 2097152 | |
| Seated Height-Max | 3.55 mm | |
| Speed | 1400 MHz | |
| Supply Voltage-Max | 1.05 V | |
| Supply Voltage-Min | 0.95 V | |
| Supply Voltage-Nom | 1 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | OTHER | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 27 mm | |
| uPs/uCs/Peripheral ICs Type | MICROPROCESSOR, RISC |
Alternate Parts for AM5K2E02ABD4
This table gives cross-reference parts and alternative options found for AM5K2E02ABD4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AM5K2E02ABD4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AM5K2E02SABDA4 | Texas Instruments | Check for Price | IC RISC PROCESSOR, Microprocessor | AM5K2E02ABD4 vs AM5K2E02SABDA4 |
