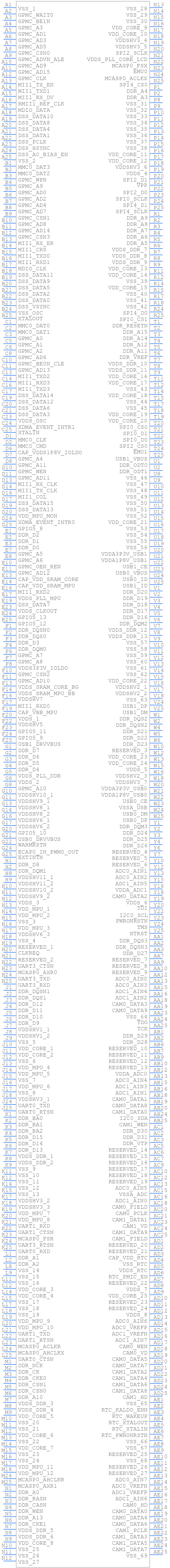

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AM4376BZDNA100 by Texas Instruments
Results Overview of AM4376BZDNA100 by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Smart Cities
AM4376BZDNA100 Information
AM4376BZDNA100 by Texas Instruments is a Microprocessor.
Microprocessors are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for AM4376BZDNA100
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-43121-ND
|
DigiKey | IC MPU SITARA 1.0GHZ 491NFBGA Min Qty: 1 Lead time: 18 Weeks Container: Tray |
746 In Stock |
|
$13.1396 / $20.2500 | Buy Now |
|
DISTI #
595-AM4376BZDNA100
|
Mouser Electronics | Microprocessors - MPU Sitara Processor 1GH z -40 to 105 RoHS: Compliant | 152 |
|
$13.1300 / $19.1300 | Buy Now |
|
DISTI #
V99:2348_07230417
|
Arrow Electronics | MPU AM437x RISC 32bit 1GHz 491-Pin NFBGA Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Date Code: 2324 | Americas - 30 |
|
$13.1000 | Buy Now |
|
DISTI #
70322902
|
Verical | MPU AM437x RISC 32bit 1GHz 491-Pin NFBGA Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2324 | Americas - 30 |
|
$13.1000 | Buy Now |
|
|
LCSC | ARM-ASeries 1GHz NFBGA-491 Microcontrollers (MCU/MPU/SOC) ROHS | 5 |
|
$15.3945 / $15.9086 | Buy Now |
|
|
Vyrian | Peripheral ICs | 1755 |
|
RFQ | |
|
|
Win Source Electronics | MOD ARM CORTEX-A9 491NFBGA | 4538 |
|
$16.4437 / $24.6655 | Buy Now |
Part Details for AM4376BZDNA100
AM4376BZDNA100 CAD Models
AM4376BZDNA100 Part Data Attributes
|
|
AM4376BZDNA100
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
AM4376BZDNA100
Texas Instruments
Sitara processor: Arm Cortex-A9, PRU-ICSS 491-NFBGA -40 to 105
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | BGA | |
| Package Description | NFBGA-491 | |
| Pin Count | 491 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 5A992.C | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| JESD-30 Code | S-PBGA-B491 | |
| JESD-609 Code | e1 | |
| Length | 17 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Terminals | 491 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFBGA | |
| Package Equivalence Code | BGA491,25X25,25 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.3 mm | |
| Supply Voltage-Max | 1.378 V | |
| Supply Voltage-Min | 1.272 V | |
| Supply Voltage-Nom | 1.325 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 17 mm | |
| uPs/uCs/Peripheral ICs Type | SoC |
Alternate Parts for AM4376BZDNA100
This table gives cross-reference parts and alternative options found for AM4376BZDNA100. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AM4376BZDNA100, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MCIMX6L2EVN10AC | NXP Semiconductors | $22.7800 | RISC Microprocessor | AM4376BZDNA100 vs MCIMX6L2EVN10AC |
| MCIMX6X1EVO10AB | NXP Semiconductors | $26.7550 | RISC PROCESSOR | AM4376BZDNA100 vs MCIMX6X1EVO10AB |
| MCIMX6X1EVK10AB | NXP Semiconductors | $27.8500 | RISC PROCESSOR | AM4376BZDNA100 vs MCIMX6X1EVK10AB |
| MCIMX6X2EVN10ABR | NXP Semiconductors | $28.0161 | RISC Microprocessor, 32-Bit, 800MHz, CMOS, PBGA400 | AM4376BZDNA100 vs MCIMX6X2EVN10ABR |
| MCIMX6X2EVN10AC | NXP Semiconductors | $28.1050 | Multifunction Peripheral | AM4376BZDNA100 vs MCIMX6X2EVN10AC |
| MCIMX6L3EVN10AC | NXP Semiconductors | Check for Price | RISC Microprocessor | AM4376BZDNA100 vs MCIMX6L3EVN10AC |
AM4376BZDNA100 Frequently Asked Questions (FAQ)
-
The recommended power-on sequence is to power up the core voltage (VDD_CORE) first, followed by the I/O voltage (VDD_SHVx) and then the PLL voltage (VDD_PLL). This ensures proper device operation and prevents damage.
-
The AM4376BZDNA100 has multiple clock sources, including an internal oscillator, external crystal oscillator, and PLL. The clock sources can be configured using the Clock Domain Control (CDC) module. Refer to the TRM (Technical Reference Manual) for detailed configuration information.
-
The maximum operating frequency of the AM4376BZDNA100 is 1 GHz. However, the actual operating frequency may vary depending on the specific use case and system design.
-
The AM4376BZDNA100 has multiple power domains that can be controlled using the Power and Sleep Controller (PSC). The PSC allows for dynamic voltage and frequency scaling, as well as power gating and sleep modes. Refer to the TRM for detailed information on power management.
-
The AM4376BZDNA100 supports up to 512 MB of RAM and 1 GB of flash memory. However, the actual memory configuration may vary depending on the specific use case and system design.
