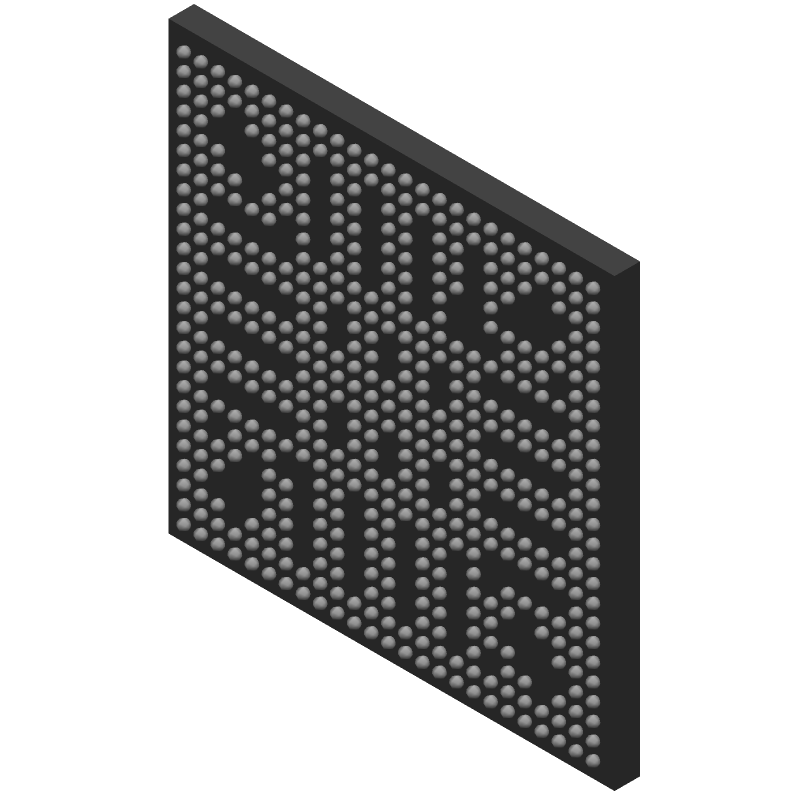

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AM4376BZDN100 by Texas Instruments
Results Overview of AM4376BZDN100 by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Smart Cities
AM4376BZDN100 Information
AM4376BZDN100 by Texas Instruments is an Other uP/uC/Peripheral IC.
Other uPs/uCs/Peripheral ICs are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for AM4376BZDN100
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-42747-ND
|
DigiKey | IC MPU SITARA 1.0GHZ 491NFBGA Min Qty: 1 Lead time: 18 Weeks Container: Tray |
90 In Stock |
|
$10.2412 / $14.0600 | Buy Now |
|
DISTI #
595-AM4376BZDN100
|
Mouser Electronics | Microprocessors - MPU Sitara Processor 100 Mhz 0 to 90 RoHS: Compliant | 15 |
|
$10.2400 / $14.0600 | Buy Now |
|
|
LCSC | ARM-ASeries 1GHz BGA-491 Microcontrollers (MCU/MPU/SOC) ROHS | 5 |
|
$29.5809 / $30.6053 | Buy Now |
|
|
Vyrian | Peripheral ICs | 87 |
|
RFQ |
Part Details for AM4376BZDN100
AM4376BZDN100 CAD Models
AM4376BZDN100 Part Data Attributes
|
|
AM4376BZDN100
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
AM4376BZDN100
Texas Instruments
Sitara processor: Arm Cortex-A9, PRU-ICSS 491-NFBGA 0 to 90
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | BGA | |
| Package Description | NFBGA-491 | |
| Pin Count | 491 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 5A992.C | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| JESD-30 Code | S-PBGA-B491 | |
| JESD-609 Code | e1 | |
| Length | 17 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Terminals | 491 | |
| Operating Temperature-Max | 90 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFBGA | |
| Package Equivalence Code | BGA491,25X25,25 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.3 mm | |
| Supply Voltage-Max | 1.378 V | |
| Supply Voltage-Min | 1.272 V | |
| Supply Voltage-Nom | 1.325 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | OTHER | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 17 mm | |
| uPs/uCs/Peripheral ICs Type | SoC |
Alternate Parts for AM4376BZDN100
This table gives cross-reference parts and alternative options found for AM4376BZDN100. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AM4376BZDN100, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
AM4376BZDN100 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the AM4376BZDN100 is -40°C to 90°C.
-
The pin multiplexing on the AM4376BZDN100 can be configured using the Control Module Registers (CMR) and the Pin Multiplexing Register (MUX). Refer to the TRM (Technical Reference Manual) for more information.
-
The maximum frequency of the DDR3 interface on the AM4376BZDN100 is 1066 MT/s.
-
Power management on the AM4376BZDN100 can be implemented using the Power and Sleep Controller (PSC) module. This module provides various power modes, including idle, standby, and shutdown modes.
-
The maximum bandwidth of the PCIe interface on the AM4376BZDN100 is 5 GT/s.
