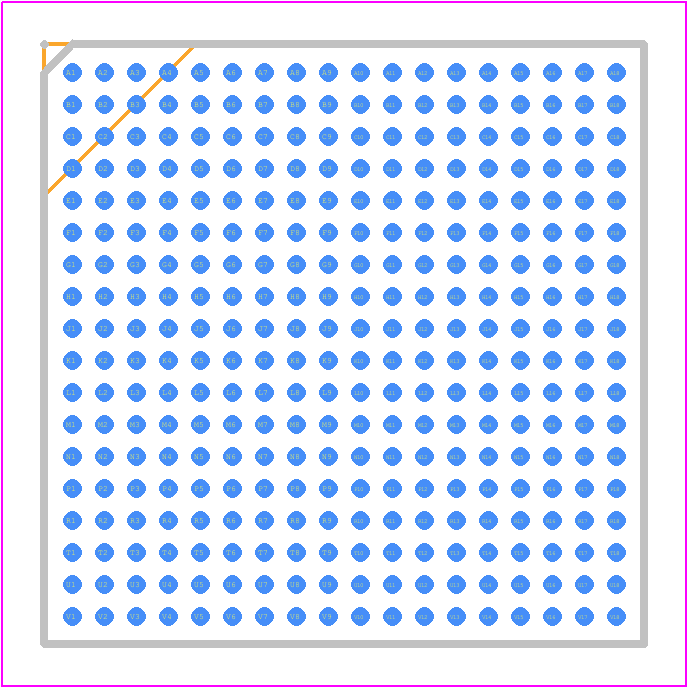

Footprint
-

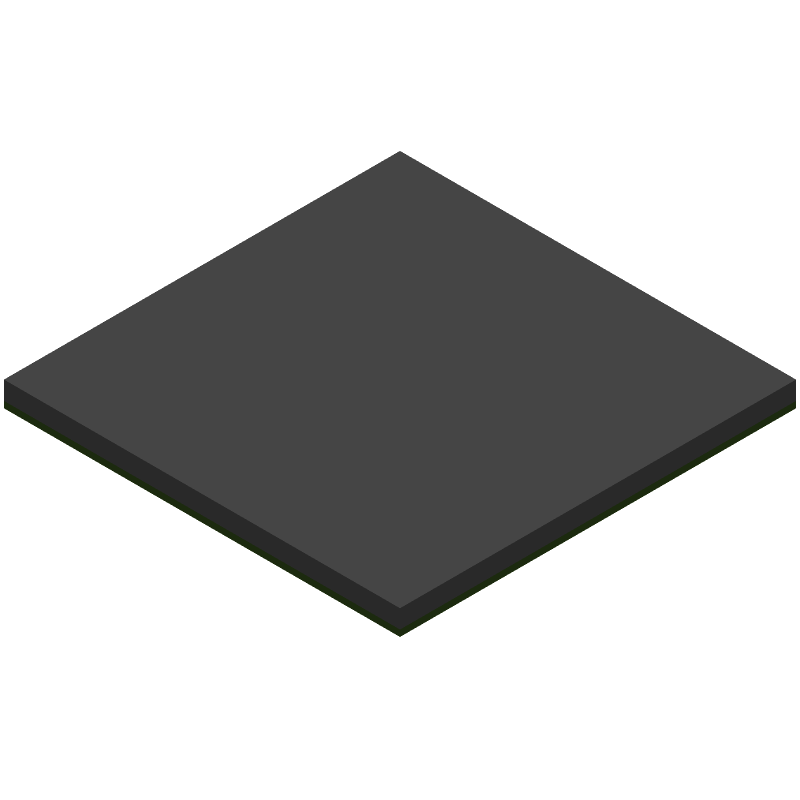

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AM3359BZCZA80 by Texas Instruments
Results Overview of AM3359BZCZA80 by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Computing and Data Storage
Healthcare
AM3359BZCZA80 Information
AM3359BZCZA80 by Texas Instruments is a Microprocessor.
Microprocessors are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for AM3359BZCZA80
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AH1914
|
Newark | Ic Mpu, Sitara Cortex A8, 800Mhz, 324Bga, Product Range:Sitara Family Am335X Series Microprocessors, Mpu Core Size:32Bit, Program Memory Size:-, No. Of Pins:324Pins, Mpu Case Style:Nfbga, Supply Voltage Min:912Mv, Supply Voltage Rohs Compliant: Yes |Texas Instruments AM3359BZCZA80 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$23.2600 / $27.3200 | Buy Now |
|
DISTI #
296-36881-ND
|
DigiKey | IC MPU SITARA 800MHZ 324NFBGA Min Qty: 1 Lead time: 18 Weeks Container: Tray |
2086 In Stock |
|
$15.1970 / $23.1600 | Buy Now |
|
DISTI #
595-AM3359BZCZA80
|
Mouser Electronics | Microprocessors - MPU Sitara ARM Cortex-A8 MPU RoHS: Compliant | 319 |
|
$15.1900 / $23.1100 | Buy Now |
|
DISTI #
V99:2348_07230317
|
Arrow Electronics | MPU AM335x RISC 32bit 800MHz 1.8V/3.3V 324-Pin NFBGA Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Date Code: 2327 | Americas - 14 |
|
$15.1500 | Buy Now |
|
DISTI #
86310836
|
Verical | MPU AM335x RISC 32bit 800MHz 1.8V/3.3V 324-Pin NFBGA Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2327 | Americas - 14 |
|
$15.1500 | Buy Now |
|
|
Vyrian | Peripheral ICs | 883 |
|
RFQ | |
|
|
Win Source Electronics | IC MPU SITARA 800MHZ 324NFBGA | 3402 |
|
$14.8501 / $19.1812 | Buy Now |
Part Details for AM3359BZCZA80
AM3359BZCZA80 CAD Models
AM3359BZCZA80 Part Data Attributes
|
|
AM3359BZCZA80
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
AM3359BZCZA80
Texas Instruments
Sitara processor: Arm Cortex-A8, EtherCAT, 3D, PRU-ICSS, CAN 324-NFBGA -40 to 105
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | NFBGA-324 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 5A992.C | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Address Bus Width | 28 | |
| Bit Size | 32 | |
| Boundary Scan | YES | |
| Clock Frequency-Max | 26 MHz | |
| External Data Bus Width | 16 | |
| Format | FIXED POINT | |
| Integrated Cache | YES | |
| JESD-30 Code | S-PBGA-B324 | |
| JESD-609 Code | e1 | |
| Length | 15 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 3 | |
| Number of DMA Channels | 64 | |
| Number of Serial I/Os | 4 | |
| Number of Terminals | 324 | |
| On Chip Data RAM Width | 8 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFBGA | |
| Package Equivalence Code | BGA324,18X18,32 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (words) | 65536 | |
| Seated Height-Max | 1.4 mm | |
| Speed | 800 MHz | |
| Supply Current-Max | 400 mA | |
| Supply Voltage-Max | 1.326 V | |
| Supply Voltage-Min | 1.21 V | |
| Supply Voltage-Nom | 1.26 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 15 mm | |
| uPs/uCs/Peripheral ICs Type | MICROPROCESSOR, RISC |
