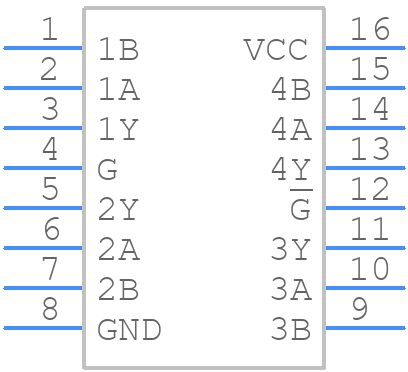

Part Symbol
-

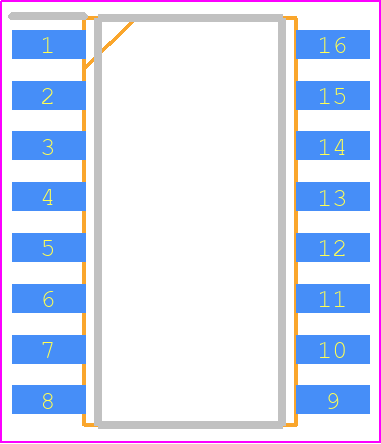

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AM26LV32INS by Texas Instruments
Results Overview of AM26LV32INS by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Automotive
Robotics and Drones
AM26LV32INS Information
AM26LV32INS by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| AM26LV32INSG4 | Texas Instruments | Low-Voltage High-Speed Quadruple Differential Line Receiver 16-SO -40 to 85 | |
| AM26LV32INSR | Texas Instruments | Low-Voltage High-Speed Quadruple Differential Line Receiver 16-SO -40 to 85 | |
| AM26LV32INS | Texas Instruments | Low-Voltage High-Speed Quadruple Differential Line Receiver 16-SO -40 to 85 |
Price & Stock for AM26LV32INS
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-49547-ND
|
DigiKey | IC TRANSCEIVER 0/4 16SO Min Qty: 1 Lead time: 20 Weeks Container: Tube |
300 In Stock |
|
$1.3955 / $2.4300 | Buy Now |
|
|
Vyrian | Interface ICs | 151 |
|
RFQ | |
|
|
Win Source Electronics | IC RECEIVER 0/4 16SO / 0/4 Receiver RS422, RS485 16-SO | 10375 |
|
$1.0430 / $1.5650 | Buy Now |
Part Details for AM26LV32INS
AM26LV32INS CAD Models
AM26LV32INS Part Data Attributes
|
|
AM26LV32INS
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
AM26LV32INS
Texas Instruments
Low-Voltage High-Speed Quadruple Differential Line Receiver 16-SOP -40 to 85
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| High Level Input Current-Max | 0.00001 A | |
| Input Characteristics | DIFFERENTIAL SCHMITT TRIGGER | |
| Interface IC Type | LINE RECEIVER | |
| Interface Standard | EIA-422-B; TIA-422-B; V.11 | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 10.2 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 4 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | DIFFERENTIAL | |
| Output Low Current-Max | 0.005 A | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 20 ns | |
| Receiver Number of Bits | 4 | |
| Seated Height-Max | 2 mm | |
| Supply Current-Max | 17 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Supply Voltage1-Max | 3.6 V | |
| Supply Voltage1-Min | 3 V | |
| Supply Voltage1-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 5.3 mm |
