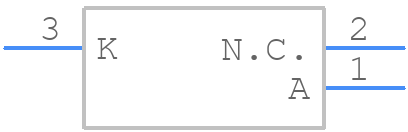

Part Symbol
-
Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AM23SGC-F by Kingbright
Results Overview of AM23SGC-F by Kingbright
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
AM23SGC-F Information
AM23SGC-F by Kingbright is a Visible LED.
Visible LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LM2917M-8 | Texas Instruments | Frequency to Voltage Converter 8-SOIC -40 to 85 | |
| LM2917MX/NOPB | Texas Instruments | Frequency to Voltage Converter 14-SOIC -40 to 85 | |
| LM2917N-8/NOPB | Texas Instruments | Frequency to Voltage Converter 8-PDIP -40 to 85 |
Price & Stock for AM23SGC-F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
754-1636-1-ND
|
DigiKey | LED GREEN CLEAR SOT23-3 SMD Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
9914 In Stock |
|
$0.1325 / $0.4800 | Buy Now |
|
DISTI #
604-AM23SGC-F
|
Mouser Electronics | Single Color LEDs GREEN WATER CLEAR RoHS: Compliant | 5693 |
|
$0.1280 / $0.4800 | Buy Now |
|
|
Bristol Electronics | 6488 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 7 | 5656 |
|
$0.1097 / $0.7313 | Buy Now |
|
|
Quest Components | SURFACE-MOUNT/AXIAL LED LAMP,GREEN,WATER CLEAR,LED-8D | 5190 |
|
$0.2258 / $0.6450 | Buy Now |
|
|
Quest Components | SURFACE-MOUNT/AXIAL LED LAMP,GREEN,WATER CLEAR,LED-8D | 3189 |
|
$0.1165 / $0.2688 | Buy Now |
|
|
Quest Components | SURFACE-MOUNT/AXIAL LED LAMP,GREEN,WATER CLEAR,LED-8D | 1946 |
|
$0.1572 / $0.7860 | Buy Now |
|
|
Quest Components | SURFACE-MOUNT/AXIAL LED LAMP,GREEN,WATER CLEAR,LED-8D | 800 |
|
$0.1950 / $0.9750 | Buy Now |
|
|
Quest Components | SURFACE-MOUNT/AXIAL LED LAMP,GREEN,WATER CLEAR,LED-8D | 392 |
|
$0.2688 / $0.8960 | Buy Now |
|
DISTI #
AM23SGC-F
|
TTI | Single Color LEDs GREEN WATER CLEAR RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel |
Americas - 22000 In Stock |
|
$0.1320 / $0.1680 | Buy Now |
Part Details for AM23SGC-F
AM23SGC-F CAD Models
AM23SGC-F Part Data Attributes
|
|
AM23SGC-F
Kingbright
Buy Now
Datasheet
|
Compare Parts:
AM23SGC-F
Kingbright
Single Color LED, Super Bright Green, Water Clear, 3mm, ROHS COMPLIANT, SOT-23, SMT, 3 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KINGBRIGHT ELECTRONIC CO LTD | |
| Package Description | SOT-23, 3 PIN | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.20.00 | |
| Samacsys Manufacturer | Kingbright | |
| Additional Feature | HIGH RELIABILITY | |
| Color | SUPER BRIGHT GREEN | |
| Color@Wavelength | Green | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.025 A | |
| Forward Voltage-Max | 2.5 V | |
| Lens Type | WATER CLEAR | |
| Luminous Intensity-Nom | 15.0 mcd | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | SINGLE COLOR LED | |
| Overall Height | 0.95 mm | |
| Packing Method | TR | |
| Peak Wavelength | 565 nm | |
| Reverse Voltage-Max | 5 V | |
| Shape | RECTANGULAR | |
| Size | 3 mm | |
| Surface Mount | YES | |
| Viewing Angle | 140 deg |
AM23SGC-F Frequently Asked Questions (FAQ)
-
The recommended storage temperature for AM23SGC-F is -20°C to 30°C (-4°F to 86°F) with a relative humidity of 60% or less.
-
Yes, the AM23SGC-F is suitable for outdoor applications, but it's recommended to use a suitable enclosure or coating to protect it from environmental factors like moisture, UV, and extreme temperatures.
-
The maximum forward current for AM23SGC-F is 30mA. Exceeding this current may reduce the LED's lifespan or cause damage.
-
Yes, the AM23SGC-F is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium above the allowed limits.
-
The typical viewing angle for AM23SGC-F is 120°, which means the LED's brightness and color appearance remain relatively consistent within this angle.
