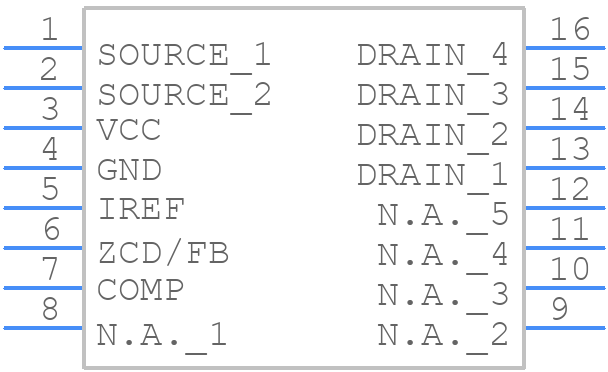

Part Symbol
-

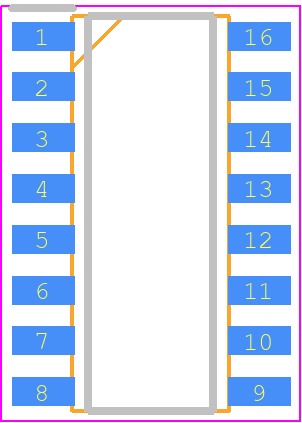

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ALTAIR04-900 by STMicroelectronics
Results Overview of ALTAIR04-900 by STMicroelectronics
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Computing and Data Storage
ALTAIR04-900 Information
ALTAIR04-900 by STMicroelectronics is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ALTAIR04-900
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
79X6087
|
Newark | Power Conversion |Stmicroelectronics ALTAIR04-900 RoHS: Not Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
497-16143-5-ND
|
DigiKey | IC OFFLINE SWITCH FLYBACK 16SO Min Qty: 1 Lead time: 18 Weeks Container: Tube |
35 In Stock |
|
$0.5367 / $1.1400 | Buy Now |
|
DISTI #
ALTAIR04-900
|
Avnet Americas | Module DC-DC 1-OUT 16-Pin SOIC N Tube - Rail/Tube (Alt: ALTAIR04-900) RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 18 Weeks, 0 Days Container: Tube | 0 |
|
$0.5050 / $0.5155 | Buy Now |
|
DISTI #
511-ALTAIR04-900
|
Mouser Electronics | AC/DC Converters Off-line all-primary-sensing switching regulator RoHS: Compliant | 966 |
|
$0.5260 / $1.1400 | Buy Now |
|
|
STMicroelectronics | Off-line all-primary-sensing switching regulator RoHS: Compliant Min Qty: 1 | 966 |
|
$0.5900 / $1.1200 | Buy Now |
|
|
Future Electronics | SO 16 .15 TO JEDEC MS-012 RoHS: Compliant pbFree: Yes Min Qty: 2000 Package Multiple: 1000 Lead time: 20 Weeks | 0 |
|
$0.5000 / $0.5170 | Buy Now |
|
|
Bristol Electronics | 47861 |
|
RFQ | ||
|
DISTI #
ALTAIR04-900
|
TME | IC: driver, DC/DC switcher,PWM controller, SO16, 900V, 500kHz Min Qty: 1 | 0 |
|
$0.8100 / $1.0800 | RFQ |
|
DISTI #
ALTAIR04-900
|
Avnet Silica | Module DCDC 1OUT 16Pin SOIC N Tube (Alt: ALTAIR04-900) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 17 Weeks, 0 Days | Silica - 3000 |
|
Buy Now | |
|
DISTI #
ALTAIR04-900
|
EBV Elektronik | Module DCDC 1OUT 16Pin SOIC N Tube (Alt: ALTAIR04-900) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 19 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for ALTAIR04-900
ALTAIR04-900 CAD Models
ALTAIR04-900 Part Data Attributes
|
|
ALTAIR04-900
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
ALTAIR04-900
STMicroelectronics
Off-line all-primary-sensing switching regulator
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Moisture Sensitivity Level | 3 | |
| Number of Terminals | 16 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
