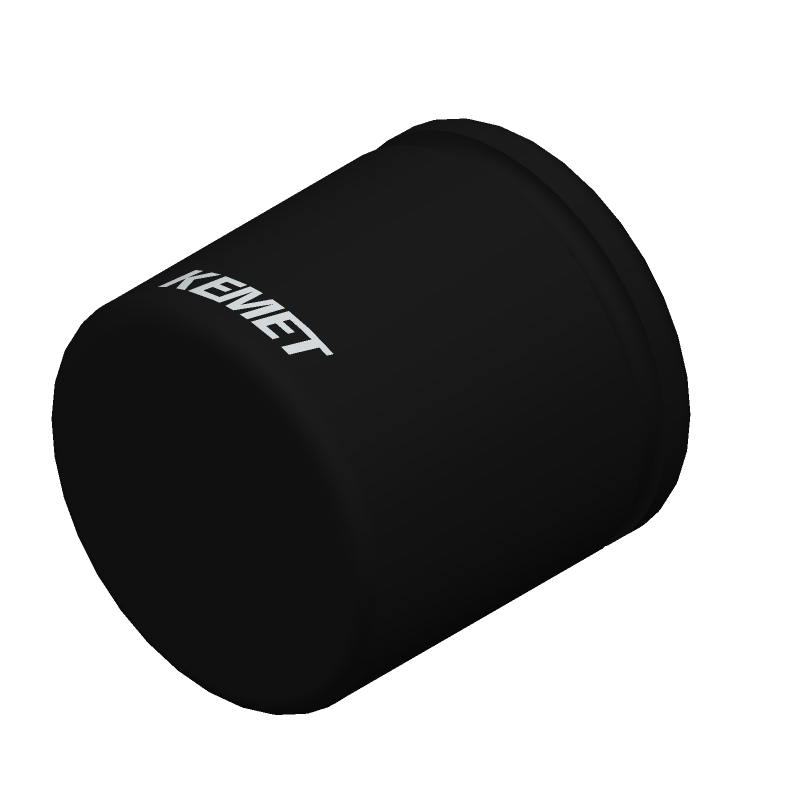

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ALC10A223ED040 by KEMET Corporation
Results Overview of ALC10A223ED040 by KEMET Corporation
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
ALC10A223ED040 Information
ALC10A223ED040 by KEMET Corporation is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for ALC10A223ED040
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
85AC3628
|
Newark | .022Uf 40.0V |Kemet ALC10A223ED040 RoHS: Not Compliant Min Qty: 72 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$8.8000 / $10.5500 | Buy Now |
|
DISTI #
ALC10A223ED040
|
Avnet Abacus | Aluminum Electrolytic Capacitor 22000 uF 40 V 20 SnapIn (Alt: ALC10A223ED040) RoHS: Compliant Min Qty: 1008 Package Multiple: 72 Lead time: 25 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for ALC10A223ED040
ALC10A223ED040 CAD Models
ALC10A223ED040 Part Data Attributes
|
|
ALC10A223ED040
KEMET Corporation
Buy Now
Datasheet
|
Compare Parts:
ALC10A223ED040
KEMET Corporation
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 40V, 20% +Tol, 20% -Tol, 22000uF, Through Hole Mount, CAN, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KEMET ELECTRONICS CORP | |
| Package Description | , | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.22.00.55 | |
| Samacsys Manufacturer | KEMET | |
| Capacitance | 22000 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Diameter | 40 mm | |
| Dielectric Material | ALUMINUM (WET) | |
| ESR | 62 mΩ | |
| Leakage Current | 5.28 mA | |
| Length | 40 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | CYLINDRICAL PACKAGE | |
| Package Style | Snap-in | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 40 V | |
| Reference Standard | IEC60384-4 | |
| Ripple Current | 5810 mA | |
| Surface Mount | NO | |
| Terminal Pitch | 10 mm | |
| Terminal Shape | SNAP-IN |
Alternate Parts for ALC10A223ED040
This table gives cross-reference parts and alternative options found for ALC10A223ED040. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ALC10A223ED040, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ALC10D223ED040 | KEMET Corporation | $9.1703 | Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 40V, 20% +Tol, 20% -Tol, 22000uF, Through Hole Mount | ALC10A223ED040 vs ALC10D223ED040 |
| ALC10C223ED040 | KEMET Corporation | $9.3156 | Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 40V, 20% +Tol, 20% -Tol, 22000uF, Through Hole Mount | ALC10A223ED040 vs ALC10C223ED040 |
| ALC10F223ED040 | KEMET Corporation | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 40V, 20% +Tol, 20% -Tol, 22000uF | ALC10A223ED040 vs ALC10F223ED040 |
| ALC10K223ED040 | KEMET Corporation | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 40V, 20% +Tol, 20% -Tol, 22000uF, | ALC10A223ED040 vs ALC10K223ED040 |
| ALC10G223ED040 | KEMET Corporation | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 40V, 20% +Tol, 20% -Tol, 22000uF, Through Hole Mount | ALC10A223ED040 vs ALC10G223ED040 |
