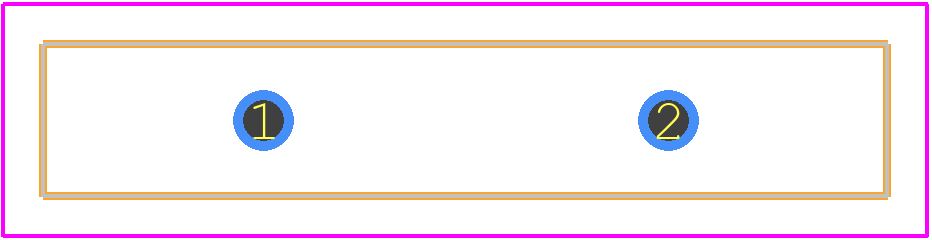

Footprint
-

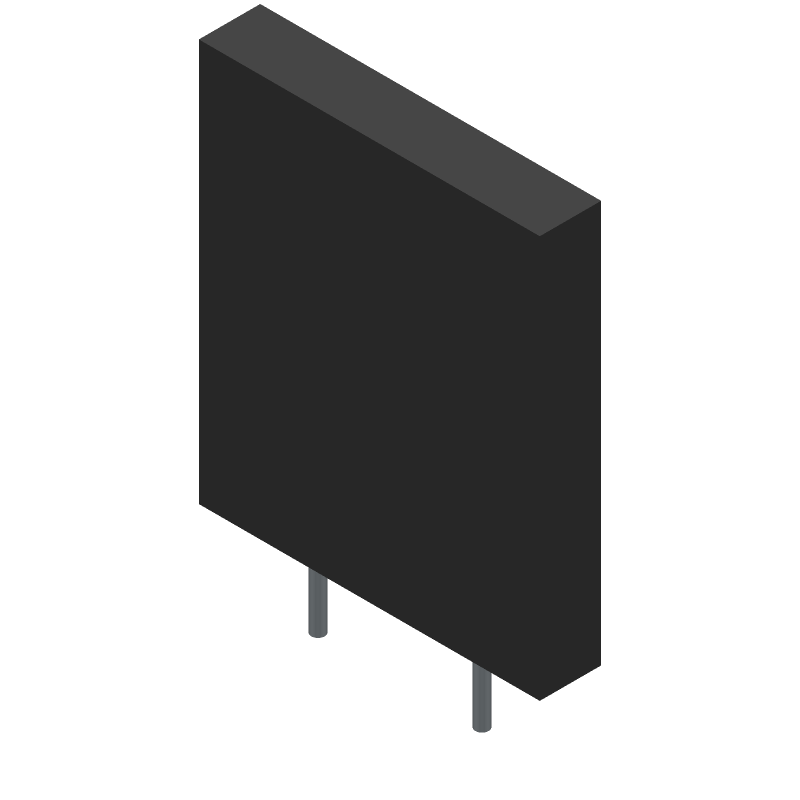

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AHEF750 by TE Connectivity
Results Overview of AHEF750 by TE Connectivity
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Telecommunications
AHEF750 Information
AHEF750 by TE Connectivity is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for AHEF750
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
ComSIT USA | PPTC RESETTABLE FUSE PTC Resettable Fuse, 32V, 0.0074ohm, Through Hole Mount ECCN: EAR99 RoHS: Compliant |
|
|
RFQ |
Part Details for AHEF750
AHEF750 CAD Models
AHEF750 Part Data Attributes
|
|
AHEF750
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
AHEF750
TE Connectivity
PTC Resettable Fuse, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Package Description | RADIAL LEADED, ROHS COMPLIANT | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.40.80.70 | |
| Samacsys Manufacturer | TE Connectivity | |
| Additional Feature | RESISTANCE RANGE(MIN-MAX): 0.0074-0.0147 | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 24.9 mm | |
| Package Length | 21.1 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Width | 3.8 mm | |
| Packing Method | BULK | |
| Rated Power Dissipation (P) | 6.5 W | |
| Resistor Type | PTC RESETTABLE FUSE | |
| Surface Mount | NO | |
| Terminal Placement | RADIAL | |
| Terminal Shape | WIRE | |
| Thermistor Application | TEMPERATURE SENSING | |
| Working Voltage | 32 V |
