Relays / Power/Signal Relays / AGQ200S24
Datasheets

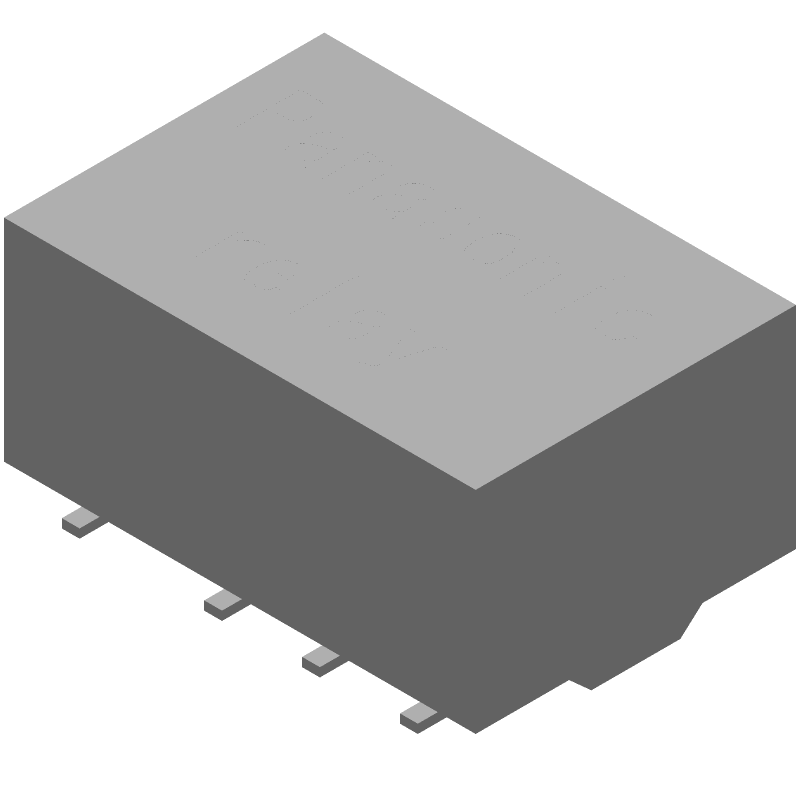

AGQ200S24 by: Panasonic Electronic Components

Power/Signal Relay, 2 Form C, DPDT, Momentary, 0.01A (Coil), 24VDC (Coil), 230mW (Coil), 2A (Contact), 110VDC (Contact), DC Input, Random, AC/DC Output, Surface Mount-Straight, ROHS COMPLIANT

Part Details for AGQ200S24 by Panasonic Electronic Components

Results Overview of AGQ200S24 by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Security and Surveillance Audio and Video Systems Transportation and Logistics Renewable Energy Automotive Robotics and Drones

AGQ200S24 Information

AGQ200S24 by Panasonic Electronic Components is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Price & Stock for AGQ200S24

Part # Distributor Description Stock Price Buy
DISTI # 10C3355
Newark Signal Relay, Dpdt, 24Vdc, 1A, Smd, Coil Voltage:24Vdc, Contact Configuration:Dpdt, Contact Current:1A, Product Range:Agq Series, Relay Mounting:Surface Mount, Coil Type:Dc, Relay Terminals:Through Hole, Contact Voltage Vac:125V Rohs Compliant: Yes |Panasonic AGQ200S24 RoHS: Compliant Min Qty: 50 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 50 $5.1800
  • 100 $4.6100
  • 500 $4.2000
  • 1,000 $3.7100
  • 2,500 $3.4500
$3.4500 / $5.1800 Buy Now
DISTI # 255-1364-5-ND
DigiKey RELAY TELECOM DPDT 2A 24V Min Qty: 1 Lead time: 18 Weeks Container: Tube 986
In Stock
  • 1 $5.8800
  • 10 $5.2410
  • 25 $5.0052
  • 50 $4.8338
  • 100 $4.6680
  • 250 $4.4574
  • 500 $4.3043
  • 1,000 $4.1563
$4.1563 / $5.8800 Buy Now
DISTI # AGQ200S24
Avnet Americas LOW SIGNAL RELAYS - PCB 1A 24VDC DPDT NO - Rail/Tube (Alt: AGQ200S24) RoHS: Compliant Min Qty: 50 Package Multiple: 1 Lead time: 18 Weeks, 0 Days Container: Tube 0
  • 50 $3.2310
  • 60 $3.1857
  • 110 $3.1341
  • 250 $3.0822
  • 500 $3.0303
$3.0303 / $3.2310 Buy Now
DISTI # 769-AGQ200S24
Mouser Electronics Low Signal Relays - PCB 1A 24VDC DPDT NON-LATCHING SMD RoHS: Compliant 1091
  • 1 $5.0500
  • 10 $4.8200
  • 100 $4.7100
  • 250 $4.5500
  • 500 $4.2900
  • 1,000 $3.7900
  • 2,500 $2.5300
$2.5300 / $5.0500 Buy Now
DISTI # 74612050
RS Signal RelayGQ Relay Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk 25
  • 1 $5.1000
  • 10 $4.9500
  • 25 $4.8500
  • 50 $4.7400
  • 100 $4.6400
$4.6400 / $5.1000 Buy Now
Onlinecomponents.com Signal Relay 24VDC 2A DPDT( (10.6mm 7.2mm 5.4mm)) SMD RoHS: Compliant 426 In Stock
2000 On Order
  • 25 $3.2000
  • 250 $1.7040
  • 500 $1.6960
  • 1,000 $1.6870
  • 3,000 $1.6790
  • 5,000 $1.5900
  • 8,000 $1.5820
  • 10,000 $1.5740
$1.5740 / $3.2000 Buy Now
DISTI # 51559207
Verical Signal Relay 24VDC 2A DPDT( (10.6mm 7.2mm 5.4mm)) SMD RoHS: Compliant Min Qty: 25 Package Multiple: 25 Date Code: 1950 Americas - 400
  • 25 $4.1600
  • 250 $2.2100
  • 1,000 $2.1970
  • 3,000 $2.1840
$2.1840 / $4.1600 Buy Now
DISTI # AGQ200S24
TTI Low Signal Relays - PCB 1A 24VDC DPDT NON-LATCHING SMD RoHS: Compliant pbFree: Pb-Free Min Qty: 50 Package Multiple: 50 Container: Tube Americas - 50
In Stock
  • 50 $2.0600
  • 100 $1.8200
  • 250 $1.7700
  • 500 $1.6400
  • 1,000 $1.6300
$1.6300 / $2.0600 Buy Now
DISTI # 000000000000189419
Sager RELAY Min Qty: 50 0
  • 50 $3.9800
  • 100 $3.8100
  • 200 $3.7000
  • 400 $3.6000
  • 750 $3.4500
$3.4500 / $3.9800 Buy Now
Master Electronics Signal Relay 24VDC 2A DPDT( (10.6mm 7.2mm 5.4mm)) SMD RoHS: Compliant 426 In Stock
2000 On Order
  • 25 $3.2000
  • 250 $1.7040
  • 500 $1.6960
  • 1,000 $1.6870
  • 3,000 $1.6790
  • 5,000 $1.5900
  • 8,000 $1.5820
  • 10,000 $1.5740
$1.5740 / $3.2000 Buy Now
Vyrian Relays 866
RFQ

Part Details for AGQ200S24

AGQ200S24 Part Data Attributes

Parametric Data
AGQ200S24 Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
AGQ200S24 Panasonic Electronic Components Power/Signal Relay, 2 Form C, DPDT, Momentary, 0.01A (Coil), 24VDC (Coil), 230mW (Coil), 2A (Contact), 110VDC (Contact), DC Input, Random, AC/DC Output, Surface Mount-Straight, ROHS COMPLIANT
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PANASONIC CORP
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.49.00.50
Factory Lead Time 18 Weeks
Samacsys Manufacturer Panasonic
Body Breadth 7.2 mm
Body Height 5.4 mm
Body Length or Diameter 10.6 mm
Coil Current(DC)-Max 0.01 A
Coil Operate Voltage(DC) 18 V
Coil Power 230 mW
Coil Release Voltage(DC) 2.4 V
Coil Resistance 2504 Ω
Coil Voltage(DC)-Max 24 V
Coil Voltage-Nom 24 V
Coil/Input Supply Type DC
Contact (AC) Max Power Rating R Load 37.5VA@125VAC
Contact (AC) Max Rating R Load 2A@125VAC
Contact Current(AC)-Max 2 A
Contact Current(DC)-Max 2 A
Contact (DC) Max Power Rating R Load 60W@110VDC
Contact (DC) Max Rating R Load 2A@110VDC
Contact Resistance 100 mΩ
Contact Voltage(AC)-Max 125 V
Contact Voltage(DC)-Max 110 V
Contact/Output Supply Type AC/DC
Electrical Life 100000 Cycle(s)
End Contact Material Silver Palladium
End Contact Plating GOLD
Input Switching Control Type Random
Insulation Resistance 1000000000 Ω
JESD-609 Code e4
Mounting Feature SURFACE MOUNT-STRAIGHT
Number of Terminals 8
Operate Time 4 ms
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Packing Method TUBE
Physical Dimension 10.6mm x 7.2mm x 5.4mm
Reference Standard BSI; CSA; UL
Relay Action MOMENTARY
Relay Form 2 FORM C
Relay Function DPDT
Relay Type POWER/SIGNAL RELAY
Release Time 4 ms
Sealing WATER PROOF
Surface Mount NO
Terminal Finish Silver/Palladium (Ag/Pd)
Termination Type SOLDER

Alternate Parts for AGQ200S24

This table gives cross-reference parts and alternative options found for AGQ200S24. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AGQ200S24, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
UD2-1.5SNUN-R TOKIN Corporation Check for Price Power/Signal Relay, DPDT, Latched, 0.07A (Coil), 1.5VDC (Coil), 100mW (Coil), 1A (Contact), 220VDC (Contact), DC Input, AC/DC Output, Surface Mount-Straight AGQ200S24 vs UD2-1.5SNUN-R
TX2-L-12V-1 Panasonic Electronic Components $3.8249 Power/Signal Relay, 2 Form C, DPDT, Latched, 0.008A (Coil), 12VDC (Coil), 100mW (Coil), 1A (Contact), 220VDC (Contact), DC Input, Random, DC Output, Through Hole-Straight Mount, ROHS COMPLIANT AGQ200S24 vs TX2-L-12V-1
TX2SS-L-6V-Z-1 Panasonic Electronic Components Check for Price Power/Signal Relay, DPDT, Latched, 0.017A (Coil), 6VDC (Coil), 100mW (Coil), 1A (Contact), 220VDC (Contact), DC Input, DC Output, Surface Mount-Straight, ROHS COMPLIANT AGQ200S24 vs TX2SS-L-6V-Z-1
TX2SA-L-6V-1-X Panasonic Electronic Components Check for Price Power/Signal Relay, 2 Form C, DPDT, Latched, 0.017A (Coil), 6VDC (Coil), 100mW (Coil), 1A (Contact), 220VDC (Contact), DC Input, Random, DC Output, Surface Mount-Straight, ROHS COMPLIANT AGQ200S24 vs TX2SA-L-6V-1-X
TX2SA-L-9V-1 Panasonic Electronic Components Check for Price Power/Signal Relay, 2 Form C, DPDT, Latched, 0.011A (Coil), 9VDC (Coil), 100mW (Coil), 1A (Contact), 220VDC (Contact), DC Input, Random, DC Output, Surface Mount-Straight, ROHS COMPLIANT AGQ200S24 vs TX2SA-L-9V-1
TX2SS-L-12V Panasonic Electronic Components $3.8803 Power/Signal Relay, 2 Form C, DPDT, Latched, 0.008A (Coil), 12VDC (Coil), 100mW (Coil), 2A (Contact), 220VDC (Contact), DC Input, Random, DC Output, Surface Mount-Straight, ROHS COMPLIANT AGQ200S24 vs TX2SS-L-12V
TX2SS-L-24V-1-Z Panasonic Electronic Components Check for Price Power/Signal Relay, 2 Form C, DPDT, Latched, 0.004A (Coil), 24VDC (Coil), 100mW (Coil), 1A (Contact), 220VDC (Contact), DC Input, Random, DC Output, Surface Mount-Straight, ROHS COMPLIANT AGQ200S24 vs TX2SS-L-24V-1-Z
TX2SS-L-3V-1 Panasonic Electronic Components $3.9470 Power/Signal Relay, 2 Form C, DPDT, Latched, 0.033A (Coil), 3VDC (Coil), 100mW (Coil), 1A (Contact), 220VDC (Contact), DC Input, Random, DC Output, Surface Mount-Straight, ROHS COMPLIANT AGQ200S24 vs TX2SS-L-3V-1
G6K-2PDC6 OMRON Electronic Components LLC Check for Price POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.018A (COIL), 6VDC (COIL), 100mW (COIL), 1A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT AGQ200S24 vs G6K-2PDC6
G6K-2GDC9 OMRON Electronic Components LLC Check for Price POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.011A (COIL), 9VDC (COIL), 100mW (COIL), 1A (CONTACT), 30VDC (CONTACT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT AGQ200S24 vs G6K-2GDC9

AGQ200S24 Related Parts

AGQ200S24 Frequently Asked Questions (FAQ)

  • Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.

  • To mitigate inrush current, consider adding a soft-start circuit or an NTC thermistor in series with the relay coil to limit the inrush current. Additionally, ensure the power supply can handle the high inrush current.

  • The maximum allowable voltage drop across the relay contacts is typically around 100-200 mV. Exceeding this value may lead to contact degradation or failure. Ensure the relay is operated within the specified voltage range.

  • While the relay is rated for operation up to 85°C, it's essential to consider the derating curves and thermal management strategies to ensure reliable operation in high-temperature environments.

  • Follow proper PCB design practices, such as using a solid ground plane, minimizing loop areas, and using shielding or filtering components as needed. Additionally, consider conducting EMC testing to ensure compliance with relevant standards.
