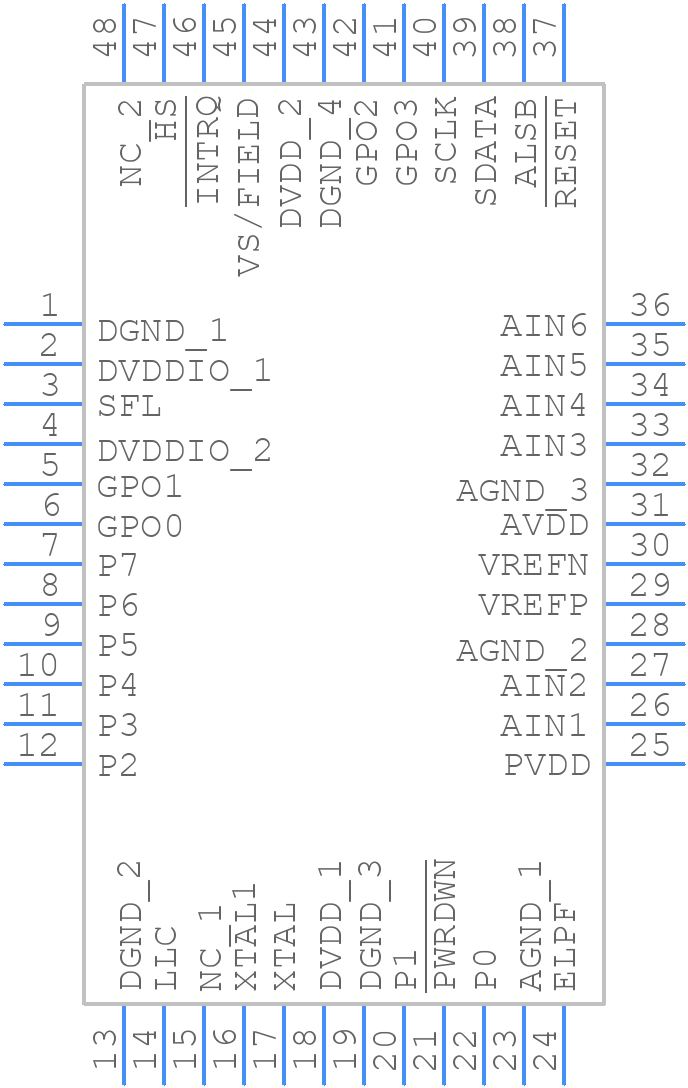

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADV7180WBST48Z by Analog Devices Inc
Results Overview of ADV7180WBST48Z by Analog Devices Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for ADV7180WBST48Z
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
25AM3298
|
Newark | Video Decoder, -40 To 85Deg C, Lqfp-48 Rohs Compliant: Yes |Analog Devices ADV7180WBST48Z RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$20.0600 / $26.1000 | Buy Now |
|
DISTI #
505-ADV7180WBST48Z-ND
|
DigiKey | IC VIDEO DECODER 48LQFP Min Qty: 1 Lead time: 10 Weeks Container: Tray |
54 In Stock |
|
$11.5250 / $20.0900 | Buy Now |
|
DISTI #
584-ADV7180WBST48Z
|
Mouser Electronics | Video ICs 10-Bit, 4 Oversampling SDTV Video Decoder RoHS: Compliant | 52 |
|
$11.5200 / $20.0900 | Buy Now |
|
DISTI #
V99:2348_06224360
|
Arrow Electronics | Video Decoder 1 ADC 10bit Automotive AEC-Q100 48-Pin LQFP Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 1726 | Americas - 33 |
|
$2.2560 | Buy Now |
|
|
Analog Devices Inc | 10-bit 4x Oversampling SDTV De Package Multiple: 1 | 3047 |
|
$7.3300 / $20.0900 | Buy Now |
|
DISTI #
26619095
|
Verical | Video Decoder 1 ADC 10bit Automotive AEC-Q100 48-Pin LQFP Tray RoHS: Compliant Min Qty: 54 Package Multiple: 54 | Americas - 3024 |
|
$11.5975 | Buy Now |
|
DISTI #
29518145
|
Verical | Video Decoder 1 ADC 10bit Automotive AEC-Q100 48-Pin LQFP Tray RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 1726 | Americas - 33 |
|
$2.2560 | Buy Now |
|
|
Bristol Electronics | 144 |
|
RFQ | ||
|
|
Rochester Electronics | 10-Bit, 4X Oversampling SDTV Video Decoder RoHS: Compliant Status: Active Min Qty: 1 | 26 |
|
$9.7000 / $12.1300 | Buy Now |
|
DISTI #
ADV7180WBST48Z
|
Richardson RFPD | INTERFACE - AUDIO/VIDEO RoHS: Compliant Min Qty: 54 | 0 |
|
$12.0600 / $12.8800 | Buy Now |
Part Details for ADV7180WBST48Z
ADV7180WBST48Z CAD Models
ADV7180WBST48Z Part Data Attributes
|
|
ADV7180WBST48Z
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADV7180WBST48Z
Analog Devices Inc
10-Bit, 4x Oversampling SDTV Video Decoder
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QFP | |
| Package Description | LQFP-48 | |
| Pin Count | 48 | |
| Manufacturer Package Code | ST-48 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Consumer IC Type | COLOR SIGNAL DECODER | |
| JESD-30 Code | S-PQFP-G48 | |
| JESD-609 Code | e3 | |
| Length | 7 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 48 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP48,.35SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.6 mm | |
| Supply Current-Max | 85 mA | |
| Supply Voltage-Max (Vsup) | 2 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7 mm |
ADV7180WBST48Z Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply power to the analog supply (VAA) first, followed by the digital supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
-
The ADV7180 can be configured for different video input formats using the I2C interface. The specific register settings for each format are provided in the datasheet. For example, to configure the ADV7180 for 720p60, set register 0x10 to 0x04 and register 0x11 to 0x03.
-
The ADV7180 supports clock frequencies up to 75 MHz. However, the maximum clock frequency may vary depending on the specific application and system requirements.
-
To troubleshoot issues with the ADV7180, first check the power-up sequence and ensure that the analog and digital supplies are powered up correctly. Then, verify that the I2C interface is functioning correctly and that the correct register settings are being written. Use a logic analyzer or oscilloscope to verify the clock and video signals.
-
Yes, the ADV7180 can be used in an MCM or SoC design. However, careful attention must be paid to the power supply and clock distribution to ensure that the ADV7180 operates correctly.
