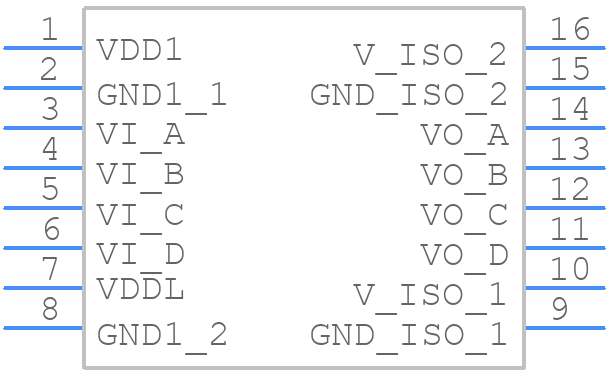

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADUM5400CRWZ by Analog Devices Inc
Results Overview of ADUM5400CRWZ by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADUM5400CRWZ Information
ADUM5400CRWZ by Analog Devices Inc is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ADUM5400CRWZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AK9050
|
Newark | Digital Isolator, 4Ch, -40 To 105Deg C, No. Of Channels:4Channels, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V, Ic Case/Package:Wsoic, No. Of Pins:16Pins, Data Rate:25Mbps, Input Level:-, Output Level:-, Product Range:- Rohs Compliant: Yes |Analog Devices ADUM5400CRWZ RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 72 |
|
$8.5700 / $14.9400 | Buy Now |
|
DISTI #
584-ADUM5400CRWZ
|
Mouser Electronics | Digital Isolators QUAD-CHANNEL DIGITAL ISOLATORS RoHS: Compliant | 160 |
|
$8.5700 / $15.1500 | Buy Now |
|
|
Analog Devices Inc | QUAD-CHANNEL DIGITAL ISOLATORS Package Multiple: 47 | 23933 |
|
$6.5200 / $16.0200 | Buy Now |
|
DISTI #
26619015
|
Verical | Digital Isolator 4-CH 25Mbps 16-Pin SOIC W Tube RoHS: Compliant Min Qty: 47 Package Multiple: 47 | Americas - 23923 |
|
$8.4848 | Buy Now |
|
|
Rochester Electronics | Quad-Channel Isolator with Integrated DC-to-DC Converter (4/0 channel directionality) RoHS: Compliant Status: Active Min Qty: 1 | 2868 |
|
$7.2200 / $9.0300 | Buy Now |
Part Details for ADUM5400CRWZ
ADUM5400CRWZ CAD Models
ADUM5400CRWZ Part Data Attributes
|
|
ADUM5400CRWZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADUM5400CRWZ
Analog Devices Inc
Quad-Channel Isolator with Integrated DC-to-DC Converter (4/0 channel directionality)
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | SOIC-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | RW-16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8543.70.99.60 | |
| Samacsys Manufacturer | Analog Devices | |
| Interface IC Type | INTERFACE CIRCUIT | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 10.3 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.65 mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm |
ADUM5400CRWZ Frequently Asked Questions (FAQ)
-
The ADUM5400CRWZ can support data rates up to 150 Mbps, making it suitable for high-speed digital isolators.
-
The ADUM5400CRWZ has a built-in power-up and power-down sequencing circuitry that ensures proper sequencing of the VDD1 and VDD2 power supplies, eliminating the need for external sequencing components.
-
The typical propagation delay of the ADUM5400CRWZ is around 10 ns, making it suitable for high-speed digital isolator applications.
-
Yes, the ADUM5400CRWZ is compatible with both 3.3V and 5V logic levels, making it a versatile digital isolator for a wide range of applications.
-
The ADUM5400CRWZ has an isolation voltage rating of 2500 Vrms, providing a high degree of electrical isolation between the input and output sides.
