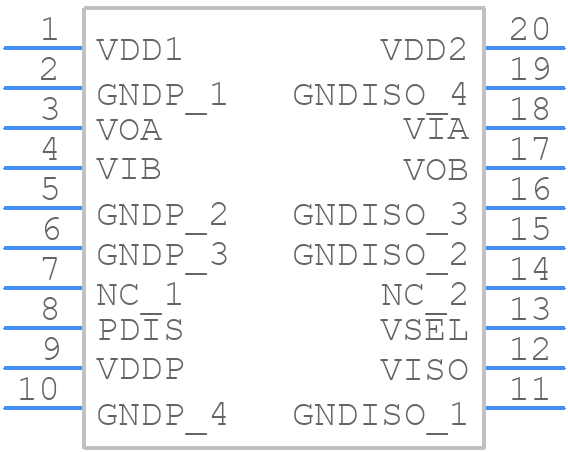

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADUM5211BRSZ by Analog Devices Inc
Results Overview of ADUM5211BRSZ by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
ADUM5211BRSZ Information
ADUM5211BRSZ by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADUM5211BRSZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK6001
|
Newark | Digital Isolator, 2Ch, -40 To 105Deg C, No. Of Channels:2Channels, Supply Voltage Min:3.135V, Supply Voltage Max:5.5V, Ic Case/Package:Ssop, No. Of Pins:20Pins, Data Rate:25Mbps, Input Level:Cmos, Output Level:Cmos, Product Range:-Rohs Compliant: Yes |Analog Devices ADUM5211BRSZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 56 |
|
$5.3500 / $10.4900 | Buy Now |
|
DISTI #
505-ADUM5211BRSZ-ND
|
DigiKey | DGTL ISOLTR 2.5KV 2CH GP 20-SSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
545 In Stock |
|
$5.0875 / $10.8100 | Buy Now |
|
DISTI #
584-ADUM5211BRSZ
|
Mouser Electronics | Digital Isolators 2-Ch Isolators w/ Int DC/DC converter RoHS: Compliant | 330 |
|
$5.2400 / $9.3000 | Buy Now |
|
|
Analog Devices Inc | 2-Ch Isolators w/ Int DC/DC co Package Multiple: 66 | 637 |
|
$3.8500 / $10.8100 | Buy Now |
|
DISTI #
35211572
|
Verical | Digital Isolator 2-CH 25Mbps 20-Pin SSOP Tube RoHS: Compliant Min Qty: 66 Package Multiple: 66 | Americas - 528 |
|
$5.1195 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 59 |
|
RFQ |
Part Details for ADUM5211BRSZ
ADUM5211BRSZ CAD Models
ADUM5211BRSZ Part Data Attributes
|
|
ADUM5211BRSZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADUM5211BRSZ
Analog Devices Inc
Dual-Channel Isolators with Integrated DC-to-DC Converter (1/1 Channel Directionality)
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | SSOP-20 | |
| Pin Count | 20 | |
| Manufacturer Package Code | RS-20 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8543.70.99.60 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 3.6 V | |
| Input Voltage-Min | 3 V | |
| Input Voltage-Nom | 3.3 V | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 7.2 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Nom | 3.3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP20,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2 mm | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Switching Frequency-Max | 125000 kHz | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5.3 mm |
ADUM5211BRSZ Frequently Asked Questions (FAQ)
-
The ADUM5211BRSZ can support data rates up to 150 Mbps, making it suitable for high-speed digital isolators.
-
The ADUM5211BRSZ has a built-in power-up and power-down sequencing circuit that ensures the output is in a high-impedance state during power-up and power-down, preventing unwanted output transitions.
-
The typical propagation delay of the ADUM5211BRSZ is around 10 ns, making it suitable for high-speed digital isolation applications.
-
Yes, the ADUM5211BRSZ is designed to operate in harsh industrial environments, with a wide operating temperature range of -40°C to 125°C and high immunity to electromagnetic interference (EMI).
-
The ADUM5211BRSZ provides electrical isolation through the use of Analog Devices' proprietary iCoupler technology, which uses a high-frequency oscillator and a transformer to transmit data across the isolation barrier.
