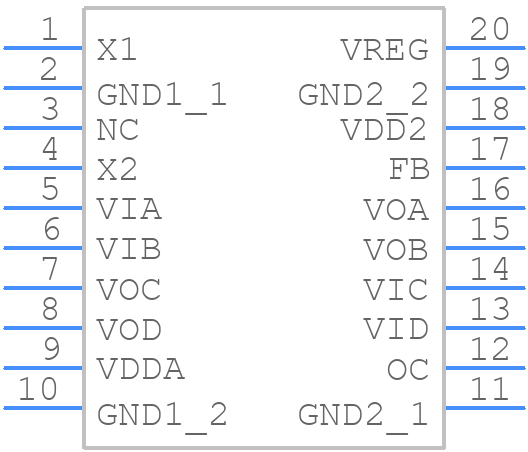

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADUM4472CRIZ by Analog Devices Inc
Results Overview of ADUM4472CRIZ by Analog Devices Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADUM4472CRIZ Information
ADUM4472CRIZ by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADUM4472CRIZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-ADUM4472CRIZ-ND
|
DigiKey | DGTL ISOLTR 5KV 4CH GP 20-SOIC Min Qty: 62 Lead time: 10 Weeks Container: Tube | Temporarily Out of Stock |
|
$9.3840 | Buy Now |
|
DISTI #
584-ADUM4472CRIZ
|
Mouser Electronics | Digital Isolators 5kV PWM Cont & Trans Driver w/ISO RoHS: Compliant | 57 |
|
$9.3800 / $17.4400 | Buy Now |
|
DISTI #
V99:2348_06223799
|
Arrow Electronics | Digital Isolator 4-CH 25Mbps 20-Pin SOIC W Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 1440 | Americas - 7 |
|
$1.7690 | Buy Now |
|
|
Analog Devices Inc | 5kV PWM Cont & Trans Driver w/ Package Multiple: 31 | 3038 |
|
$6.8600 / $11.9900 | Buy Now |
|
DISTI #
35211700
|
Verical | Digital Isolator 4-CH 25Mbps 20-Pin SOIC W Tube RoHS: Compliant Min Qty: 62 Package Multiple: 62 | Americas - 3038 |
|
$8.9425 | Buy Now |
|
DISTI #
25838758
|
Verical | Digital Isolator 4-CH 25Mbps 20-Pin SOIC W Tube RoHS: Compliant Min Qty: 4 Package Multiple: 1 Date Code: 1440 | Americas - 7 |
|
$1.7690 | Buy Now |
|
|
Bristol Electronics | 27 |
|
RFQ | ||
|
|
Quest Components | 21 |
|
$13.2608 / $16.1280 | Buy Now | |
|
|
Rochester Electronics | Isolated Switch Regulator with Quad-Channel Isolators (2/2 Channel Directionality) RoHS: Compliant Status: Active Min Qty: 1 | 31 |
|
$7.6100 / $9.5100 | Buy Now |
Part Details for ADUM4472CRIZ
ADUM4472CRIZ CAD Models
ADUM4472CRIZ Part Data Attributes
|
|
ADUM4472CRIZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADUM4472CRIZ
Analog Devices Inc
Isolated Switch Regulator with Quad-Channel Isolators (2/2 Channel Directionality)
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Pin Count | 20 | |
| Manufacturer Package Code | RI-20-1 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | ALSO WORKS WITH 5 V INPUT;VOUT=(3.3-24 VOLT) | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 3.6 V | |
| Input Voltage-Min | 3 V | |
| Input Voltage-Nom | 3.3 V | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 15.3 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP20,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 2.64 mm | |
| Surface Mount | YES | |
| Switching Frequency-Max | 515 kHz | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm |
