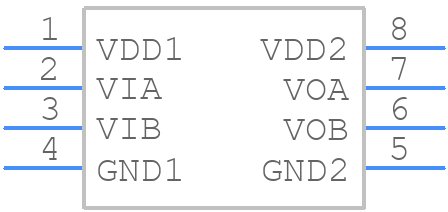

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADUM3220ARZ-RL7 by Analog Devices Inc
Results Overview of ADUM3220ARZ-RL7 by Analog Devices Inc
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADUM3220ARZ-RL7 Information
ADUM3220ARZ-RL7 by Analog Devices Inc is an MOSFET Driver.
MOSFET Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ADUM3220ARZ-RL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ADUM3220ARZ-RL7CT-ND
|
DigiKey | DGTL ISO 2.5KV 2CH GT DVR 8SOIC Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1638 In Stock |
|
$2.8000 / $6.9500 | Buy Now |
|
DISTI #
584-ADUM3220ARZ-R7
|
Mouser Electronics | Galvanically Isolated Gate Drivers 4A,Dual-Ch Gate Drvr 4.1V Nominal UVLO RoHS: Compliant | 718 |
|
$2.9800 / $5.4200 | Buy Now |
|
DISTI #
V72:2272_06224096
|
Arrow Electronics | Driver 4A 2-OUT Isolated Gate Driver 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Container: Cut Strips | Americas - 46 |
|
$1.1044 / $2.8811 | Buy Now |
|
|
Analog Devices Inc | 4A,Dual-Ch Gate Drvr 4.1V Nomi Min Qty: 1 Package Multiple: 1000 | 328 |
|
$2.8000 / $6.9500 | Buy Now |
|
DISTI #
63039077
|
Verical | Driver 4A 2-OUT Isolated Gate Driver 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2215 | Americas - 46 |
|
$1.1044 / $1.1419 | Buy Now |
|
|
Bristol Electronics | Min Qty: 2 | 15 |
|
$3.2032 / $4.9280 | Buy Now |
|
|
Quest Components | 12 |
|
$3.3000 / $6.6000 | Buy Now | |
|
DISTI #
ADUM3220ARZ-RL7
|
Richardson RFPD | GATE DRIVER IC RoHS: Compliant Min Qty: 1000 | 0 |
|
$2.9000 / $3.0100 | Buy Now |
|
DISTI #
SMC-ADUM3220ARZ-RL7
|
Sensible Micro Corporation | Driver 4A 2-Out Isolated Gate Driver 8-Pin Soic N T/R RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 40 |
|
$2.7090 / $2.9348 | RFQ |
|
|
Vyrian | Interface ICs | 67 |
|
RFQ |
Part Details for ADUM3220ARZ-RL7
ADUM3220ARZ-RL7 CAD Models
ADUM3220ARZ-RL7 Part Data Attributes
|
|
ADUM3220ARZ-RL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADUM3220ARZ-RL7
Analog Devices Inc
4 A Dual-Channel Gate Driver
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | R-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Built-in Protections | TRANSIENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE | |
| High Side Driver | NO | |
| Interface IC Type | BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.23 A | |
| Output Peak Current Limit-Nom | 4 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max | 17 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Supply Voltage1-Max | 18 V | |
| Supply Voltage1-Min | 4.5 V | |
| Supply Voltage1-Nom | 10 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Turn-off Time | 0.072 µs | |
| Turn-on Time | 0.072 µs | |
| Width | 3.9 mm |
