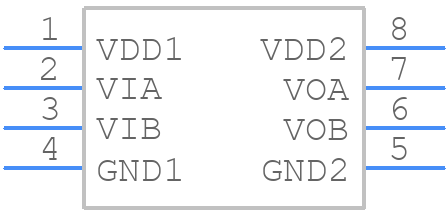

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADUM3210BRZ by Analog Devices Inc
Results Overview of ADUM3210BRZ by Analog Devices Inc
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADUM3210BRZ Information
ADUM3210BRZ by Analog Devices Inc is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ADUM3210BRZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53AK9544
|
Newark | Digital Isolator, 2Ch, -40 To 105Deg C, No. Of Channels:2Channels, Supply Voltage Min:3V, Supply Voltage Max:5.5V, Ic Case/Package:Nsoic, No. Of Pins:8Pins, Data Rate:10Mbps, Input Level:Cmos, Output Level:Cmos, Product Range:- Rohs Compliant: Yes |Analog Devices ADUM3210BRZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 534 |
|
$2.4300 / $4.5200 | Buy Now |
|
DISTI #
505-ADUM3210BRZ-ND
|
DigiKey | DGTL ISOLTR 2.5KV 2CH GP 8-SOIC Min Qty: 1 Lead time: 10 Weeks Container: Tube |
445 In Stock |
|
$2.1125 / $5.6600 | Buy Now |
|
DISTI #
584-ADUM3210BRZ
|
Mouser Electronics | Digital Isolators DUAL-CHANNEL DIGITAL ISOLATORS RoHS: Compliant | 791 |
|
$2.1900 / $4.2100 | Buy Now |
|
DISTI #
V36:1790_06224075
|
Arrow Electronics | Digital Isolator CMOS 2-CH 10Mbps 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 294 Package Multiple: 98 Lead time: 10 Weeks Date Code: 2319 | Americas - 55 |
|
$2.0870 / $2.2430 | Buy Now |
|
|
Analog Devices Inc | DUAL-CHANNEL DIGITAL ISOLATORS Package Multiple: 98 | 383 |
|
$1.6100 / $5.6600 | Buy Now |
|
DISTI #
35209423
|
Verical | Digital Isolator CMOS 2-CH 10Mbps 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 294 Package Multiple: 294 | Americas - 294 |
|
$2.1258 | Buy Now |
|
DISTI #
69786777
|
Verical | Digital Isolator CMOS 2-CH 10Mbps 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 55 Package Multiple: 55 Date Code: 2319 | Americas - 55 |
|
$2.0870 / $2.2430 | Buy Now |
|
|
Quest Components | SPECIALTY ANALOG CIRCUIT, PDSO8 | 176 |
|
$17.7285 / $22.1606 | Buy Now |
|
|
Quest Components | SPECIALTY ANALOG CIRCUIT, PDSO8 | 3 |
|
$3.3450 / $5.0175 | Buy Now |
|
DISTI #
ADUM3210BRZ
|
Richardson RFPD | DIGITAL ISOLATOR RoHS: Compliant Min Qty: 1 | 9 |
|
$2.3000 / $2.5400 | Buy Now |
Part Details for ADUM3210BRZ
ADUM3210BRZ CAD Models
ADUM3210BRZ Part Data Attributes
|
|
ADUM3210BRZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADUM3210BRZ
Analog Devices Inc
Dual-Channel Digital Isolator, Enhanced System-Level ESD Reliability
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | R-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Interface IC Type | DIGITAL ISOLATOR | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for ADUM3210BRZ
This table gives cross-reference parts and alternative options found for ADUM3210BRZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADUM3210BRZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADUM3210BRZ-RL7 | Analog Devices Inc | $2.9339 | Dual-Channel Digital Isolator, Enhanced System-Level ESD Reliability | ADUM3210BRZ vs ADUM3210BRZ-RL7 |
ADUM3210BRZ Frequently Asked Questions (FAQ)
-
The ADUM3210BRZ can support data rates up to 100 Mbps.
-
Yes, the ADUM3210BRZ is rated for operation from -40°C to +125°C, making it suitable for high-temperature applications.
-
The ADUM3210BRZ has a high common-mode transient immunity of 100 kV/μs, making it suitable for applications with high electromagnetic interference (EMI).
-
The typical propagation delay of the ADUM3210BRZ is 10 ns, making it suitable for high-speed applications.
-
Yes, the ADUM3210BRZ can operate with a power supply voltage as low as 2.7 V, making it suitable for low-power applications.
