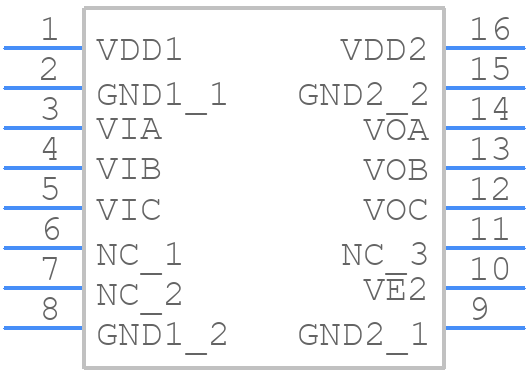

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADUM1300WTRWZ by Analog Devices Inc
Results Overview of ADUM1300WTRWZ by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ADUM1300WTRWZ Information
ADUM1300WTRWZ by Analog Devices Inc is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ADUM1300WTRWZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
86AK8148
|
Newark | Isolator, Digital, 10Mbps, Wsoic-16, No. Of Channels:3Channels, Supply Voltage Min:2.7V, Supply Voltage Max:5.5V, Ic Case/Package:Wsoic, No. Of Pins:16Pins, Data Rate:10Mbps, Input Level:Cmos, Output Level:Cmos, Product Range:- Rohs Compliant: Yes |Analog Devices ADUM1300WTRWZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$5.5800 / $10.8800 | Buy Now |
|
DISTI #
ADUM1300WTRWZ-ND
|
DigiKey | DGTL ISOLTR 2.5KV 3CH GP 16-SOIC Min Qty: 1 Lead time: 10 Weeks Container: Tube |
74 In Stock |
|
$5.3875 / $11.2900 | Buy Now |
|
DISTI #
584-ADUM1300WTRWZ
|
Mouser Electronics | Digital Isolators 3-5.5V DC10Mbit/sc 3Chnl Dgtl 3Txr0Rxr RoHS: Compliant | 101 |
|
$5.6100 / $9.7900 | Buy Now |
|
DISTI #
E54:1762_00116136
|
Arrow Electronics | Digital Isolator CMOS 3-CH 10Mbps Automotive AEC-Q100 16-Pin SOIC W Tube RoHS: Compliant Min Qty: 47 Package Multiple: 47 Lead time: 10 Weeks Date Code: 2248 | Europe - 47 |
|
$5.3740 / $6.1420 | Buy Now |
|
|
Analog Devices Inc | 3-5.5V DC10Mbit/sc 3Chnl Dgtl Package Multiple: 47 | 7723 |
|
$4.0900 / $11.2900 | Buy Now |
|
DISTI #
26622728
|
Verical | Digital Isolator CMOS 3-CH 10Mbps Automotive AEC-Q100 16-Pin SOIC W Tube RoHS: Compliant Min Qty: 94 Package Multiple: 94 | Americas - 7708 |
|
$5.3309 | Buy Now |
|
DISTI #
82428158
|
Verical | Digital Isolator CMOS 3-CH 10Mbps Automotive AEC-Q100 16-Pin SOIC W Tube RoHS: Compliant Min Qty: 47 Package Multiple: 47 Date Code: 2248 | Americas - 47 |
|
$5.3740 / $6.1420 | Buy Now |
|
|
ComSIT USA | TRIPLE-CHANNEL DIGITAL ISOLATOR Interface Circuit, CMOS, PDSO16 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ |
Part Details for ADUM1300WTRWZ
ADUM1300WTRWZ CAD Models
ADUM1300WTRWZ Part Data Attributes
|
|
ADUM1300WTRWZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADUM1300WTRWZ
Analog Devices Inc
Triple-Channel Digital Isolator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Pin Count | 16 | |
| Manufacturer Package Code | RW-16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8543.70.98.60 | |
| Samacsys Manufacturer | Analog Devices | |
| Interface IC Type | INTERFACE CIRCUIT | |
| Interface Standard | EIA-232; EIA-422; EIA-485 | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 10.3 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 2.65 mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm |
ADUM1300WTRWZ Frequently Asked Questions (FAQ)
-
The ADUM1300WTRWZ has an operating temperature range of -40°C to 125°C, and a storage temperature range of -40°C to 150°C.
-
To ensure reliable operation, it's essential to follow proper PCB layout and design guidelines, including keeping the high-voltage and low-voltage sides separate, using proper creepage and clearance distances, and ensuring that the device is properly soldered and connected.
-
The typical propagation delay of the ADUM1300WTRWZ is around 10 ns to 15 ns, depending on the specific application and operating conditions.
-
Yes, the ADUM1300WTRWZ can be used in high-frequency applications up to 100 MHz, but it's essential to follow proper PCB design and layout guidelines to minimize signal integrity issues and ensure reliable operation.
-
To handle ESD protection, it's recommended to follow proper ESD handling procedures, including using ESD-safe equipment, wearing ESD-protective clothing, and ensuring that the device is properly grounded during handling and assembly.
