ADUC848BSZ32-3 Information
ADUC848BSZ32-3 by Analog Devices Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for ADUC848BSZ32-3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ADUC848BSZ32-3-ND
|
DigiKey | IC MCU 8BIT 32KB FLASH 52MQFP Min Qty: 1 Lead time: 10 Weeks Container: Tray |
244 In Stock |
|
$12.1131 / $18.3700 | Buy Now |
|
DISTI #
584-ADUC848BSZ32-3
|
Mouser Electronics | 8-bit Microcontrollers - MCU 10 Channel 16 Bit ADC + Flash 8 Bit uP RoHS: Compliant | 71 |
|
$11.7500 / $18.3700 | Buy Now |
|
|
Analog Devices Inc | 10 Channel 16 Bit ADC + Flash Package Multiple: 96 | 49 |
|
$8.8600 / $18.3700 | Buy Now |
Part Details for ADUC848BSZ32-3

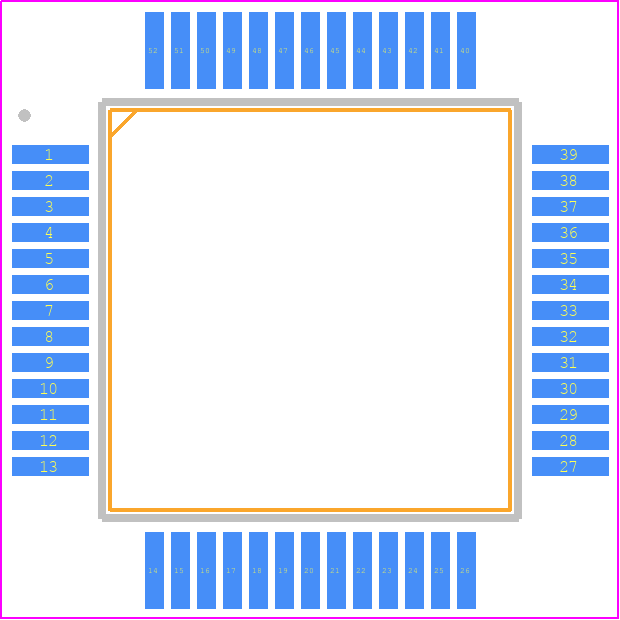

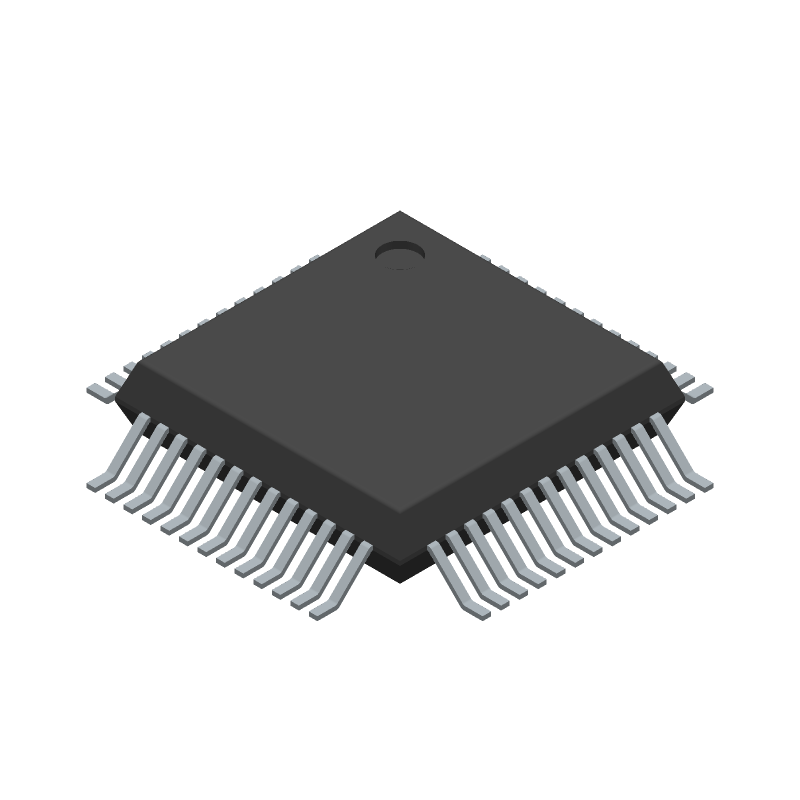

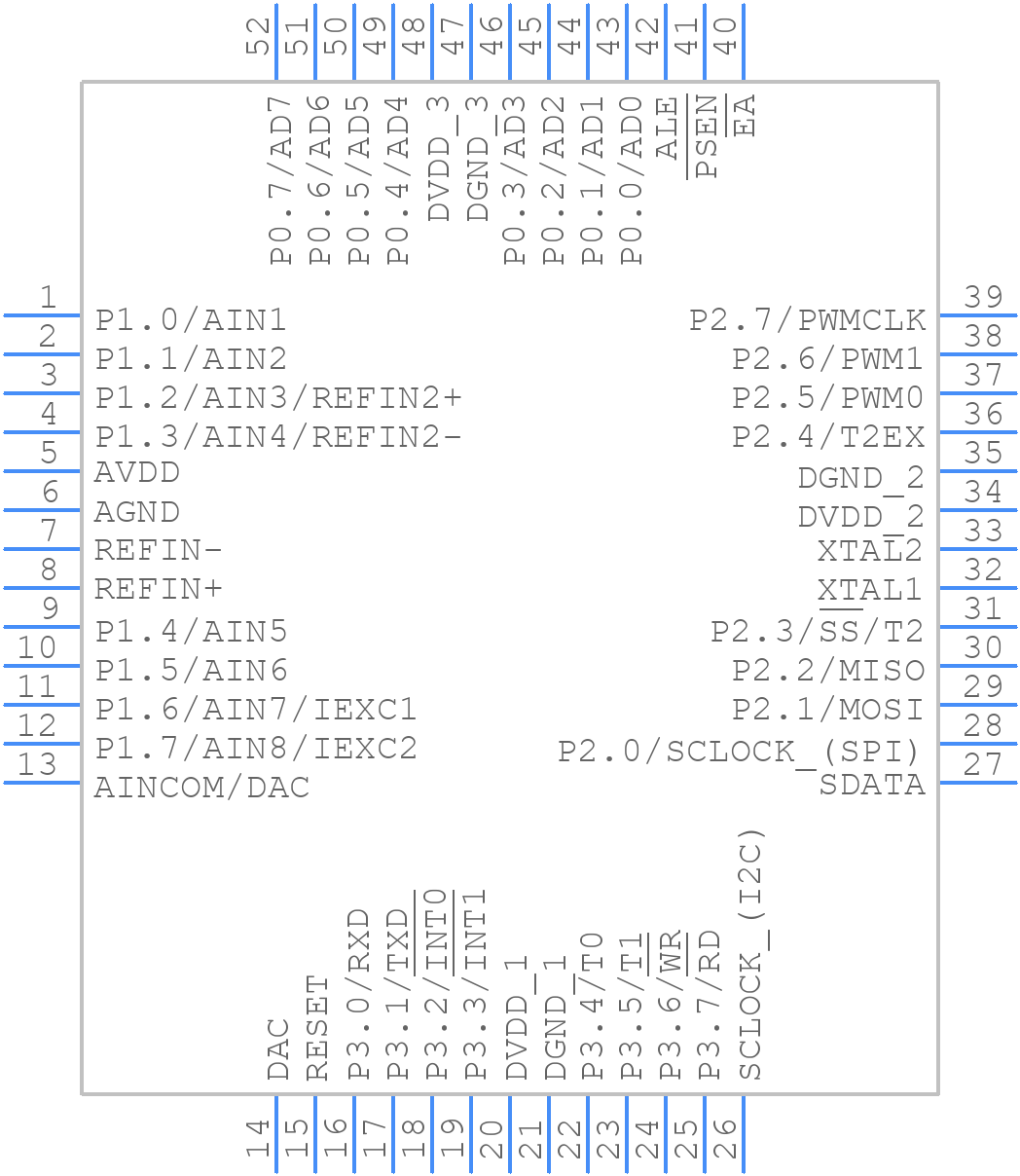

ADUC848BSZ32-3 CAD Models
ADUC848BSZ32-3 Part Data Attributes
|
|
ADUC848BSZ32-3
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADUC848BSZ32-3
Analog Devices Inc
MicroConverter® Multichannel 24-/16-Bit ADCs with Embedded 62 kB Flash and Single-Cycle MCU
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QFP | |
| Package Description | 14 X 14 MM, LEAD FREE, PLASTIC, MO-112-AC-1, MQFP-52 | |
| Pin Count | 52 | |
| Manufacturer Package Code | S-52-2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Has ADC | YES | |
| Address Bus Width | 24 | |
| Bit Size | 8 | |
| Clock Frequency-Max | 0.032 MHz | |
| DAC Channels | YES | |
| DMA Channels | NO | |
| External Data Bus Width | 8 | |
| JESD-30 Code | S-PQFP-G52 | |
| JESD-609 Code | e3 | |
| Length | 10 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 32 | |
| Number of Terminals | 52 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | QFP | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 2.45 mm | |
| Speed | 12.58 MHz | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 2.7 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | QUAD | |
| Width | 10 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
Alternate Parts for ADUC848BSZ32-3
This table gives cross-reference parts and alternative options found for ADUC848BSZ32-3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADUC848BSZ32-3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADUC848BS32-3 | Analog Devices Inc | Check for Price | IC 8-BIT, FLASH, 12.58 MHz, MICROCONTROLLER, PQFP52, 14 X 14 MM, PLASTIC, MO-112-AC-1, MQFP-52, Microcontroller | ADUC848BSZ32-3 vs ADUC848BS32-3 |
