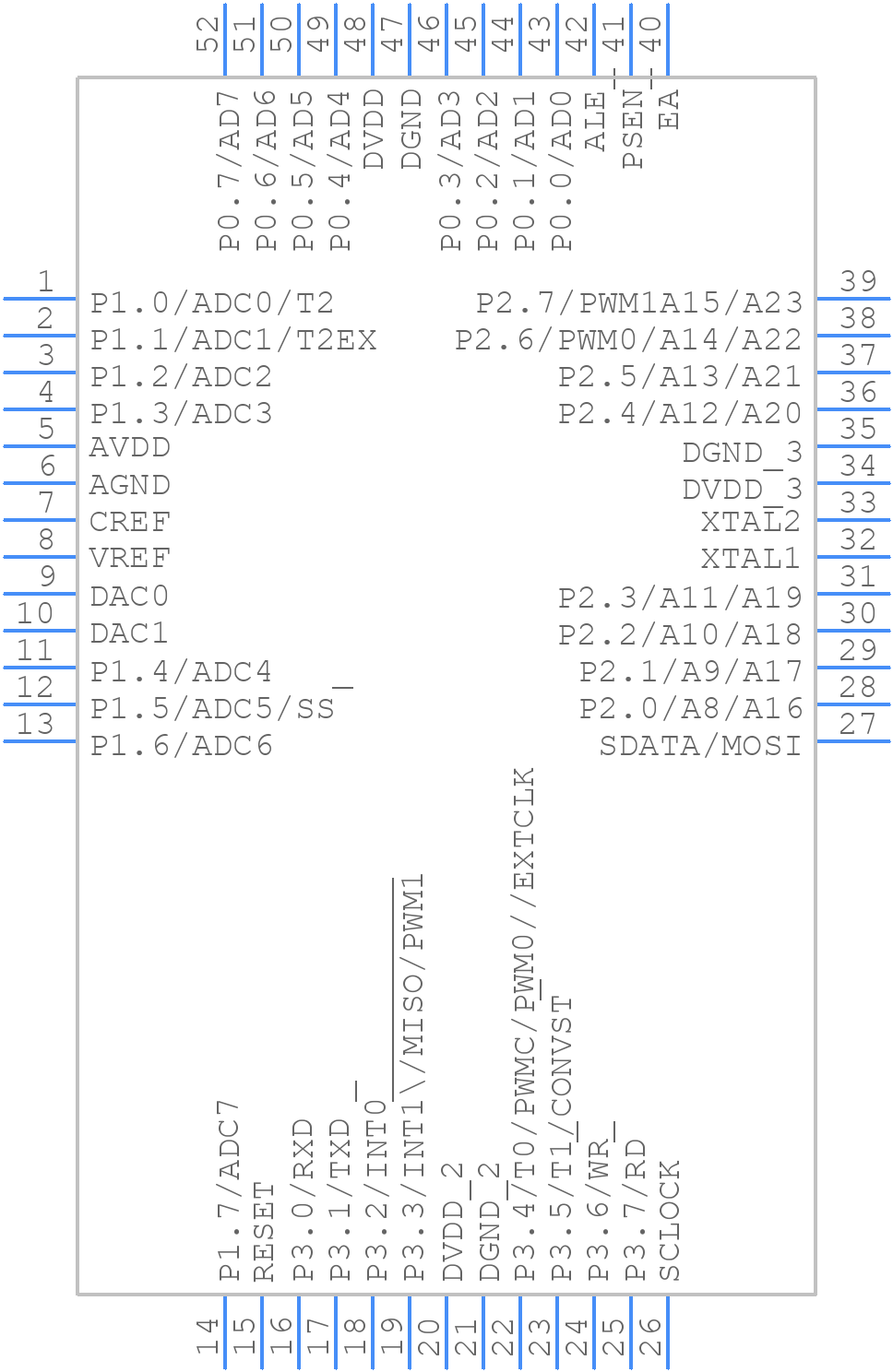

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADUC842BSZ62-3 by Analog Devices Inc
Results Overview of ADUC842BSZ62-3 by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ADUC842BSZ62-3 Information
ADUC842BSZ62-3 by Analog Devices Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for ADUC842BSZ62-3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-ADUC842BSZ62-3-ND
|
DigiKey | IC MCU 8BIT 62KB FLASH 52MQFP Min Qty: 1 Lead time: 10 Weeks Container: Tray |
88 In Stock |
|
$19.6264 / $28.2500 | Buy Now |
|
DISTI #
584-ADUC842BSZ62-3
|
Mouser Electronics | 8-bit Microcontrollers - MCU Microconverter 1-cycle version ADUC832 RoHS: Compliant | 55 |
|
$18.7700 / $28.2500 | Buy Now |
|
DISTI #
26635380
|
Verical | MCU 8-bit 8052 CISC 62KB Flash 3V 52-Pin MQFP Tray RoHS: Compliant Min Qty: 33 Package Multiple: 33 | Americas - 2937 |
|
$18.4787 | Buy Now |
Part Details for ADUC842BSZ62-3
ADUC842BSZ62-3 CAD Models
ADUC842BSZ62-3 Part Data Attributes
|
|
ADUC842BSZ62-3
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADUC842BSZ62-3
Analog Devices Inc
ADUC842BSZ62-3
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QFP | |
| Package Description | MQFP-52 | |
| Pin Count | 52 | |
| Manufacturer Package Code | S-52-2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Has ADC | YES | |
| Additional Feature | OPERATES AT 3V SUPPLY @ 8.35 MHZ | |
| Address Bus Width | 24 | |
| Bit Size | 8 | |
| Clock Frequency-Max | 0.032 MHz | |
| DAC Channels | YES | |
| DMA Channels | NO | |
| External Data Bus Width | 8 | |
| JESD-30 Code | S-PQFP-G52 | |
| JESD-609 Code | e3 | |
| Length | 10 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 32 | |
| Number of Terminals | 52 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | QFP | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 2.45 mm | |
| Speed | 8.38 MHz | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 2.7 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | QUAD | |
| Width | 10 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
Alternate Parts for ADUC842BSZ62-3
This table gives cross-reference parts and alternative options found for ADUC842BSZ62-3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADUC842BSZ62-3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADUC842BS62-3 | Analog Devices Inc | Check for Price | IC 8-BIT, FLASH, 8.38 MHz, MICROCONTROLLER, PQFP52, PLASTIC, MO-112AC1, MQFP-52, Microcontroller | ADUC842BSZ62-3 vs ADUC842BS62-3 |
ADUC842BSZ62-3 Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep analog and digital traces separate and avoid crossing them over each other.
-
Use a low-impedance voltage source, decouple the VREF pin with a 10nF capacitor, and keep the voltage reference input pin away from noisy digital signals.
-
The maximum clock frequency is 16.78 MHz, but it's recommended to operate at 12.58 MHz or lower for optimal performance and to minimize power consumption.
-
Use an external reset circuit with a capacitor and resistor to ensure a clean power-on reset. For BOR, use a voltage supervisor or a reset IC to monitor the supply voltage and reset the ADUC842BSZ if it falls below a certain threshold.
-
Perform a full-scale calibration by applying a known input voltage to the ADC and adjusting the offset and gain registers to achieve the desired accuracy. Repeat the process for each ADC channel.
