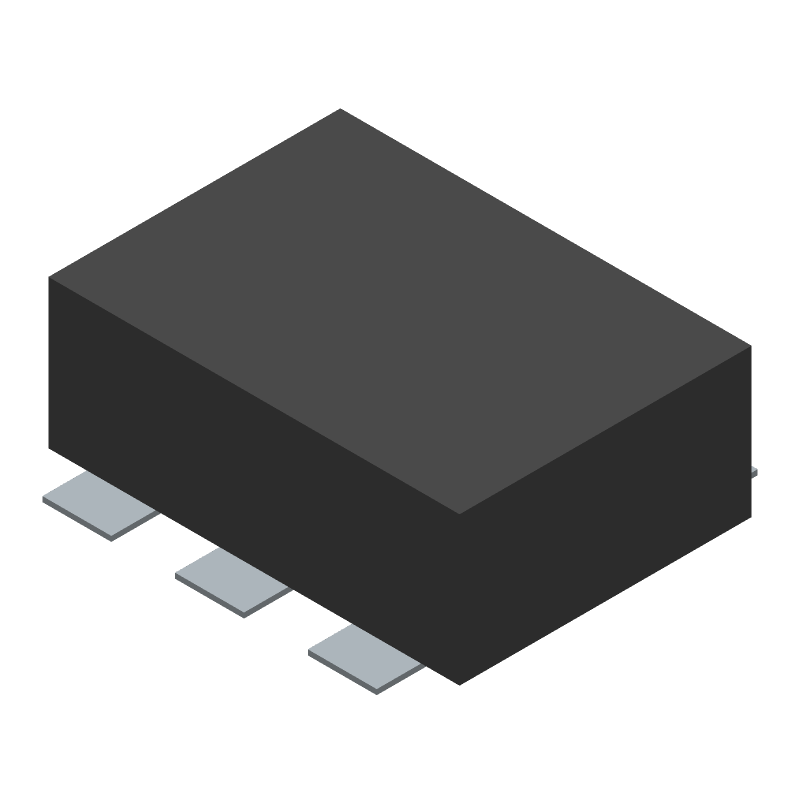

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
RF Transformer, 0.3MHz Min, 300MHz Max, 1:1, ROHS COMPLIANT
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADTT1-1+ by Mini-Circuits is an RF Transformer.
RF Transformers are under the broader part category of Transformers.
Transformers are passive components that transfer electrical energy between circuits and adjust voltage levels through electromagnetic induction. They are crucial for applications like power transmission and reducing voltage for low-voltage devices. Read more about Transformers on our Transformers part category page.
Part # | Distributor | Description | Stock | Price | Buy | |
---|---|---|---|---|---|---|
DISTI #
3157-ADTT1-1+CT-ND
|
DigiKey | 1:1 CORE & WIRE TRANSFORMER, 0.3 Min Qty: 1 Lead time: 2 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1284 In Stock |
|
$4.9920 / $6.6000 | Buy Now |
DISTI #
139-ADTT1-1
|
Mouser Electronics | Audio Transformers / Signal Transformers RF XFMR / SURF MOUNT / RoHS RoHS: Compliant | 1280 |
|
$4.9900 / $5.9900 | Buy Now |
|
Bristol Electronics | 105 |
|
RFQ | ||
|
Chip Stock | 226 |
|
RFQ | ||
|
LCSC | 18dB 2 300kHz300MHz 3dB 5050 SMD-6P Balun ROHS | 18 |
|
$5.9791 / $8.2669 | Buy Now |
|
Win Source Electronics | 1:1 CORE & WIRE TRANSFORMER, 0.3 | 8380 |
|
$5.4412 / $8.1612 | Buy Now |
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
|
ADTT1-1+
Mini-Circuits
Buy Now
Datasheet
|
Compare Parts:
ADTT1-1+
Mini-Circuits
RF Transformer, 0.3MHz Min, 300MHz Max, 1:1, ROHS COMPLIANT
|
Pbfree Code | Yes | |
Rohs Code | Yes | |
Part Life Cycle Code | Active | |
Ihs Manufacturer | MINI-CIRCUITS | |
Package Description | ROHS COMPLIANT | |
Reach Compliance Code | compliant | |
ECCN Code | EAR99 | |
Samacsys Manufacturer | Mini-Circuits | |
Additional Feature | OHMS RATIO IS 1 | |
Application | MATCHING | |
Cut-off Frequency-Max | 300 MHz | |
Cut-off Frequency-Min | 0.3 MHz | |
DC Unbalance Current-Max | 30 mA | |
Height | 2.84 mm | |
Insertion Loss | 3 dB | |
Length | 7.87 mm | |
Mounting Feature | SURFACE MOUNT | |
Number of Primary Winding | 1 | |
Number of Secondary Winding | 1 | |
Operating Frequency-Max | 300000 kHz | |
Operating Frequency-Min | 300 kHz | |
Operating Temperature-Max | 85 °C | |
Operating Temperature-Min | -20 °C | |
Packing Method | TAPE & REEL | |
Power Rating | 0.25 W | |
Surface Mount | YES | |
Transformer Type | RF TRANSFORMER | |
Turns Ratio (Np:Ns) | 1:1 | |
Width | 5.59 mm |
This table gives cross-reference parts and alternative options found for ADTT1-1+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADTT1-1+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
Part Number | Manufacturer | Composite Price | Description | Compare |
---|---|---|---|---|
ADTT1-1 | Mini-Circuits | Check for Price | RF Transformer, 0.3MHz Min, 300MHz Max, 1:1, | ADTT1-1+ vs ADTT1-1 |
A recommended PCB layout and footprint can be found in the Mini-Circuits application note AN-60-001, which provides guidelines for optimal performance and minimization of parasitic effects.
Proper thermal management can be achieved by providing a heat sink or thermal pad under the device, and ensuring good airflow around the component. The device's thermal resistance (θja) is specified in the datasheet.
The maximum power handling capability of the ADTT1-1+ is dependent on the frequency and impedance of the signal. As a general guideline, the device can handle up to 1W of power, but this should be derated based on the specific application and operating conditions.
Yes, the ADTT1-1+ can be used in a push-pull configuration, but it's essential to ensure that the devices are properly matched and biased to avoid uneven current sharing and potential oscillations.
The recommended biasing scheme for the ADTT1-1+ is a voltage-controlled current source, with a bias voltage range of 2-5V and a quiescent current of 10-20mA. The specific biasing scheme may vary depending on the application and operating conditions.
