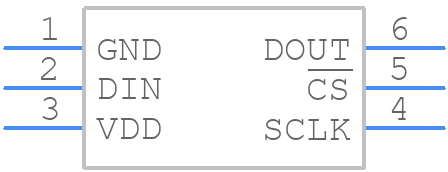

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADT7301ARTZ-500RL7 by Analog Devices Inc
Results Overview of ADT7301ARTZ-500RL7 by Analog Devices Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
ADT7301ARTZ-500RL7 Information
ADT7301ARTZ-500RL7 by Analog Devices Inc is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for ADT7301ARTZ-500RL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53AK9436
|
Newark | Temperature Sensor, -40 To 150Deg C, Sensor Output Type:Digital, Accuracy:± 1°C, Sensor Case/Package:Sot-23, No. Of Pins:6Pins, Supply Voltage Min:2.7V, Supply Voltage Max:5.25V, No. Of Channels:1Channels, Resolution:13 Bits Rohs Compliant: Yes |Analog Devices ADT7301ARTZ-500RL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 54 |
|
$1.9200 / $3.7400 | Buy Now |
|
DISTI #
505-ADT7301ARTZ-500RL7CT-ND
|
DigiKey | SENSOR DIGITAL -40C-150C SOT23-6 Min Qty: 1 Lead time: 20 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
1079 In Stock |
|
$1.8500 / $5.1500 | Buy Now |
|
DISTI #
584-ADT7301ARTZ500R7
|
Mouser Electronics | Board Mount Temperature Sensors +/- 0.5 c, 12-Bit Dig Temp Sensor I.C. RoHS: Compliant | 307 |
|
$1.9200 / $3.7400 | Buy Now |
|
DISTI #
E54:1762_00116397
|
Arrow Electronics | Temp Sensor Digital Serial (4-Wire, SPI) Medical 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 10 Weeks Date Code: 2513 | Europe - 1000 |
|
$1.8270 / $1.9320 | Buy Now |
|
DISTI #
V72:2272_06223236
|
Arrow Electronics | Temp Sensor Digital Serial (4-Wire, SPI) Medical 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 1851 Container: Cut Strips | Americas - 4 |
|
$0.3831 / $1.9036 | Buy Now |
|
|
Analog Devices Inc | +/- 0.5 c, 12-Bit Dig Temp Sen Package Multiple: 500 | 718 |
|
$1.8500 / $5.1500 | Buy Now |
|
DISTI #
88177407
|
Verical | Temp Sensor Digital Serial (4-Wire, SPI) Medical 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 Date Code: 2513 | Americas - 1000 |
|
$1.8270 / $1.9320 | Buy Now |
|
|
LCSC | SOT-23-6 Temperature Sensors ROHS | 44 |
|
$3.4269 / $5.3369 | Buy Now |
|
|
Win Source Electronics | Temp Sensor Digital Serial (4-Wire, SPI) Automotive 6-Pin SOT-23 T/R / SENSOR TEMPERATURE SPI SOT23-6 | 9190 |
|
$1.9635 / $2.5361 | Buy Now |
Part Details for ADT7301ARTZ-500RL7
ADT7301ARTZ-500RL7 CAD Models
ADT7301ARTZ-500RL7 Part Data Attributes
|
|
ADT7301ARTZ-500RL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADT7301ARTZ-500RL7
Analog Devices Inc
13-Bit, ±1°C Accurate, MicroPower Digital Temperature Sensor in 6-Lead SOT-23 and 8-Lead MSOP
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | SOT-23, 6 PIN | |
| Pin Count | 6 | |
| Manufacturer Package Code | RJ-6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Accuracy-Max (Cel) | 4 Cel | |
| Body Breadth | 1.6 mm | |
| Body Height | 1.2 mm | |
| Body Length or Diameter | 2.9 mm | |
| Housing | PLASTIC | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Bits | 13 | |
| Number of Terminals | 6 | |
| Operating Current-Max | 2.2 mA | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Interface Type | 4-WIRE INTERFACE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | TSOP6,.11,37 | |
| Package Shape/Style | RECTANGULAR | |
| Sensors/Transducers Type | TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL | |
| Supply Voltage-Max | 5.25 V | |
| Supply Voltage-Min | 2.7 V | |
| Surface Mount | YES | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Termination Type | SOLDER |
Alternate Parts for ADT7301ARTZ-500RL7
This table gives cross-reference parts and alternative options found for ADT7301ARTZ-500RL7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADT7301ARTZ-500RL7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADT7301ARTZ-REEL7 | Analog Devices Inc | $2.3915 | 13-Bit, ±1°C Accurate, MicroPower Digital Temperature Sensor in 6-Lead SOT-23 and 8-Lead MSOP | ADT7301ARTZ-500RL7 vs ADT7301ARTZ-REEL7 |
| ADT7301ART-500RL7 | Analog Devices Inc | Check for Price | Switch/Digital Output Temperature Sensor, DIGITAL TEMP SENSOR-SERIAL, 13BIT(s), 4Cel, RECTANGULAR, SURFACE MOUNT, MO-178AB, SOT-23, 6 PIN | ADT7301ARTZ-500RL7 vs ADT7301ART-500RL7 |
| ADT7301ART | Analog Devices Inc | Check for Price | Switch/Digital Output Temperature Sensor, DIGITAL TEMP SENSOR-SERIAL, 12BIT(s), 0.50Cel, RECTANGULAR, SURFACE MOUNT, PLASTIC, SOT-23, 6 PIN | ADT7301ARTZ-500RL7 vs ADT7301ART |
| ADT7301ARTZ-REEL | Analog Devices Inc | Check for Price | Switch/Digital Output Temperature Sensor, DIGITAL TEMP SENSOR-SERIAL, 13BIT(s), 4Cel, RECTANGULAR, SURFACE MOUNT, LEAD FREE, PLASTIC, MO-178AB, SOT-23, 6 PIN | ADT7301ARTZ-500RL7 vs ADT7301ARTZ-REEL |
ADT7301ARTZ-500RL7 Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and thermal vias under the device is recommended. This helps to dissipate heat efficiently and reduces thermal resistance.
-
Calibrate the device using the CAL pin, and ensure that the thermistor is properly connected and not subject to self-heating. Also, use a low-noise, low-impedance connection to the thermistor.
-
The maximum cable length depends on the specific application, but as a general rule, keep the cable length as short as possible (less than 1 meter) to minimize noise and errors.
-
The ADT7301 is optimized for use with 10 kΩ NTC thermistors. Using a different type of thermistor may require adjustments to the calibration and may affect accuracy.
-
Use proper PCB layout techniques, such as grounding and shielding, to minimize EMI. Also, consider using EMI filters or shielding on the thermistor connection.
