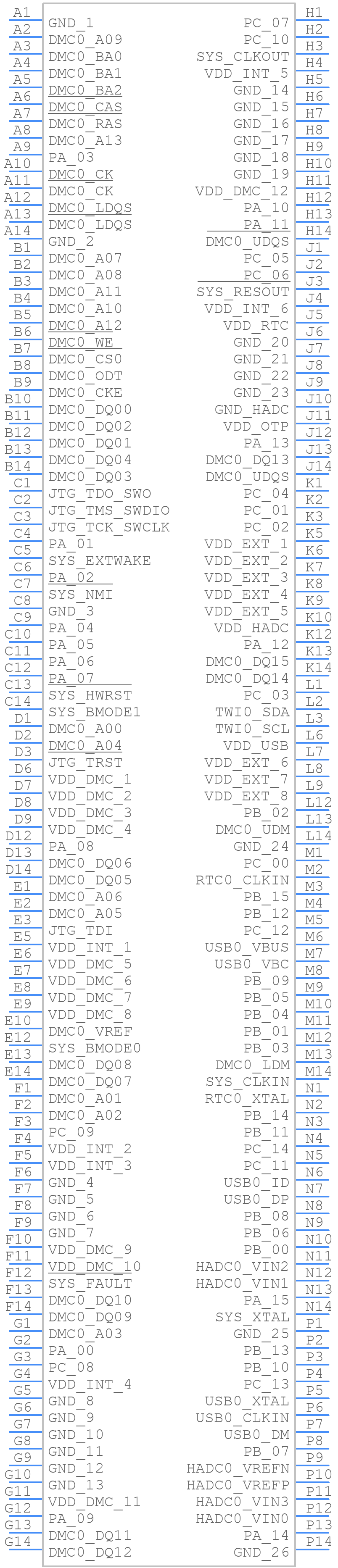

Part Symbol
-

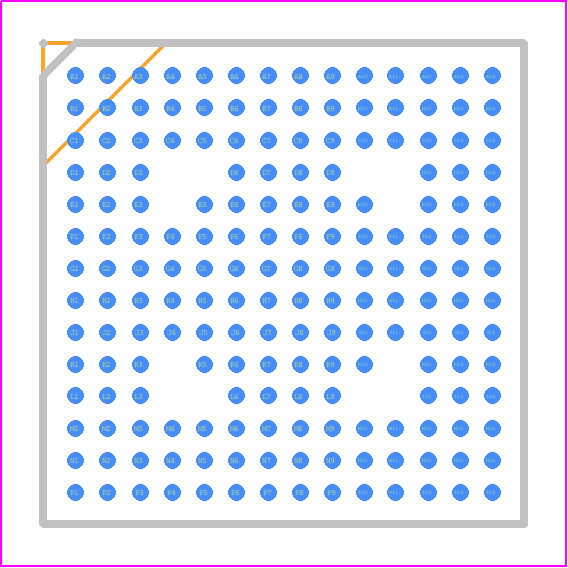

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADSP-BF707BBCZ-3 by Analog Devices Inc
Results Overview of ADSP-BF707BBCZ-3 by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADSP-BF707BBCZ-3 Information
ADSP-BF707BBCZ-3 by Analog Devices Inc is a Digital Signal Processor.
Digital Signal Processors are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| ADSP-2105BPZ-80RL | Rochester Electronics LLC | ADSP-2105 - 16-Bit Fixed-Point DSP Microprocessor (-40C to + 85C) | |
| ADSP-2105BPZ-80 | Rochester Electronics LLC | ADSP-2105 - 16-Bit Fixed-Point DSP Microprocessor (-40C to + 85C) | |
| ADSP-2101BPZ-100 | Rochester Electronics LLC | ADSP-2101 - 16-Bit Fixed-Point DSP Microprocessor (-40C to + 85C) |
Price & Stock for ADSP-BF707BBCZ-3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-ADSP-BF707BBCZ-3-ND
|
DigiKey | IC DSP LP 1024KB L2SR 184BGA Min Qty: 1 Lead time: 10 Weeks Container: Tray |
103 In Stock |
|
$15.6619 / $23.3800 | Buy Now |
|
DISTI #
584-ADSP-BF707BBCZ-3
|
Mouser Electronics | Digital Signal Processors & Controllers - DSP, DSC Low Cost sngl core BF+ w/Large Int'l mem RoHS: Compliant | 0 |
|
$15.1700 / $16.3600 | Order Now |
|
|
Analog Devices Inc | Low Cost sngl core BF+ w/Large Package Multiple: 1 | 1719 |
|
$11.5300 / $16.3600 | Buy Now |
|
DISTI #
77890541
|
Verical | DSP 16bit/32bit 300MHz 184-Pin CSP-BGA Tray RoHS: Compliant Min Qty: 41 Package Multiple: 41 | Americas - 1681 |
|
$15.2704 | Buy Now |
|
DISTI #
ADSP-BF707BBCZ3
|
Richardson RFPD | MICROCONTROLLER IC RoHS: Compliant Min Qty: 41 | 0 |
|
$15.8700 / $16.9600 | Buy Now |
Part Details for ADSP-BF707BBCZ-3
ADSP-BF707BBCZ-3 CAD Models
ADSP-BF707BBCZ-3 Part Data Attributes
|
|
ADSP-BF707BBCZ-3
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADSP-BF707BBCZ-3
Analog Devices Inc
Low Power 400MHz Blackfin+ Embedded Processor with 1MByte L2 SRAM & DDR2/LPDDR Interface
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | CSBGA-184 | |
| Pin Count | 184 | |
| Manufacturer Package Code | BC-184-1 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 5A992.C | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Address Bus Width | 14 | |
| Barrel Shifter | YES | |
| Bit Size | 32 | |
| Boundary Scan | YES | |
| Clock Frequency-Max | 60 MHz | |
| External Data Bus Width | 16 | |
| Format | FIXED POINT | |
| Integrated Cache | YES | |
| Internal Bus Architecture | MULTIPLE | |
| JESD-30 Code | S-PBGA-B184 | |
| JESD-609 Code | e1 | |
| Length | 12 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 3 | |
| Number of Serial I/Os | 4 | |
| Number of Terminals | 184 | |
| Number of Timers | 8 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFBGA | |
| Package Equivalence Code | BGA184,14X14,32 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.7 mm | |
| Supply Voltage-Max | 1.9 V | |
| Supply Voltage-Min | 1.7 V | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 12 mm | |
| uPs/uCs/Peripheral ICs Type | DIGITAL SIGNAL PROCESSOR, OTHER |
