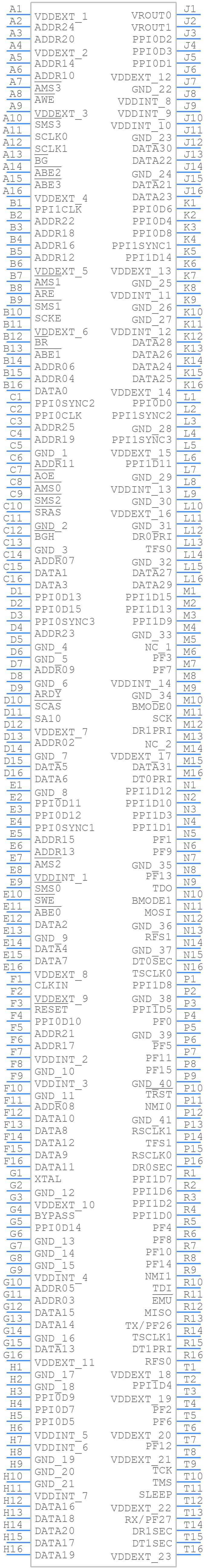

Part Symbol
-

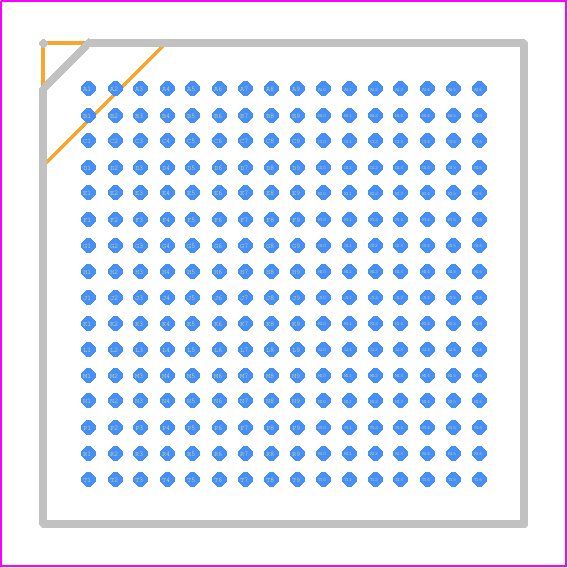

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADSP-BF561SKBCZ500 by Analog Devices Inc
Results Overview of ADSP-BF561SKBCZ500 by Analog Devices Inc
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADSP-BF561SKBCZ500 Information
ADSP-BF561SKBCZ500 by Analog Devices Inc is a Digital Signal Processor.
Digital Signal Processors are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for ADSP-BF561SKBCZ500
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
22AM0939
|
Newark | Dsp, 500Mhz, Cspbga-256, 0 To 70Deg C Rohs Compliant: Yes |Analog Devices ADSP-BF561SKBCZ500 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$64.4500 / $68.6400 | Buy Now |
|
DISTI #
2156-ADSP-BF561SKBCZ500-ND
|
DigiKey | BLACK FIN, EMBEDDED,SYMMETRIC Min Qty: 1 Lead time: 10 Weeks Container: Bulk MARKETPLACE PRODUCT |
11926 In Stock |
|
$64.6800 | Buy Now |
|
DISTI #
ADSP-BF561SKBCZ500-ND
|
DigiKey | BLACK FIN, EMBEDDED,SYMMETRIC Min Qty: 1 Lead time: 10 Weeks Container: Tray |
19 In Stock |
|
$59.2250 / $64.8600 | Buy Now |
|
DISTI #
584-ASPBF561SKBCZ500
|
Mouser Electronics | Digital Signal Processors & Controllers - DSP, DSC BKFN DIG IMAGING APPS PROCESSOR RoHS: Compliant | 0 |
|
$59.2300 / $63.7600 | Order Now |
|
DISTI #
V99:2348_06223186
|
Arrow Electronics | DSP Fixed-Point 16bit 500MHz 256-Pin CSP-BGA Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2511 | Americas - 10 |
|
$63.6000 / $63.6500 | Buy Now |
|
|
Analog Devices Inc | BKFN DIG IMAGING APPS PROCESSO Package Multiple: 1 | 821 |
|
$59.2250 / $64.8600 | Buy Now |
|
DISTI #
88118359
|
Verical | DSP Fixed-Point 16bit 500MHz 256-Pin CSP-BGA Tray RoHS: Compliant Min Qty: 10 Package Multiple: 10 | Americas - 810 |
|
$58.6023 | Buy Now |
|
DISTI #
88991160
|
Verical | DSP Fixed-Point 16bit 500MHz 256-Pin CSP-BGA Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 | Americas - 10 |
|
$63.6500 | Buy Now |
|
|
Bristol Electronics | 37 |
|
RFQ | ||
|
|
Bristol Electronics | 19 |
|
RFQ |
Part Details for ADSP-BF561SKBCZ500
ADSP-BF561SKBCZ500 CAD Models
ADSP-BF561SKBCZ500 Part Data Attributes
|
|
ADSP-BF561SKBCZ500
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADSP-BF561SKBCZ500
Analog Devices Inc
Blackfin Symmetric Multi-Processor for Consumer Multimedia
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | BGA | |
| Package Description | 12 X 12 MM, ROHS COMPLIANT, MO-225, BGA-256 | |
| Pin Count | 256 | |
| Manufacturer Package Code | BC-256-1 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | ALSO OPERATES AT 2.5 OR 3.3 V NOMINAL SUPPLY | |
| Address Bus Width | 23 | |
| Barrel Shifter | YES | |
| Bit Size | 32 | |
| Boundary Scan | YES | |
| Clock Frequency-Max | 500 MHz | |
| External Data Bus Width | 32 | |
| Format | FIXED POINT | |
| Internal Bus Architecture | MULTIPLE | |
| JESD-30 Code | S-PBGA-B256 | |
| JESD-609 Code | e1 | |
| Length | 12 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 3 | |
| Number of Terminals | 256 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFBGA | |
| Package Equivalence Code | BGA256,16X16,25 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.7 mm | |
| Speed | 500 MHz | |
| Supply Voltage-Max | 1.375 V | |
| Supply Voltage-Min | 0.8 V | |
| Supply Voltage-Nom | 1.25 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | BOTTOM | |
| Width | 12 mm | |
| uPs/uCs/Peripheral ICs Type | DIGITAL SIGNAL PROCESSOR, OTHER |
Alternate Parts for ADSP-BF561SKBCZ500
This table gives cross-reference parts and alternative options found for ADSP-BF561SKBCZ500. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADSP-BF561SKBCZ500, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADSP-BF561SBB500 | Analog Devices Inc | Check for Price | Blackfin Symmetric Multi-Processor for Consumer Multimedia | ADSP-BF561SKBCZ500 vs ADSP-BF561SBB500 |
