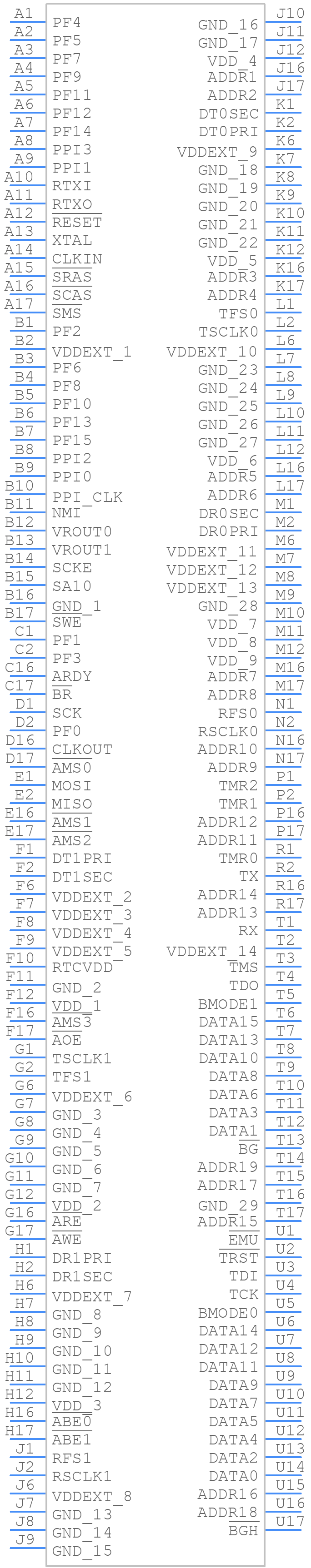

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADSP-BF533SBBZ500 by Analog Devices Inc
Results Overview of ADSP-BF533SBBZ500 by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADSP-BF533SBBZ500 Information
ADSP-BF533SBBZ500 by Analog Devices Inc is a Digital Signal Processor.
Digital Signal Processors are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for ADSP-BF533SBBZ500
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-ADSP-BF533SBBZ500-ND
|
DigiKey | IC DSP CTLR 16BIT 500MHZ 169BGA Min Qty: 1 Lead time: 10 Weeks Container: Tray |
20 In Stock |
|
$31.8302 / $44.6400 | Buy Now |
|
DISTI #
584-ADSPBF533SBBZ500
|
Mouser Electronics | Digital Signal Processors & Controllers - DSP, DSC Dual MAC16-bit500MHz,148KB SRAM RoHS: Compliant | 0 |
|
$30.8300 / $35.7100 | Order Now |
|
DISTI #
V99:2348_06223130
|
Arrow Electronics | DSP Fixed-Point 16bit 500MHz 169-Pin BGA Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2443 | Americas - 17 |
|
$31.3100 / $35.6100 | Buy Now |
|
|
Analog Devices Inc | Dual MAC16-bit500MHz,148KB SRA Package Multiple: 1 | 364 |
|
$30.8380 / $35.7100 | Buy Now |
|
DISTI #
87015868
|
Verical | DSP Fixed-Point 16bit 500MHz 169-Pin BGA Tray RoHS: Compliant Min Qty: 20 Package Multiple: 20 | Americas - 360 |
|
$30.5133 | Buy Now |
Part Details for ADSP-BF533SBBZ500
ADSP-BF533SBBZ500 CAD Models
ADSP-BF533SBBZ500 Part Data Attributes
|
|
ADSP-BF533SBBZ500
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADSP-BF533SBBZ500
Analog Devices Inc
High Performance General Purpose Blackfin Processor
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | BGA | |
| Package Description | ROHS COMPLIANT, PLASTIC, MO-034AAG-2, BGA-169 | |
| Pin Count | 169 | |
| Manufacturer Package Code | B-169 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | ALSO REQUIRES 3V OR 3.3V SUPPLY | |
| Address Bus Width | 19 | |
| Barrel Shifter | YES | |
| Bit Size | 32 | |
| Boundary Scan | YES | |
| Clock Frequency-Max | 40 MHz | |
| External Data Bus Width | 16 | |
| Format | FIXED POINT | |
| Internal Bus Architecture | MULTIPLE | |
| JESD-30 Code | S-PBGA-B169 | |
| JESD-609 Code | e1 | |
| Length | 19 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 3 | |
| Number of Terminals | 169 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | BGA | |
| Package Equivalence Code | BGA169,17X17,40 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.5 mm | |
| Speed | 500 MHz | |
| Supply Voltage-Max | 1.45 V | |
| Supply Voltage-Min | 0.8 V | |
| Supply Voltage-Nom | 1.2 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 1 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 19 mm | |
| uPs/uCs/Peripheral ICs Type | DIGITAL SIGNAL PROCESSOR, OTHER |
Alternate Parts for ADSP-BF533SBBZ500
This table gives cross-reference parts and alternative options found for ADSP-BF533SBBZ500. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADSP-BF533SBBZ500, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADSP-BF533SBBZ400 | Analog Devices Inc | $29.3015 | High Performance General Purpose Blackfin Processor | ADSP-BF533SBBZ500 vs ADSP-BF533SBBZ400 |
| ADSP-BF533SBBC400 | Analog Devices Inc | Check for Price | High Performance General Purpose Blackfin Processor | ADSP-BF533SBBZ500 vs ADSP-BF533SBBC400 |
| ADSP-BF533SBBC-5V | Analog Devices Inc | Check for Price | High Performance General Purpose Blackfin Processor | ADSP-BF533SBBZ500 vs ADSP-BF533SBBC-5V |
| ADSP-BF533SBBC500 | Analog Devices Inc | Check for Price | High Performance General Purpose Blackfin Processor | ADSP-BF533SBBZ500 vs ADSP-BF533SBBC500 |
| ADSP-BF533SBBCZ400 | Analog Devices Inc | Check for Price | High Performance General Purpose Blackfin Processor | ADSP-BF533SBBZ500 vs ADSP-BF533SBBCZ400 |
| ADSP-BF533SBBCZ-5V | Analog Devices Inc | Check for Price | High Performance General Purpose Blackfin Processor | ADSP-BF533SBBZ500 vs ADSP-BF533SBBCZ-5V |
| ADSP-BF533SKBCZ-6V | Analog Devices Inc | Check for Price | High Performance General Purpose Blackfin Processor | ADSP-BF533SBBZ500 vs ADSP-BF533SKBCZ-6V |
| ADSP-BF533SKBCZ600 | Analog Devices Inc | Check for Price | IC 16-BIT, 50 MHz, OTHER DSP, PBGA160, LEAD FREE, MO-205AE, CSBGA-160, Digital Signal Processor | ADSP-BF533SBBZ500 vs ADSP-BF533SKBCZ600 |
| ADSP-BF533SBB500 | Analog Devices Inc | Check for Price | High Performance General Purpose Blackfin Processor | ADSP-BF533SBBZ500 vs ADSP-BF533SBB500 |
| ADSP-BF533SBSTZ400 | Analog Devices Inc | Check for Price | High Performance General Purpose Blackfin Processor | ADSP-BF533SBBZ500 vs ADSP-BF533SBSTZ400 |
ADSP-BF533SBBZ500 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the ADSP-BF533SBBZ500 is -40°C to 85°C.
-
The EMIF on the ADSP-BF533SBBZ500 can be configured using the EMIF control registers. Refer to the ADSP-BF533 Blackfin Processor Hardware Reference manual for more information.
-
The maximum clock frequency supported by the ADSP-BF533SBBZ500 is 500 MHz.
-
The DMA controller on the ADSP-BF533SBBZ500 can be used to transfer data between peripherals and memory. Refer to the ADSP-BF533 Blackfin Processor Hardware Reference manual for more information on configuring and using the DMA controller.
-
The power consumption of the ADSP-BF533SBBZ500 varies depending on the operating frequency and voltage. Refer to the ADSP-BF533 datasheet for more information on power consumption.
