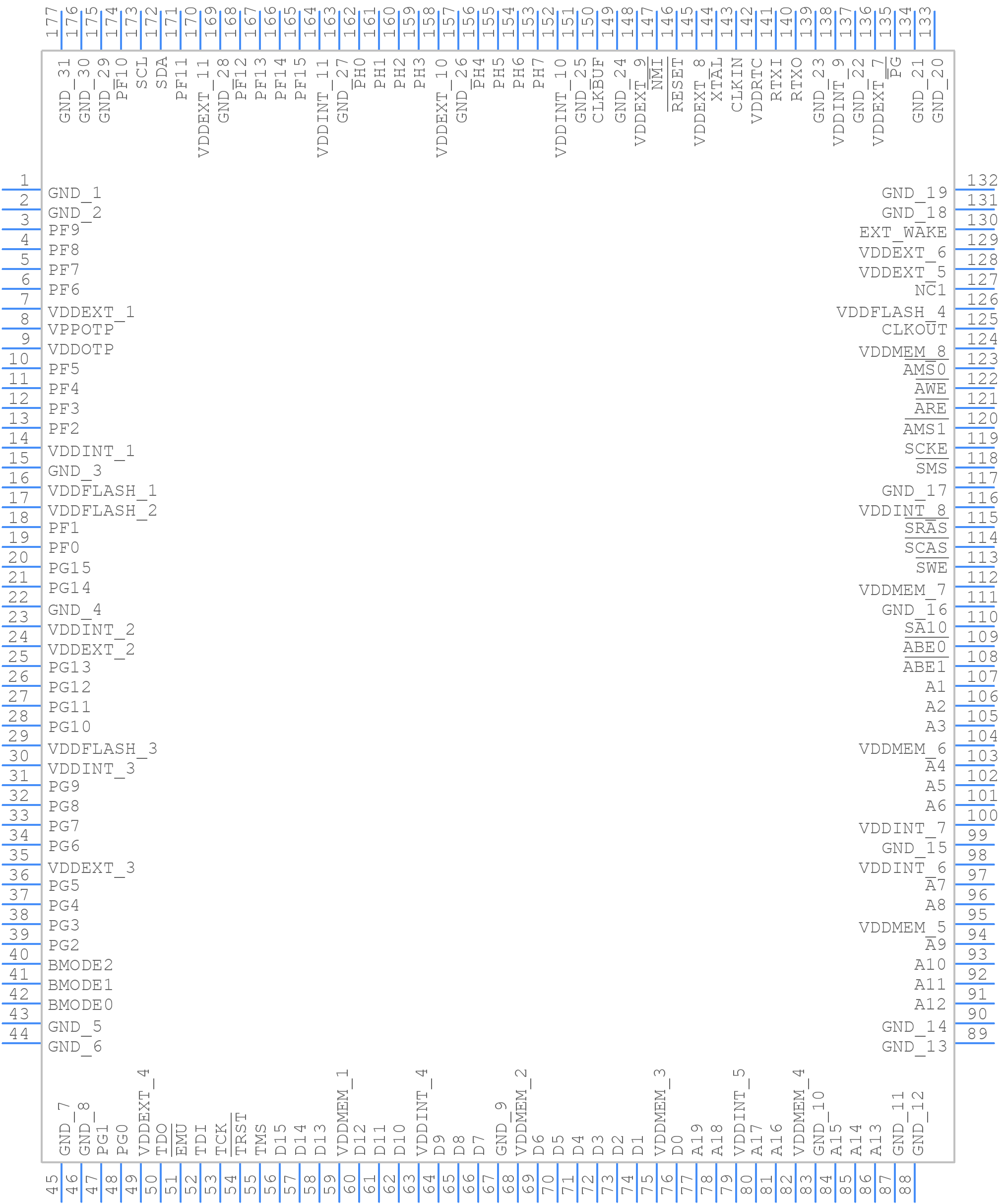

Part Symbol
-

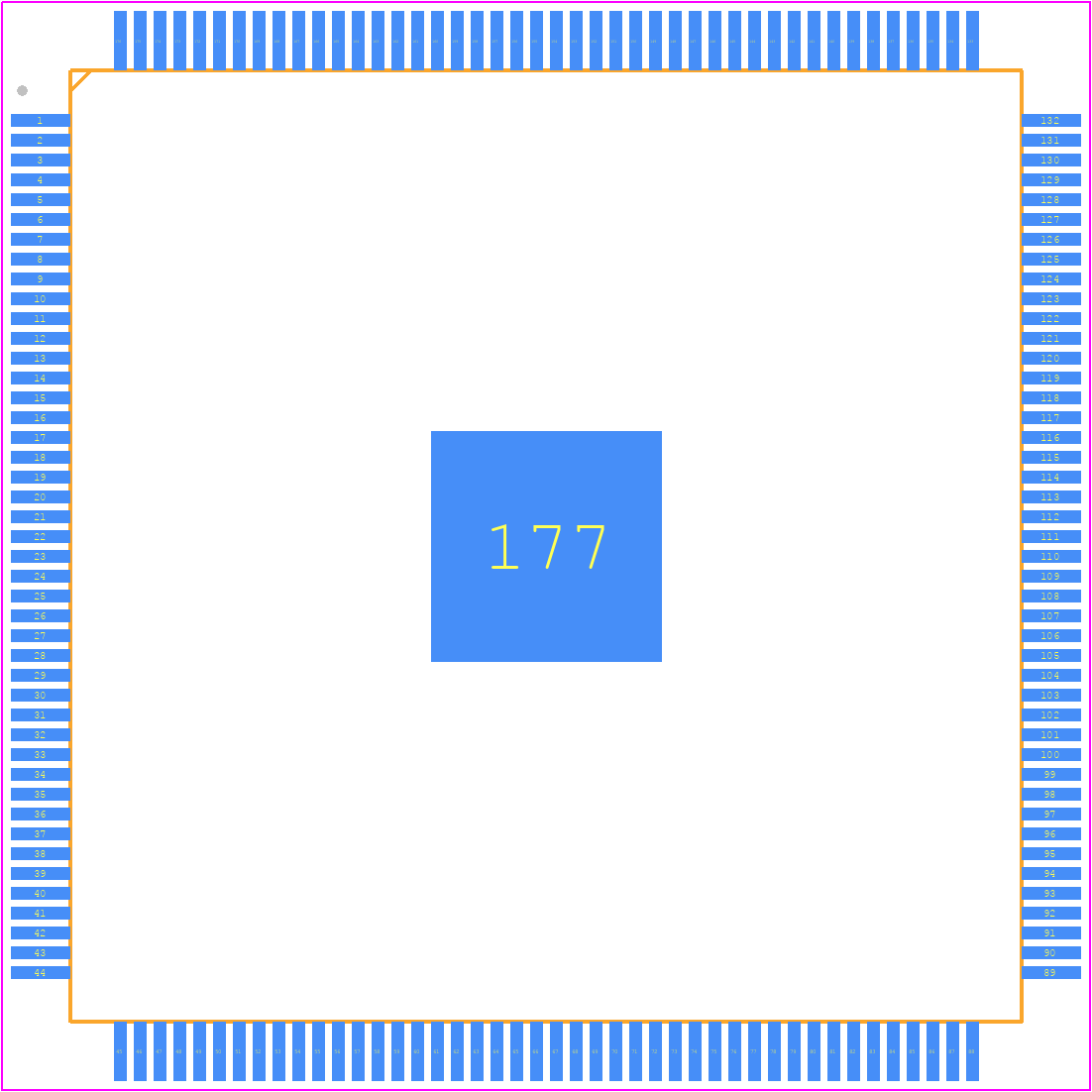

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADSP-BF518BSWZ4F16 by Analog Devices Inc
Results Overview of ADSP-BF518BSWZ4F16 by Analog Devices Inc
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADSP-BF518BSWZ4F16 Information
ADSP-BF518BSWZ4F16 by Analog Devices Inc is a Digital Signal Processor.
Digital Signal Processors are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for ADSP-BF518BSWZ4F16
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Quest Components | DIGITAL SIGNAL PROCESSOR, CMOS | 3 |
|
$56.4354 | Buy Now |
Part Details for ADSP-BF518BSWZ4F16
ADSP-BF518BSWZ4F16 CAD Models
ADSP-BF518BSWZ4F16 Part Data Attributes
|
|
ADSP-BF518BSWZ4F16
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADSP-BF518BSWZ4F16
Analog Devices Inc
Blackfin Embedded Processor w/ 16 Mbit Flash memory and IEEE-1588 support
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | , | |
| Pin Count | 176 | |
| Manufacturer Package Code | SQ-176-2 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Moisture Sensitivity Level | 3 | |
| Peak Reflow Temperature (Cel) | 260 | |
| Technology | CMOS | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| uPs/uCs/Peripheral ICs Type | DIGITAL SIGNAL PROCESSOR, OTHER |
