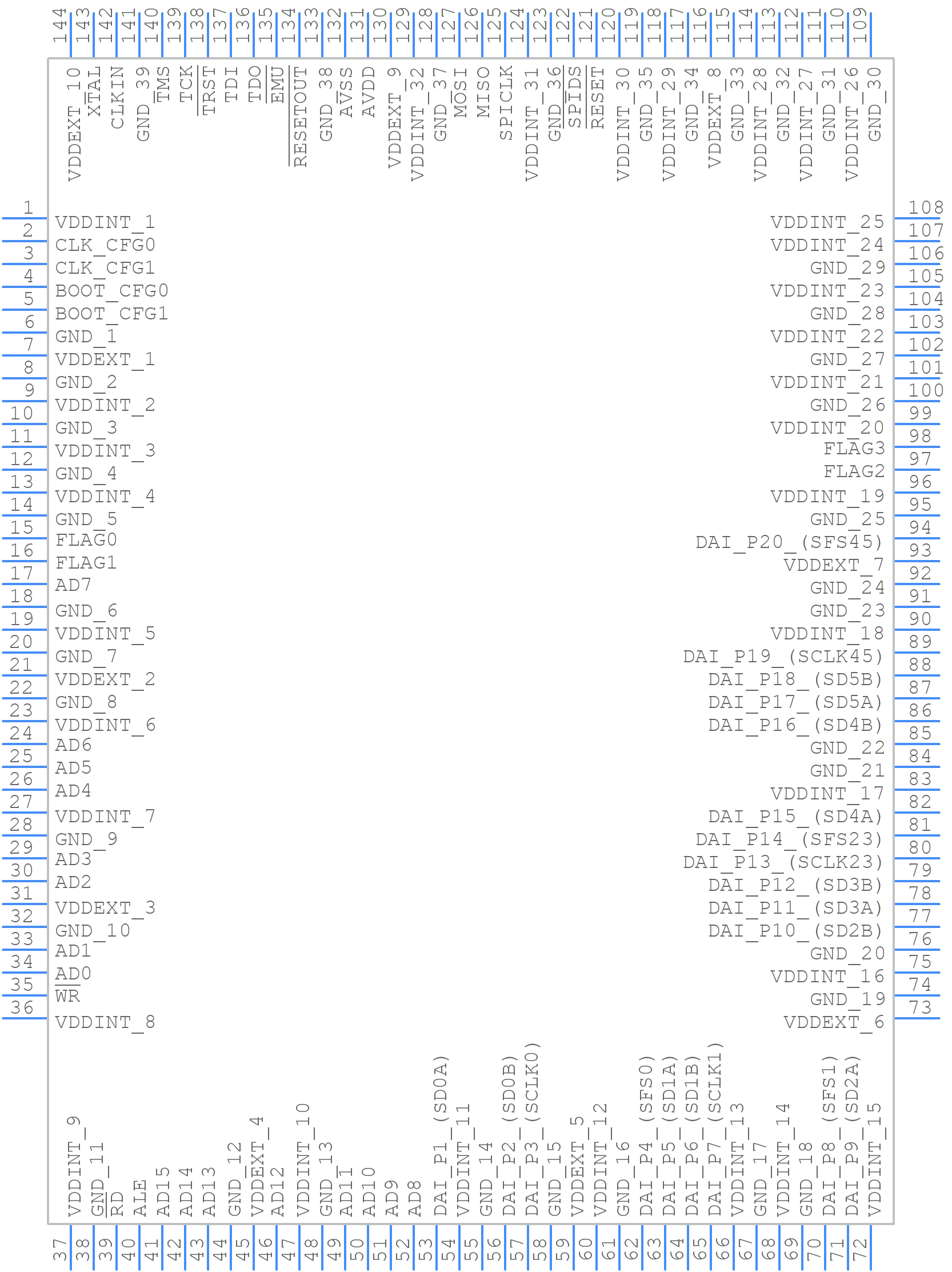

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADSP-21261SKSTZ150 by Analog Devices Inc
Results Overview of ADSP-21261SKSTZ150 by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
ADSP-21261SKSTZ150 Information
ADSP-21261SKSTZ150 by Analog Devices Inc is a Digital Signal Processor.
Digital Signal Processors are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for ADSP-21261SKSTZ150
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-ADSP-21261SKSTZ150-ND
|
DigiKey | IC DSP 32BIT 150MHZ 144LQFP Min Qty: 1 Lead time: 10 Weeks Container: Tray | Temporarily Out of Stock |
|
$11.8000 / $14.8700 | Buy Now |
|
DISTI #
584-ASP21261SKSTZ150
|
Mouser Electronics | Digital Signal Processors & Controllers - DSP, DSC 150 MHz, 32Bit DSP Processor RoHS: Compliant | 0 |
|
$11.8000 / $17.5400 | Order Now |
|
|
Analog Devices Inc | 150 MHz, 32Bit DSP Processor Package Multiple: 60 | 0 |
|
$12.3490 / $14.8700 | Buy Now |
|
|
LCSC | 3MB 150MHz LQFP-144(20x20) Digital Signal Processors (DSP/DSC) ROHS | 3 |
|
$13.3573 | Buy Now |
|
|
Vyrian | Peripheral ICs | 497 |
|
RFQ |
Part Details for ADSP-21261SKSTZ150
ADSP-21261SKSTZ150 CAD Models
ADSP-21261SKSTZ150 Part Data Attributes
|
|
ADSP-21261SKSTZ150
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADSP-21261SKSTZ150
Analog Devices Inc
3rd Generation, Low-Cost, 150 MHz SHARC Processor
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QFP | |
| Package Description | LEAD FREE, MS-026BFB, LQFP-144 | |
| Pin Count | 144 | |
| Manufacturer Package Code | ST-144 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | ALSO REQUIRES 3.3V SUPPLY | |
| Address Bus Width | 16 | |
| Barrel Shifter | YES | |
| Bit Size | 32 | |
| Boundary Scan | YES | |
| Clock Frequency-Max | 50 MHz | |
| External Data Bus Width | 16 | |
| Format | FLOATING POINT | |
| Internal Bus Architecture | MULTIPLE | |
| JESD-30 Code | S-PQFP-G144 | |
| JESD-609 Code | e3 | |
| Length | 20 mm | |
| Low Power Mode | NO | |
| Moisture Sensitivity Level | 3 | |
| Number of Terminals | 144 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP144,.87SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (words) | 49152 | |
| Seated Height-Max | 1.6 mm | |
| Supply Voltage-Max | 1.26 V | |
| Supply Voltage-Min | 1.14 V | |
| Supply Voltage-Nom | 1.2 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 20 mm | |
| uPs/uCs/Peripheral ICs Type | DIGITAL SIGNAL PROCESSOR, OTHER |
ADSP-21261SKSTZ150 Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VDDINT and VDDRTC simultaneously, followed by VDDCORE and VDDPLL. This ensures proper power-up and minimizes the risk of latch-up or other damage.
-
Optimizing performance requires understanding the application's requirements and configuring the processor accordingly. This includes selecting the optimal clock frequency, configuring the cache and memory, and using the most efficient instruction set for the task at hand.
-
The ADSP-21261 is a high-performance processor that can generate significant heat. Thermal management considerations include providing adequate heat sinking, ensuring good airflow, and using thermal interface materials to minimize thermal resistance.
-
Reliable data storage and retrieval require careful consideration of memory selection, data encoding, and error correction mechanisms. The ADSP-21261 supports various memory interfaces, including DDR2 and Flash, and provides error correction mechanisms such as ECC and CRC.
-
The ADSP-21261 is designed to meet various EMC standards, including EN 55022 and FCC Part 15. To ensure EMC compliance, designers should follow proper PCB layout and design practices, use shielding and filtering as needed, and perform thorough EMC testing.
