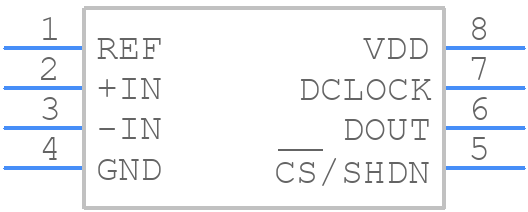

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADS8317IBDGKT by Texas Instruments
Results Overview of ADS8317IBDGKT by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ADS8317IBDGKT Information
ADS8317IBDGKT by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for ADS8317IBDGKT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-ADS8317IBDGKT-ND
|
DigiKey | IC ADC 16BIT SAR 8VSSOP Min Qty: 1 Lead time: 12 Weeks Container: Bulk MARKETPLACE PRODUCT |
188 In Stock |
|
$10.5700 | Buy Now |
|
DISTI #
296-22668-1-ND
|
DigiKey | IC ADC 16BIT SAR 8VSSOP Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
183 In Stock |
|
$10.5751 / $16.6900 | Buy Now |
|
DISTI #
595-ADS8317IBDGKT
|
Mouser Electronics | Analog to Digital Converters - ADC 16B 200kSPS Ser Out 2.7-5.5V Micro Pwr A 595-ADS8317IBDGKR RoHS: Compliant | 131 |
|
$10.5700 / $16.6900 | Buy Now |
|
DISTI #
85964608
|
Verical | 1-Channel Single ADC SAR 250ksps 16-bit Serial 8-Pin VSSOP T/R RoHS: Compliant Min Qty: 30 Package Multiple: 1 Date Code: 1101 | Americas - 119 |
|
$10.1625 / $12.7000 | Buy Now |
|
DISTI #
85965118
|
Verical | 1-Channel Single ADC SAR 250ksps 16-bit Serial 8-Pin VSSOP T/R RoHS: Compliant Min Qty: 30 Package Multiple: 1 | Americas - 69 |
|
$10.1625 / $12.7000 | Buy Now |
|
|
Rochester Electronics | ADS8317 16-Bit, Pseudo-Bipolar, Fully Diff Input, 250kSPS Serial Out, 2.7V-to-5.5V Micropower Sampling ADC RoHS: Compliant Status: Active Min Qty: 1 | 188 |
|
$8.1300 / $10.1600 | Buy Now |
|
|
LCSC | 16Bit 2.7V5.5V 250kHz SPI VSSOP-8 Analog to Digital Converters (ADC) ROHS | 20 |
|
$12.8946 / $16.0754 | Buy Now |
Part Details for ADS8317IBDGKT
ADS8317IBDGKT CAD Models
ADS8317IBDGKT Part Data Attributes
|
|
ADS8317IBDGKT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ADS8317IBDGKT
Texas Instruments
16-Bit, Pseudo-Bipolar, Fully Diff Input, 250kSPS Serial Out, 2.7V-to-5.5V Micropower Sampling ADC 8-VSSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | MSOP | |
| Package Description | VSSOP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Input Voltage-Max | 2.5 V | |
| Analog Input Voltage-Min | -1.25 V | |
| Conversion Time-Max | 666.7 µs | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 3 mm | |
| Linearity Error-Max (EL) | 0.0023% | |
| Moisture Sensitivity Level | 2 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 16 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | 2'S COMPLEMENT BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.25 MHz | |
| Sample and Hold / Track and Hold | SAMPLE | |
| Seated Height-Max | 1.1 mm | |
| Supply Current-Max | 3 mA | |
| Supply Voltage-Min | 2.7 V | |
| Supply Voltage-Nom | 2.7 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for ADS8317IBDGKT
This table gives cross-reference parts and alternative options found for ADS8317IBDGKT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADS8317IBDGKT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADS8317IDGKT | Texas Instruments | $5.9704 | 16-Bit, Pseudo-Bipolar, Fully Diff Input, 250kSPS Serial Out, 2.7V-to-5.5V Micropower Sampling ADC 8-VSSOP -40 to 85 | ADS8317IBDGKT vs ADS8317IDGKT |
| ADS8321E/250 | Texas Instruments | $6.7848 | 16-Bit, High-Speed, Micropower Sampling Analog-to-Digital Converter (ADC) 8-VSSOP -40 to 85 | ADS8317IBDGKT vs ADS8321E/250 |
| ADS8317IBDGKR | Texas Instruments | $7.2165 | 16-Bit, Pseudo-Bipolar, Fully Diff Input, 250kSPS Serial Out, 2.7V-to-5.5V Micropower Sampling ADC 8-VSSOP -40 to 85 | ADS8317IBDGKT vs ADS8317IBDGKR |
| ADS8317IBDGKTG4 | Texas Instruments | Check for Price | 1-CH 16-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO8, GREEN, PLASTIC, MSOP-8 | ADS8317IBDGKT vs ADS8317IBDGKTG4 |
| ADS8317IDGKTG4 | Texas Instruments | Check for Price | 16-Bit, Pseudo Bipolar, Fully Diff Input, 250kSPS Serial Out, 2.7V to 5.5V Micro Power Sampling ADC 8-VSSOP -40 to 85 | ADS8317IBDGKT vs ADS8317IDGKTG4 |
| ADS8321EB/2K5G4 | Texas Instruments | Check for Price | 16-Bit, High-Speed, Micropower Sampling Analog-to-Digital Converter (ADC) 8-VSSOP -40 to 85 | ADS8317IBDGKT vs ADS8321EB/2K5G4 |
| ADS8321E/250G4 | Texas Instruments | Check for Price | 16-Bit, High-Speed, Micropower Sampling Analog-to-Digital Converter (ADC) 8-VSSOP -40 to 85 | ADS8317IBDGKT vs ADS8321E/250G4 |
| ADS8321EB/250 | Burr-Brown Corp | Check for Price | ADC, Successive Approximation, 16-Bit, 1 Func, 1 Channel, Serial Access, CMOS, PDSO8, MSOP-8 | ADS8317IBDGKT vs ADS8321EB/250 |
| ADS8317IDGKRG4 | Texas Instruments | Check for Price | 1-CH 16-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO8, GREEN, PLASTIC, MSOP-8 | ADS8317IBDGKT vs ADS8317IDGKRG4 |
| ADS8321E/2K5 | Burr-Brown Corp | Check for Price | ADC, Successive Approximation, 16-Bit, 1 Func, 1 Channel, Serial Access, CMOS, PDSO8, MSOP-8 | ADS8317IBDGKT vs ADS8321E/2K5 |
ADS8317IBDGKT Frequently Asked Questions (FAQ)
-
Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog signals should be routed close to the ADC, and the digital signals should be routed away from the ADC. Additionally, the power and ground pins should be decoupled with 0.1uF and 10uF capacitors.
-
The ADS8317IBDGKT has an internal calibration circuit that can be used to calibrate the ADC. The calibration process involves applying a known input voltage and then reading the output code. The gain and offset errors can be calculated and corrected using the calibration data. Texas Instruments provides a calibration procedure in the datasheet and in application notes.
-
The maximum sampling rate of the ADS8317IBDGKT is 100kSPS. The power consumption of the ADC increases with the sampling rate. At 100kSPS, the power consumption is approximately 15mW. The power consumption can be reduced by reducing the sampling rate or by using the power-down mode.
-
The ADS8317IBDGKT has a serial interface that can be connected to a microcontroller or FPGA. The interface is compatible with SPI, QSPI, and MICROWIRE protocols. The ADC can be controlled and data can be read using the serial interface. Texas Instruments provides example code and interface diagrams in the datasheet and application notes.
-
The ADS8317IBDGKT has an operating temperature range of -40°C to 125°C. The performance of the ADC may be affected by temperature changes. The gain and offset errors may increase with temperature, and the conversion time may increase at lower temperatures. Texas Instruments provides temperature coefficients for the ADC in the datasheet.
