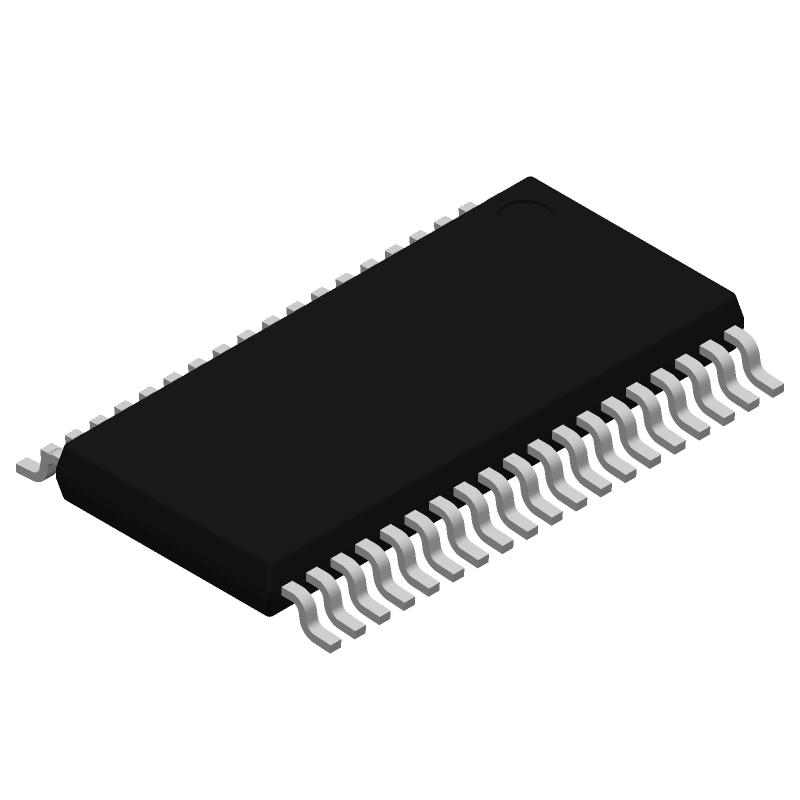

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADS7957SDBTR by Texas Instruments
Results Overview of ADS7957SDBTR by Texas Instruments
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ADS7957SDBTR Information
ADS7957SDBTR by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for ADS7957SDBTR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ADS7957SDBTR-ND
|
DigiKey | IC ADC 10BIT SAR 38TSSOP Min Qty: 2000 Lead time: 12 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$4.4592 | Buy Now |
|
DISTI #
595-ADS7957SDBTR
|
Mouser Electronics | Analog to Digital Converters - ADC 10B 1MSPS 16Ch Sgl E nded Micro Pwr A 595-ADS7957SDBT RoHS: Compliant | 0 |
|
$4.2500 | Order Now |
|
DISTI #
V72:2272_07229471
|
Arrow Electronics | 16-Channel Single ADC SAR 1Msps 10-bit Serial 38-Pin TSSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 1701 Container: Cut Strips | Americas - 2 |
|
$4.4760 | Buy Now |
|
DISTI #
31663019
|
Verical | 16-Channel Single ADC SAR 1Msps 10-bit Serial 38-Pin TSSOP T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 1701 | Americas - 2 |
|
$4.4760 | Buy Now |
|
|
Quest Components | 912 |
|
$7.3325 / $14.6649 | Buy Now | |
|
DISTI #
ADS7957SDBTR
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 284 |
|
$2.8100 / $4.2600 | Buy Now |
|
|
LCSC | 12Bit 2.7V5.25V 1MHz serial TFSOP-38-175mil Analog to Digital Converters (ADC) ROHS | 2 |
|
$9.0196 / $9.3151 | Buy Now |
|
|
Vyrian | Converters | 3020 |
|
RFQ |
Part Details for ADS7957SDBTR
ADS7957SDBTR CAD Models
ADS7957SDBTR Part Data Attributes
|
|
ADS7957SDBTR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ADS7957SDBTR
Texas Instruments
10 bit, 1 MSPS, 16 Ch, Single Ended, Micro Power, sr i/f, SAR ADC 38-TSSOP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | TSSOP-38 | |
| Pin Count | 38 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Input Voltage-Max | 5.25 V | |
| Analog Input Voltage-Min | ||
| Conversion Time-Max | 0.8 µs | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | R-PDSO-G38 | |
| JESD-609 Code | e4 | |
| Length | 9.7 mm | |
| Linearity Error-Max (EL) | 0.0488% | |
| Moisture Sensitivity Level | 2 | |
| Number of Analog In Channels | 16 | |
| Number of Bits | 10 | |
| Number of Functions | 1 | |
| Number of Terminals | 38 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP38,.25,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 1 MHz | |
| Sample and Hold / Track and Hold | SAMPLE | |
| Seated Height-Max | 1.2 mm | |
| Supply Current-Max | 3 mA | |
| Supply Voltage-Min | 1.7 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
Alternate Parts for ADS7957SDBTR
This table gives cross-reference parts and alternative options found for ADS7957SDBTR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADS7957SDBTR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADS7957SDBTG4 | Texas Instruments | Check for Price | 16-CH 10-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO38, GREEN, TSSOP-38 | ADS7957SDBTR vs ADS7957SDBTG4 |
ADS7957SDBTR Frequently Asked Questions (FAQ)
-
Texas Instruments provides a layout guide in the datasheet, but for optimal performance, it's recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and use a solid ground plane. Additionally, keep the analog input traces short and away from digital signals.
-
To minimize EMI, use a low-inductance path for the digital outputs, keep the output traces short and away from sensitive analog signals, and consider using a low-pass filter or a series resistor to reduce the output signal's high-frequency content.
-
The recommended power-up sequence is to apply the analog supply voltage (AVDD) first, followed by the digital supply voltage (DVDD), and then the clock signal. This ensures that the internal analog and digital circuits are properly initialized and avoids latch-up or other issues.
-
The ADS7957SDBTR has an internal calibration circuit that can be enabled through the CAL pin. Apply a calibration signal to the CAL pin, and the device will automatically adjust its internal offset and gain to achieve optimal accuracy and linearity.
-
The maximum clock frequency for the ADS7957SDBTR is 20 MHz. Using a higher clock frequency may result in increased power consumption, reduced signal-to-noise ratio, and potential issues with metastability or clock jitter.
