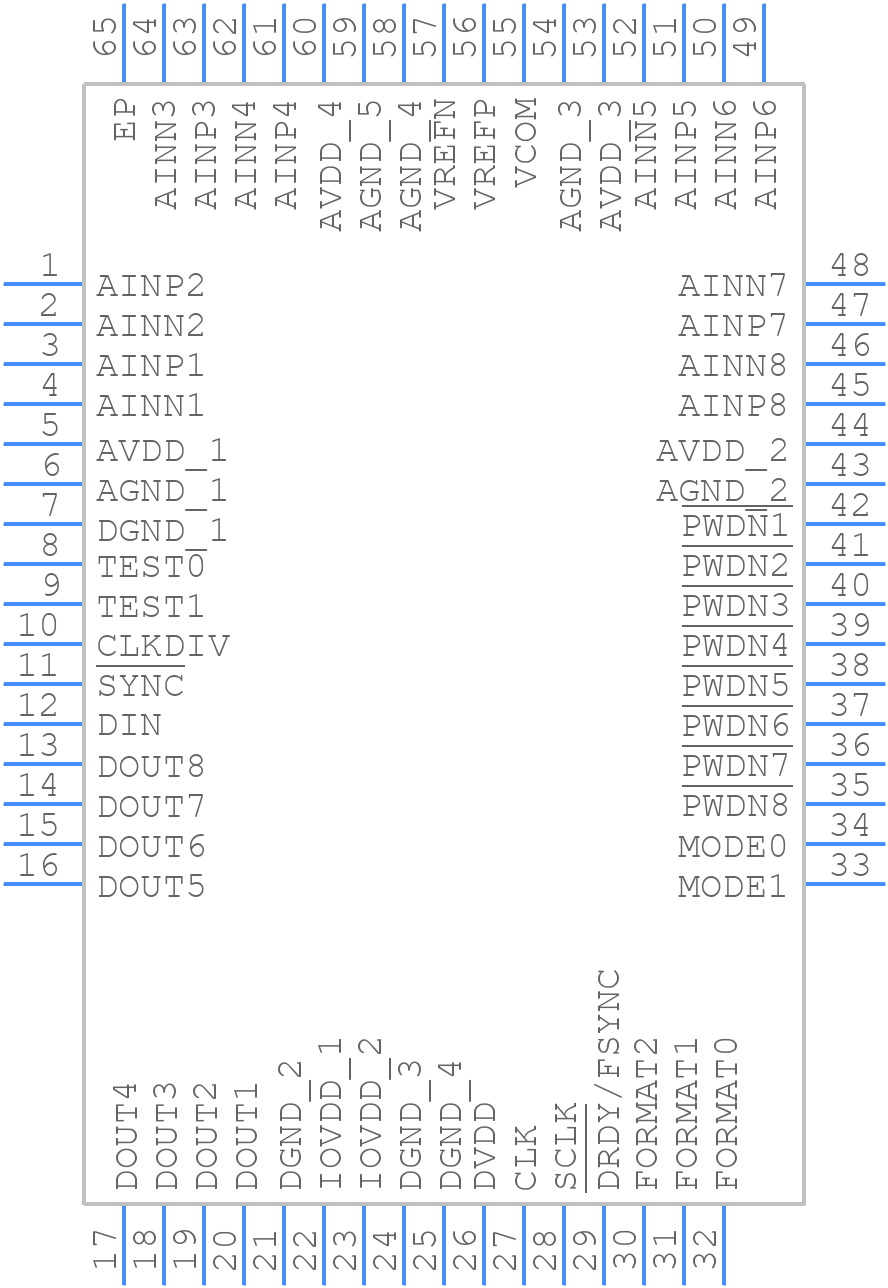

Part Symbol
-
Footprint
-

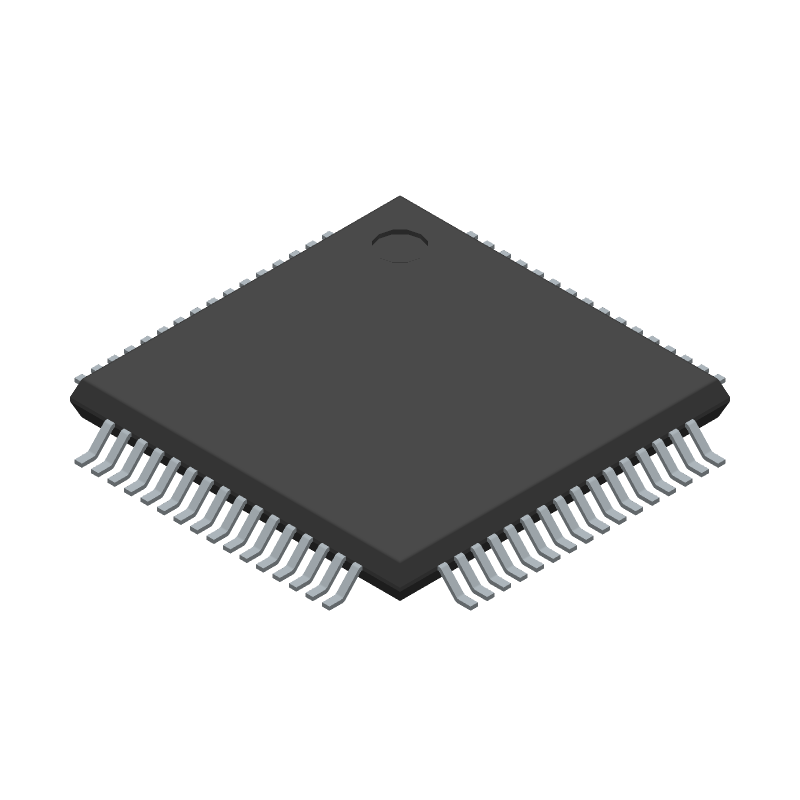

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADS1278IPAPR by Texas Instruments
Results Overview of ADS1278IPAPR by Texas Instruments
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ADS1278IPAPR Information
ADS1278IPAPR by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for ADS1278IPAPR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-43628-1-ND
|
DigiKey | IC ADC 24BIT SIGMA-DELTA 64HTQFP Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1216 In Stock |
|
$32.2949 / $47.7800 | Buy Now |
|
DISTI #
595-ADS1278IPAPR
|
Mouser Electronics | Analog to Digital Converters - ADC Quad 128kHz Simul 24 B Delta Sigma ADC A 595-ADS1278IPAPT RoHS: Compliant | 892 |
|
$32.2900 / $44.6700 | Buy Now |
|
DISTI #
V72:2272_07222540
|
Arrow Electronics | 8-Channel Octal ADC Delta-Sigma 144ksps 24-bit Serial 64-Pin HTQFP EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Container: Cut Strips | Americas - 658 |
|
$31.2200 / $35.0800 | Buy Now |
|
DISTI #
31653357
|
Verical | 8-Channel Octal ADC Delta-Sigma 144ksps 24-bit Serial 64-Pin HTQFP EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 | Americas - 658 |
|
$35.0800 | Buy Now |
|
|
Rochester Electronics | ADS1278 24-Bit, 144kSPS, 8-Ch Simultaneous-Sampling Delta-Sigma ADC for Wide Bandwidth Applications RoHS: Compliant Status: Active Min Qty: 1 | 2 |
|
$25.5700 / $31.9600 | Buy Now |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
|
LCSC | 24Bit 5V5.25V SPI HTQFP-64(10x10) Analog to Digital Converters (ADC) ROHS | 135 |
|
$21.7722 / $23.2861 | Buy Now |
|
|
Vyrian | Converters | 13020 |
|
RFQ | |
|
|
Win Source Electronics | 8-Channel Octal ADC Delta-Sigma 128ksps 24-bit Serial 64-Pin HTQFP EP T/R / IC ADC 24BIT 10K-144K 64TQFP | 7300 |
|
$18.3333 / $23.6805 | Buy Now |
Part Details for ADS1278IPAPR
ADS1278IPAPR CAD Models
ADS1278IPAPR Part Data Attributes
|
|
ADS1278IPAPR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ADS1278IPAPR
Texas Instruments
24-Bit, 144kSPS, 8-Ch Simultaneous-Sampling Delta-Sigma ADC for Wide Bandwidth Applications 64-HTQFP -40 to 105
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFP | |
| Package Description | HTQFP-64 | |
| Pin Count | 64 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Input Voltage-Max | 5.25 V | |
| Analog Input Voltage-Min | ||
| Converter Type | ADC, DELTA-SIGMA | |
| JESD-30 Code | S-PQFP-G64 | |
| JESD-609 Code | e4 | |
| Length | 10 mm | |
| Linearity Error-Max (EL) | 0.0012% | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 8 | |
| Number of Bits | 24 | |
| Number of Functions | 1 | |
| Number of Terminals | 64 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | 2'S COMPLEMENT BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HTFQFP | |
| Package Equivalence Code | TQFP64,.47SQ | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.144 MHz | |
| Seated Height-Max | 1.2 mm | |
| Supply Current-Max | 145 mA | |
| Supply Voltage-Min | 1.65 V | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 10 mm |
Alternate Parts for ADS1278IPAPR
This table gives cross-reference parts and alternative options found for ADS1278IPAPR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADS1278IPAPR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADS1278HPAP | Texas Instruments | $117.7082 | High-Temperature Quad/Octal, Simultaneous-Sampling, 24-Bit Analog-to-Digital Converter 64-HTQFP -55 to 175 | ADS1278IPAPR vs ADS1278HPAP |
| ADS1278WHFQ-MLS | Texas Instruments | $14,082.9840 | Radiation Hardened 24-Bit 8-Ch Simultaneous-Sampling Delta-Sigma ADC 84-CFP -55 to 115 | ADS1278IPAPR vs ADS1278WHFQ-MLS |
| ADS1278IPAPT | Texas Instruments | $27.0369 | 24-Bit, 144kSPS, 8-Ch Simultaneous-Sampling Delta-Sigma ADC for Wide Bandwidth Applications 64-HTQFP -40 to 105 | ADS1278IPAPR vs ADS1278IPAPT |
| ADS1278SHFQ | Texas Instruments | $349.1386 | High-Temperature Quad/Octal, Simultaneous-Sampling, 24-Bit Analog-to-Digital Converter 84-CFP -55 to 210 | ADS1278IPAPR vs ADS1278SHFQ |
| ADS1278MPAPTEP | Texas Instruments | $41.2505 | Enhanced Product Octal, 144kHz, Simultaneous Sampling 24-Bit Delta Sigma ADC 64-HTQFP -55 to 125 | ADS1278IPAPR vs ADS1278MPAPTEP |
| ADS1278SHKP | Texas Instruments | $439.9143 | High-Temperature Quad/Octal, Simultaneous-Sampling, 24-Bit Analog-to-Digital Converter 84-CFP -55 to 210 | ADS1278IPAPR vs ADS1278SHKP |
| ADS1278IPAPTG4 | Texas Instruments | Check for Price | 24-Bit, 144kSPS, 8-Ch Simultaneous-Sampling Delta-Sigma ADC for Wide Bandwidth Applications 64-HTQFP -40 to 105 | ADS1278IPAPR vs ADS1278IPAPTG4 |
| V62/12600-01EX | Texas Instruments | Check for Price | Enhanced Product Octal, 144kHz, Simultaneous Sampling 24-Bit Delta Sigma ADC 64-HTQFP -55 to 125 | ADS1278IPAPR vs V62/12600-01EX |
| ADS1278IPAPRG4 | Texas Instruments | Check for Price | 8-CH 24-BIT DELTA-SIGMA ADC, SERIAL ACCESS, PQFP64, GREEN, PLASTIC, HTQFP-64 | ADS1278IPAPR vs ADS1278IPAPRG4 |
