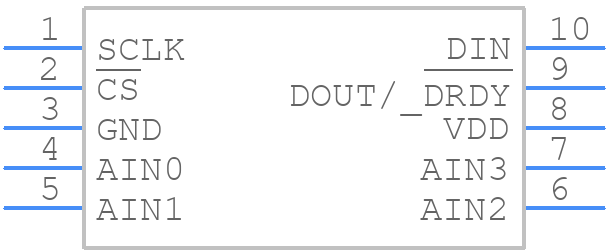

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADS1018IDGST by Texas Instruments
Results Overview of ADS1018IDGST by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ADS1018IDGST Information
ADS1018IDGST by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for ADS1018IDGST
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-35612-1-ND
|
DigiKey | IC ADC 12BIT SIGMA-DELTA 10VSSOP Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1462 In Stock |
|
$2.1590 / $3.9700 | Buy Now |
|
DISTI #
595-ADS1018IDGST
|
Mouser Electronics | Analog to Digital Converters - ADC 12-Bit ADC w/ Intg M UX PGA Temp Sensor A 595-ADS1018IDGSR RoHS: Compliant | 3912 |
|
$2.0500 / $3.9700 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 220 |
|
RFQ | |
|
|
LCSC | 2V5.5V 12Bit 3.3kHz SPI VSSOP-10-0.5mm Analog to Digital Converters (ADC) ROHS | 45 |
|
$1.6678 / $1.7653 | Buy Now |
|
|
Vyrian | Converters | 1675 |
|
RFQ | |
|
|
Win Source Electronics | Ultra-Small, Low-Power, SPI™-Compatible, 12-Bit, Analog-to-Digital Converter and Temperature Sensor with Internal Reference | IC ADC 12BIT SIGMA-DELTA 10VSSOP | 10820 |
|
$1.7325 / $2.2379 | Buy Now |
Part Details for ADS1018IDGST
ADS1018IDGST CAD Models
ADS1018IDGST Part Data Attributes
|
|
ADS1018IDGST
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ADS1018IDGST
Texas Instruments
12-bit, 3.3-kSPS, 4-channel, delta-sigma ADC with PGA, oscillator, VREF, temp sensor and SPI 10-VSSOP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SSOP | |
| Package Description | VSSOP-10 | |
| Pin Count | 10 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Input Voltage-Max | 5.5 V | |
| Analog Input Voltage-Min | ||
| Converter Type | ADC, DELTA-SIGMA | |
| JESD-30 Code | S-PDSO-G10 | |
| JESD-609 Code | e4 | |
| Length | 3 mm | |
| Linearity Error-Max (EL) | 0.0122% | |
| Moisture Sensitivity Level | 2 | |
| Number of Analog In Channels | 4 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | 2'S COMPLEMENT BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Sample Rate | 0.0033 MHz | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Min | 2 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
ADS1018IDGST Frequently Asked Questions (FAQ)
-
The maximum sampling rate of the ADS1018 is 3300 samples per second (SPS) for a single channel, and 1500 SPS for multiple channels.
-
The gain settings on the ADS1018 can be configured using the PGA (Programmable Gain Amplifier) bits in the Config Register. The PGA bits allow you to set the gain to 2/3, 4, 5, 6, 8, or 16.
-
The COMP pin is a comparator output that can be used to generate an interrupt when the analog input voltage exceeds a certain threshold. This can be useful for applications that require fast response to changes in the input signal.
-
The ADS1018 does not require calibration in the classical sense. However, you may need to perform a system-level calibration to account for any offsets or gain errors in your specific application. This can typically be done by taking measurements at known input voltages and adjusting the digital output accordingly.
-
The power consumption of the ADS1018 depends on the operating mode and the sampling rate. In low-power mode, the typical current consumption is around 150 μA, while in high-speed mode, it can be up to 1.5 mA.
