ADRF5720BCCZN Information
ADRF5720BCCZN by Analog Devices Inc is an RF/Microwave Attenuator.
RF/Microwave Attenuators are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for ADRF5720BCCZN
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AK8836
|
Newark | Digital Attenuator, 9Khz-40Ghz, Lga-Ep, Frequency Max:40Ghz, Frequency Min:9Khz, Attenuation Step Size:0.5Db, Attenuation - Typical:31.5Db, Insertion Loss:4.6Db, No. Of Bits:6Bit, Supply Voltage Min:3.15V, Supply Voltage Max:3.45V Rohs Compliant: Yes |Analog Devices ADRF5720BCCZN RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 2 |
|
$121.3000 / $143.9800 | Buy Now |
|
DISTI #
505-ADRF5720BCCZN-ND
|
DigiKey | 0.5DB LSB,6-BIT,SILICON DIGITAL Min Qty: 1 Lead time: 10 Weeks Container: Strip | Temporarily Out of Stock |
|
$117.0068 / $139.1100 | Buy Now |
|
DISTI #
584-ADRF5720BCCZN
|
Mouser Electronics | Attenuators 0.5dB LSB,6-Bit,Silicon Digital Atten RoHS: Compliant | 46 |
|
$116.3100 / $139.1100 | Buy Now |
|
|
Analog Devices Inc | 0.5dB LSB,6-Bit,Silicon Digita Package Multiple: 1 | 3221 |
|
$80.9500 / $139.1100 | Buy Now |
|
DISTI #
35215672
|
Verical | 6Bit 0.5dBStep 31.5dB 40GHz 24-Pin LGA EP Cut Tape RoHS: Compliant Min Qty: 6 Package Multiple: 6 | Americas - 3216 |
|
$101.8239 | Buy Now |
|
DISTI #
ADRF5720BCCZN
|
Richardson RFPD | ATTENUATOR - DIGITALLY CONTROLLED RoHS: Compliant Min Qty: 1 | 0 |
|
$121.4200 | Buy Now |
|
|
Cytech Systems Limited | 0.5DB LSB,6-BIT,SILICON DIGITAL | 1050 |
|
RFQ | |
|
|
MacroQuest Electronics | STOCK | 100 |
|
$276.9000 | Buy Now |
|
|
Vyrian | RF & Microwave | 73 |
|
RFQ | |
|
|
Win Source Electronics | 0.5DB LSB,6-BIT,SILICON DIGITAL | 360 |
|
$134.9179 / $155.6744 | Buy Now |
Part Details for ADRF5720BCCZN

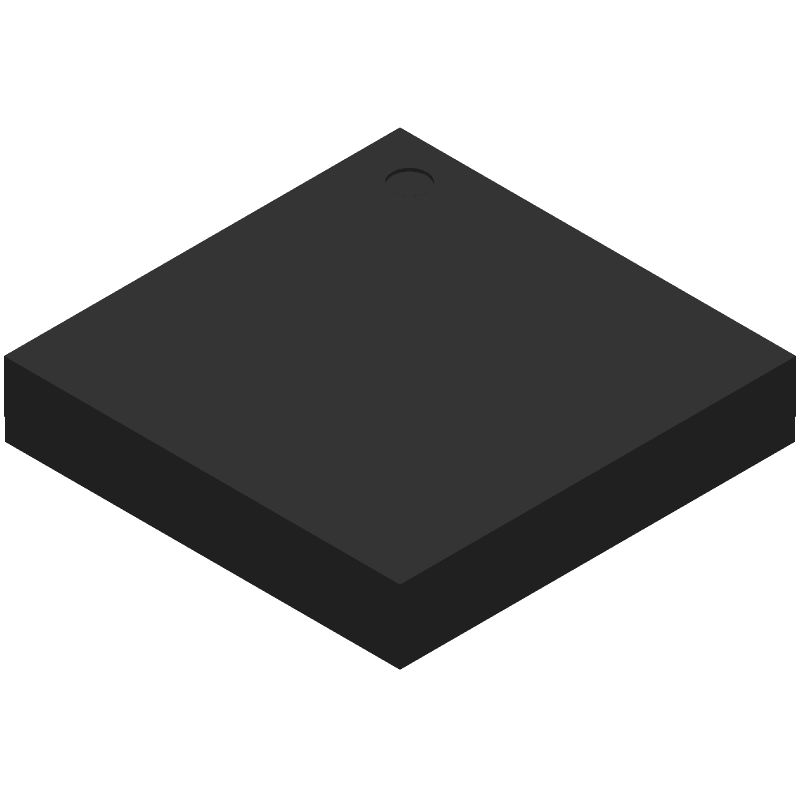

ADRF5720BCCZN CAD Models
ADRF5720BCCZN Part Data Attributes
|
|
ADRF5720BCCZN
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADRF5720BCCZN
Analog Devices Inc
0.5 dB LSB, 6-Bit, Silicon Digital Attenuator, 9 kHz to 40 GHz
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | LGA-24 | |
| Pin Count | 24 | |
| Manufacturer Package Code | CC-24-5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2018-07-26 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | CMOS COMPATIBLE, I/P POWER-MAX(PEAK)=1.26W | |
| Attenuation-Nom | 31.5 dB | |
| Characteristic Impedance | 50 Ω | |
| Construction | COMPONENT | |
| Input Power-Max (CW) | 27.99 dBm | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 24 | |
| Operating Frequency-Max | 40000 MHz | |
| Operating Frequency-Min | 0.009 MHz | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | LCC24,.16SQ,20 | |
| Power Supplies | +-3.3 V | |
| RF/Microwave Device Type | VARIABLE ATTENUATOR | |
| Surface Mount | YES | |
| Technology | CMOS |
