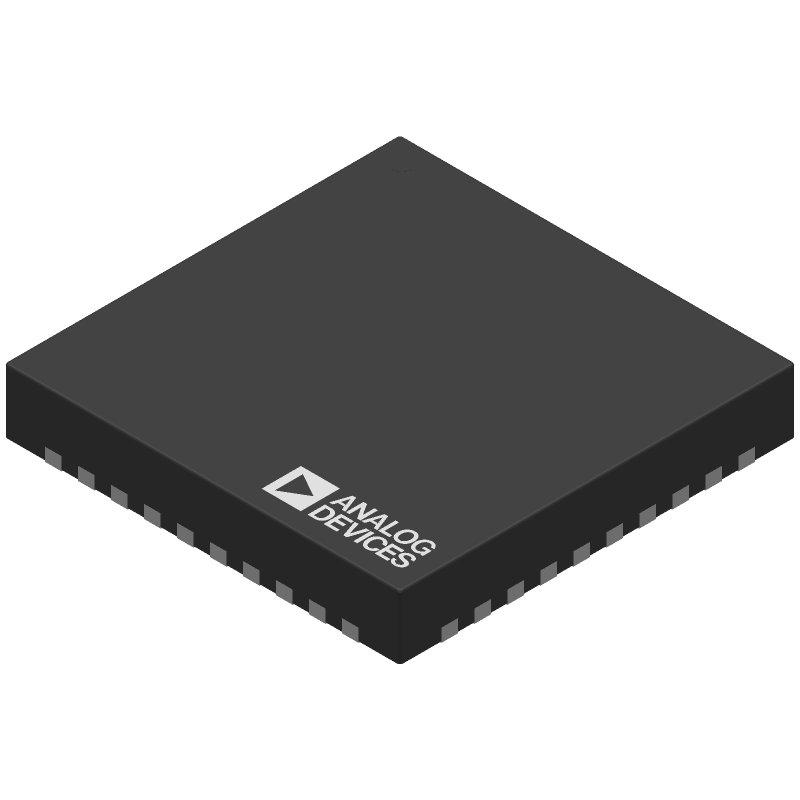

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADRF5547BCPZN-R7 by Analog Devices Inc
Results Overview of ADRF5547BCPZN-R7 by Analog Devices Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Telecommunications
ADRF5547BCPZN-R7 Information
ADRF5547BCPZN-R7 by Analog Devices Inc is a Cellular Telephone Circuit.
Cellular Telephone Circuits are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for ADRF5547BCPZN-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-ADRF5547BCPZN-R7CT-ND
|
DigiKey | 4.0 - 5.5GHZ LNA + 40W SPDT, DUA Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
563 In Stock |
|
$18.7792 / $27.1100 | Buy Now |
|
DISTI #
584-ADRF5547BCPZN-R7
|
Mouser Electronics | RF Front End 4.0 - 5.5GHz LNA + 40W SPDT, Dual channe RoHS: Compliant | 337 |
|
$16.7800 / $26.8700 | Buy Now |
|
|
Analog Devices Inc | 4.0 - 5.5GHz LNA + 40W SPDT, D Min Qty: 1 Package Multiple: 750 | 113 |
|
$13.4300 / $26.8700 | Buy Now |
|
DISTI #
ADRF5547BCPZNR7
|
Richardson RFPD | RF AND MMW FRONT END MODULE RoHS: Compliant Min Qty: 750 | 0 |
|
$17.5600 / $17.7900 | Buy Now |
Part Details for ADRF5547BCPZN-R7
ADRF5547BCPZN-R7 CAD Models
ADRF5547BCPZN-R7 Part Data Attributes
|
|
ADRF5547BCPZN-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADRF5547BCPZN-R7
Analog Devices Inc
Dual-Channel, 3.7 GHz to 5.3 GHz, Receiver Front End
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Pin Count | 40 | |
| Manufacturer Package Code | CP-40-15 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2019-10-09 | |
| Samacsys Manufacturer | Analog Devices | |
| JESD-30 Code | S-XQCC-N40 | |
| Length | 6 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 40 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC40,.24SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1 mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Telecom IC Type | RF FRONT END CIRCUIT | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 6 mm |
ADRF5547BCPZN-R7 Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the RF input, and the output should be routed away from the input to minimize feedback. A microstrip or coplanar waveguide layout is recommended for the RF traces.
-
The device requires a single 5V supply voltage. Ensure that the voltage supply is clean and well-regulated, and that the device is properly decoupled with 100nF and 10uF capacitors. The bias voltage should be applied to the VCC pin, and the VEE pin should be connected to ground.
-
The maximum power handling of the ADRF5547BCPZN-R7 is 23 dBm. Exceeding this power level may result in reduced performance, increased distortion, or even device damage.
-
The device can be optimized for a specific frequency band by adjusting the external matching components. The datasheet provides a starting point for the matching network, but further optimization may be required for optimal performance. Use a network analyzer or simulation software to optimize the matching network for the desired frequency band.
-
The operating temperature range of the ADRF5547BCPZN-R7 is -40°C to 85°C. The device is designed to operate within this temperature range, but performance may degrade at extreme temperatures.
