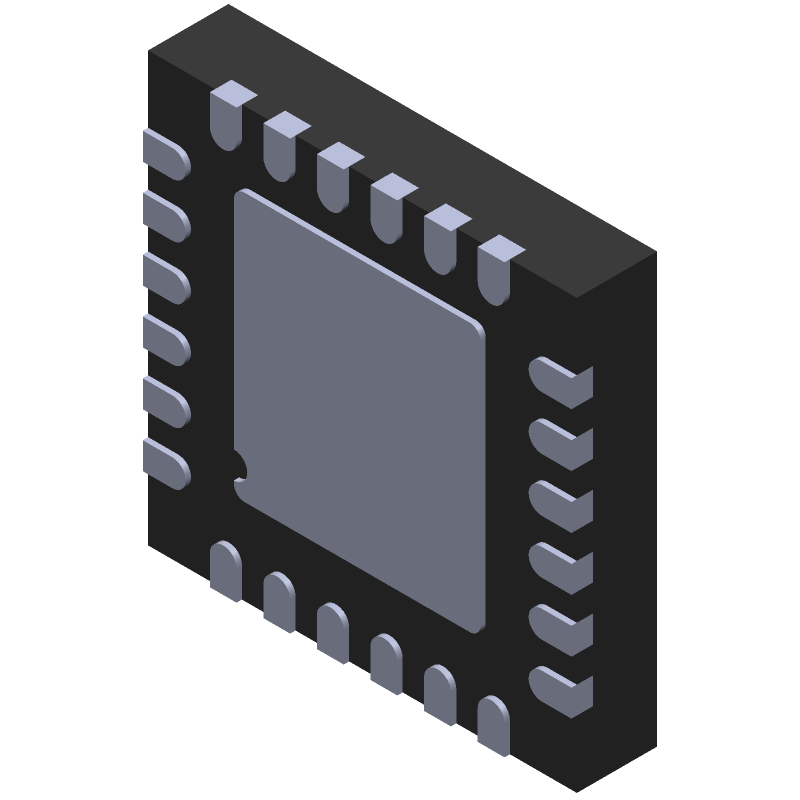

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADRF5040BCPZ by Analog Devices Inc
Results Overview of ADRF5040BCPZ by Analog Devices Inc
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Telecommunications
ADRF5040BCPZ Information
ADRF5040BCPZ by Analog Devices Inc is an RF/Microwave Switch.
RF/Microwave Switches are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for ADRF5040BCPZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AK8809
|
Newark | Rf Switch, Sp4T, Silicon, 12Ghz, Frequency Min:9Khz, Frequency Max:12Ghz, Rf Ic Case Style:Lfcsp-Ep, No. Of Pins:24Pins, Supply Voltage Min:3V, Supply Voltage Max:3.6V, Operating Temperature Min:-40°C, Operating Temperature Max:85°C Rohs Compliant: Yes |Analog Devices ADRF5040BCPZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$18.5800 / $29.0800 | Buy Now |
|
DISTI #
505-ADRF5040BCPZ-ND
|
DigiKey | IC RF SWITCH SP4T 12GHZ 24LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Strip |
1449 In Stock |
|
$21.7941 / $29.7100 | Buy Now |
|
DISTI #
584-ADRF5040BCPZ
|
Mouser Electronics | RF Switch ICs High isolation, SP4T, 9kHz - 12GHz RoHS: Compliant | 474 |
|
$19.5200 / $29.6400 | Buy Now |
|
DISTI #
V36:1790_16512794
|
Arrow Electronics | RF Switch SP4T 0.009MHz to 12GHz 20dB 24-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 33 Package Multiple: 33 Lead time: 10 Weeks Date Code: 2424 | Americas - 24 |
|
$19.4600 / $20.7900 | Buy Now |
|
|
Analog Devices Inc | High isolation, SP4T, 9kHz - 1 Package Multiple: 1 | 551 |
|
$13.6900 / $29.7200 | Buy Now |
|
DISTI #
26641146
|
Verical | RF Switch SP4T 0.009MHz to 12GHz 20dB 24-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 33 Package Multiple: 33 | Americas - 231 |
|
$18.6918 | Buy Now |
|
DISTI #
84386148
|
Verical | RF Switch SP4T 0.009MHz to 12GHz 20dB 24-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 24 Package Multiple: 24 Date Code: 2424 | Americas - 24 |
|
$19.4600 / $20.7900 | Buy Now |
|
DISTI #
ADRF5040BCPZ
|
Richardson RFPD | RF AND MICROWAVE SWITCH RoHS: Compliant Min Qty: 1 | 31 |
|
$20.7700 / $22.2900 | Buy Now |
|
|
Cytech Systems Limited | IC RF SWITCH SP4T 12GHZ 24LFCSP | 1 |
|
RFQ | |
|
|
LCSC | 9kHz12GHz 34dB 0.8dB LFCSP-24(4x4) RF Switches ROHS | 8 |
|
$15.8971 / $18.9356 | Buy Now |
Part Details for ADRF5040BCPZ
ADRF5040BCPZ CAD Models
ADRF5040BCPZ Part Data Attributes
|
|
ADRF5040BCPZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADRF5040BCPZ
Analog Devices Inc
High Isolation, Silicon SP4T, Nonreflective Switch, 9 kHz to 12.0 GHz
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | LFCSP-24 | |
| Pin Count | 24 | |
| Manufacturer Package Code | CP-24-16 | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2016-07-19 | |
| Samacsys Manufacturer | Analog Devices | |
| 1dB Compression Point | 37 dBm | |
| Characteristic Impedance | 50 Ω | |
| Construction | COMPONENT | |
| Input Power-Max (CW) | 34 dBm | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 24 | |
| On Time-Nom | 3.5 µs | |
| Operating Frequency-Max | 12000 MHz | |
| Operating Frequency-Min | 0.009 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Equivalence Code | LCC24,.16SQ,20 | |
| Power Supplies | +-3.3 V | |
| RF/Microwave Device Type | SP4T | |
| Supply Current-Max | 0.1 mA | |
| Surface Mount | YES | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
ADRF5040BCPZ Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from the digital lines. Use a common mode filter or a pi-filter to reduce EMI.
-
Ensure the VCC pin is connected to a stable 5V power supply, and the VEE pin is connected to a stable -5V power supply. Use a voltage regulator to regulate the power supply, and decouple the power supply lines with capacitors.
-
The ADRF5040BCPZ can handle up to 30 dBm of input power. However, it's recommended to operate it at a maximum of 20 dBm to ensure optimal performance and prevent damage to the device.
-
Use the internal bias circuitry to optimize the device for the desired frequency band. Adjust the bias voltage and current to achieve the optimal performance. Consult the datasheet and application notes for specific guidance.
-
The recommended operating temperature range for the ADRF5040BCPZ is -40°C to 85°C. However, the device can operate up to 125°C with reduced performance and reliability.
