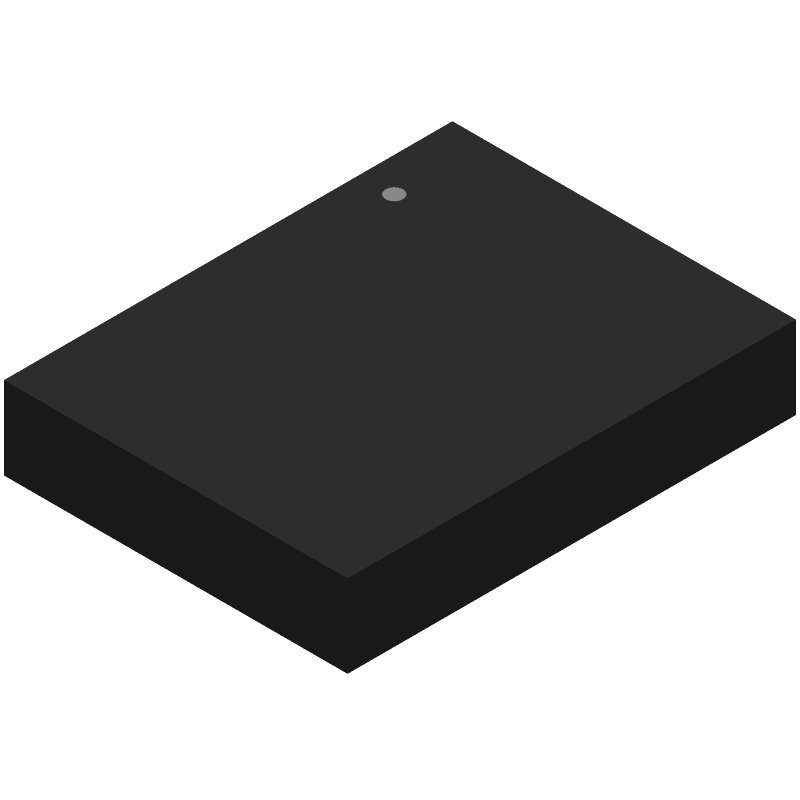

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADPD188BI-ACEZR7 by Analog Devices Inc
Results Overview of ADPD188BI-ACEZR7 by Analog Devices Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Healthcare
ADPD188BI-ACEZR7 Information
ADPD188BI-ACEZR7 by Analog Devices Inc is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for ADPD188BI-ACEZR7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AK8650
|
Newark | Sensor, I2C Digital, Spi, Lga, 24Pin, Supply Voltage Min:1.7V, Supply Voltage Max:1.9V, No. Of Pins:24Pins, Operating Temperature Min:-40°C, Operating Temperature Max:85°C, Product Range:Adpd188Bi Series, Msl:Msl 3 - 168 Hours Rohs Compliant: Yes |Analog Devices ADPD188BI-ACEZR7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 431 |
|
$6.9000 / $12.6300 | Buy Now |
|
DISTI #
505-ADPD188BI-ACEZR7CT-ND
|
DigiKey | SENSOR OPT 470850NMAMB 24 VFLGA Min Qty: 1 Lead time: 39 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$6.9000 / $13.5900 | Buy Now |
|
DISTI #
584-ADPD188BI-ACEZR7
|
Mouser Electronics | Smoke Detectors Optical Smoke Detector Module RoHS: Compliant | 18 |
|
$7.5300 / $12.5200 | Buy Now |
|
DISTI #
V72:2272_21802398
|
Arrow Electronics | Integrated Optical Module Digital Output 1.8V 24-Pin LGA T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 39 Weeks Date Code: 2230 Container: Cut Strips | Americas - 10 |
|
$7.0790 / $9.4530 | Buy Now |
|
|
Analog Devices Inc | Optical Smoke Detector Module Min Qty: 1000 Package Multiple: 1000 | 0 |
|
$6.9000 / $13.5900 | Buy Now |
|
DISTI #
63059362
|
Verical | Integrated Optical Module Digital Output 1.8V 24-Pin LGA T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2230 | Americas - 10 |
|
$7.0790 / $9.4530 | Buy Now |
|
|
Rochester Electronics | Optical Smoke Detector Module RoHS: Compliant Status: Active Min Qty: 1 | 154 |
|
$5.8000 / $7.2500 | Buy Now |
|
DISTI #
ADPD188BIACEZR7
|
Richardson RFPD | OPTICAL DETECTOR RoHS: Compliant Min Qty: 1000 | 0 |
|
$7.2200 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 682 |
|
RFQ | |
|
|
Win Source Electronics | SENSOR OPT 470NM/850NM AMB 24LGA / Optical Sensor Ambient 470nm, 850nm I2C, SPI 24-VFLGA Exposed Pad | 1860 |
|
$7.1226 / $9.1998 | Buy Now |
Part Details for ADPD188BI-ACEZR7
ADPD188BI-ACEZR7 CAD Models
ADPD188BI-ACEZR7 Part Data Attributes
|
|
ADPD188BI-ACEZR7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADPD188BI-ACEZR7
Analog Devices Inc
Integrated Optical Module for Smoke Detection
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Pin Count | 24 | |
| Manufacturer Package Code | CE-24-1 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 9031.80.80.85 | |
| Date Of Intro | 2018-06-08 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| JESD-30 Code | R-XBGA-N24 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Code | VFLGA | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY, VERY THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1 mm | |
| Supply Voltage-Max (Vsup) | 1.9 V | |
| Supply Voltage-Min (Vsup) | 1.7 V | |
| Supply Voltage-Nom (Vsup) | 1.8 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.8 mm |
ADPD188BI-ACEZR7 Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for decoupling and place it close to the device.
-
Calibrate the device regularly, use a high-quality sensor, and ensure proper shielding and grounding of the sensor and PCB. Also, use a stable power supply and minimize noise and interference in the system.
-
The maximum ambient temperature range for the ADPD188BI is -40°C to +85°C. However, the device can operate at a reduced accuracy at temperatures above 70°C.
-
While the ADPD188BI is optimized for use with Analog Devices sensors, it can be used with sensors from other manufacturers. However, the performance and accuracy may vary, and additional calibration may be required.
-
Check the power supply, grounding, and PCB layout. Verify that the sensor is properly connected and calibrated. Use a logic analyzer or oscilloscope to debug the digital interface. Consult the datasheet and application notes for troubleshooting guides.
