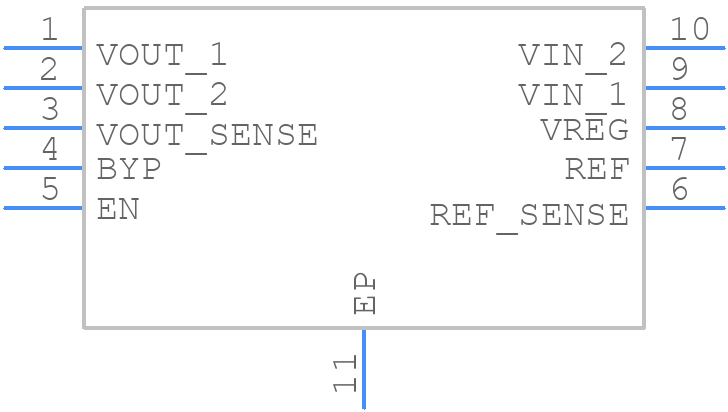

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADP7158ACPZ-2.0-R7 by Analog Devices Inc
Results Overview of ADP7158ACPZ-2.0-R7 by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADP7158ACPZ-2.0-R7 Information
ADP7158ACPZ-2.0-R7 by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADP7158ACPZ-2.0-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
06AM9675
|
Newark | Ldo, Fixed, 2V, 2A, -40 To 125Deg C Rohs Compliant: Yes |Analog Devices ADP7158ACPZ-2.0-R7 RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1430 |
|
$5.6600 / $9.7700 | Buy Now |
|
DISTI #
ADP7158ACPZ-2.0-R7CT-ND
|
DigiKey | IC REG LINEAR 2V 2A 10LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1031 In Stock |
|
$5.3750 / $11.2700 | Buy Now |
|
DISTI #
584-ADP7158ACPZ2.0R7
|
Mouser Electronics | LDO Voltage Regulators 3.3/5Vin 2A Ultra Low Noise LDO, Fixed RoHS: Compliant | 1352 |
|
$5.5700 / $9.7700 | Buy Now |
|
DISTI #
V72:2272_14442543
|
Arrow Electronics | LDO Regulator Pos 2V 2A 10-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 1622 Container: Cut Strips | Americas - 767 |
|
$5.5140 / $7.3720 | Buy Now |
|
|
Analog Devices Inc | 3.3/5Vin 2A Ultra Low Noise LD Min Qty: 1 Package Multiple: 1500 | 207 |
|
$3.9200 / $11.2700 | Buy Now |
|
DISTI #
ADP7158ACPZ20R7
|
Richardson RFPD | VOLTAGE REGULATOR RoHS: Compliant Min Qty: 1500 | 0 |
|
$5.6200 | Buy Now |
|
|
LCSC | 2A Fixed 2V Positive electrode 5.5V LFCSP-10(3x3) Voltage Regulators - Linear Low Drop Out (LDO) Regulators ROHS | 10 |
|
$11.8038 / $14.5300 | Buy Now |
Part Details for ADP7158ACPZ-2.0-R7
ADP7158ACPZ-2.0-R7 CAD Models
ADP7158ACPZ-2.0-R7 Part Data Attributes
|
|
ADP7158ACPZ-2.0-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADP7158ACPZ-2.0-R7
Analog Devices Inc
2 A, Ultralow Noise, High PSRR, Fixed Output, RF Linear Regulator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | LFCSP-10 | |
| Pin Count | 10 | |
| Manufacturer Package Code | CP-10-9 | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2016-03-17 | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustability | FIXED | |
| Dropout Voltage1-Nom | 0.3 V | |
| Input Voltage Absolute-Max | 7 V | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.3 V | |
| JESD-30 Code | S-PDSO-N10 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Line Regulation-Max | 0.0064% | |
| Load Regulation-Max | 0.01194% | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 2 A | |
| Output Voltage1-Max | 2.03 V | |
| Output Voltage1-Min | 1.97 V | |
| Output Voltage1-Nom | 2 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 0.85 mm | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 1.5% | |
| Width | 3 mm |
