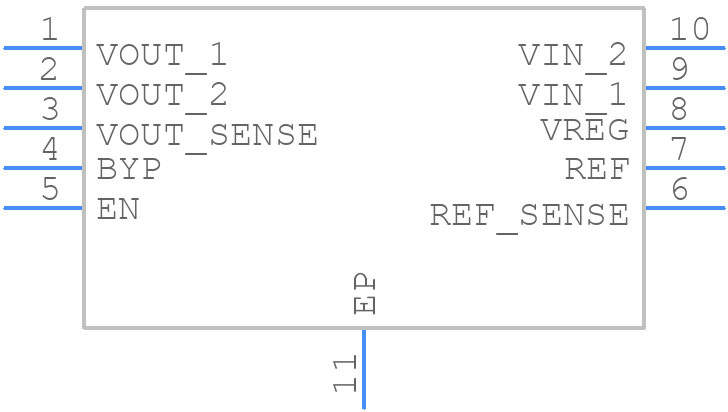

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADP7156ACPZ-2.5-R7 by Analog Devices Inc
Results Overview of ADP7156ACPZ-2.5-R7 by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (9 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
ADP7156ACPZ-2.5-R7 Information
ADP7156ACPZ-2.5-R7 by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADP7156ACPZ-2.5-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ADP7156ACPZ-2.5-R7CT-ND
|
DigiKey | IC REG LINEAR 2.5V 1.2A 10LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2461 In Stock |
|
$4.3250 / $9.5800 | Buy Now |
|
DISTI #
584-ADP7156ACPZ2.5R7
|
Mouser Electronics | LDO Voltage Regulators 3.3/5Vin 1.2A Ultra Low Noise LDO, Fixed RoHS: Compliant | 1814 |
|
$4.3200 / $5.6800 | Buy Now |
|
DISTI #
V72:2272_14442519
|
Arrow Electronics | LDO Regulator Pos 2.5V 1.2A 10-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Container: Cut Strips | Americas - 584 |
|
$2.4470 / $4.4503 | Buy Now |
|
|
Analog Devices Inc | 3.3/5Vin 1.2A Ultra Low Noise Min Qty: 1 Package Multiple: 1500 | 3493 |
|
$3.4600 / $9.5800 | Buy Now |
|
DISTI #
35217484
|
Verical | LDO Regulator Pos 2.5V 1.2A 10-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 | Americas - 3000 |
|
$4.2795 | Buy Now |
|
DISTI #
88962996
|
Verical | LDO Regulator Pos 2.5V 1.2A 10-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 | Americas - 584 |
|
$4.4503 | Buy Now |
|
|
Rochester Electronics | ADP7156 - 1.2 A, Fixed Output, RF Linear Regulator RoHS: Compliant Status: Active Min Qty: 1 | 37 |
|
$3.6400 / $4.5500 | Buy Now |
|
DISTI #
ADP7156ACPZ2.5R
|
Richardson RFPD | VOLTAGE REGULATOR RoHS: Compliant Min Qty: 1500 | 0 |
|
$4.5300 | Buy Now |
Part Details for ADP7156ACPZ-2.5-R7
ADP7156ACPZ-2.5-R7 CAD Models
ADP7156ACPZ-2.5-R7 Part Data Attributes
|
|
ADP7156ACPZ-2.5-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADP7156ACPZ-2.5-R7
Analog Devices Inc
1.2 A, Ultralow Noise, High PSRR, Fixed Output, RF Linear Regulator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | LFCSP-10 | |
| Pin Count | 10 | |
| Manufacturer Package Code | CP-10-9 | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2016-03-17 | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.17 V | |
| Input Voltage Absolute-Max | 7 V | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 3 V | |
| JESD-30 Code | S-XDSO-N10 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Line Regulation-Max | 0.00625% | |
| Load Regulation-Max | 0.08925% | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 1.2 A | |
| Output Voltage1-Max | 2.5375 V | |
| Output Voltage1-Min | 2.4625 V | |
| Output Voltage1-Nom | 2.5 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVSON | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 1.5% | |
| Width | 3 mm |
Alternate Parts for ADP7156ACPZ-2.5-R7
This table gives cross-reference parts and alternative options found for ADP7156ACPZ-2.5-R7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADP7156ACPZ-2.5-R7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| XC6504A2519R-G | Torex Semiconductor LTD | $0.2520 | Fixed Positive Standard Regulator, 2.5VCMOS, PDSO4, USPQ-4 | ADP7156ACPZ-2.5-R7 vs XC6504A2519R-G |
| ADM7154ARDZ-2.5-R7 | Analog Devices Inc | $5.0197 | 600 mA, Ultralow Noise, High PSRR, RF Linear Regulator | ADP7156ACPZ-2.5-R7 vs ADM7154ARDZ-2.5-R7 |
| ADP7156ARDZ-2.5-R7 | Analog Devices Inc | Check for Price | 1.2 A, Ultralow Noise, High PSRR, Fixed Output, RF Linear Regulator | ADP7156ACPZ-2.5-R7 vs ADP7156ARDZ-2.5-R7 |
| ADM7154ACPZ-2.5-R7 | Analog Devices Inc | Check for Price | 600 mA, Ultralow Noise, High PSRR, RF Linear Regulator | ADP7156ACPZ-2.5-R7 vs ADM7154ACPZ-2.5-R7 |
| MM3142FR | Mitsumi Electric Co Ltd | Check for Price | Fixed Positive Standard Regulator, 2.5VCMOS, PDSO6, PLP-6 | ADP7156ACPZ-2.5-R7 vs MM3142FR |
| MM3142FN | Mitsumi Electric Co Ltd | Check for Price | Fixed Positive Standard Regulator, 2.5VCMOS, PDSO5, SOT-25, 5 PIN | ADP7156ACPZ-2.5-R7 vs MM3142FN |
| XC6504A2419R-G | Torex Semiconductor LTD | Check for Price | Fixed Positive Standard Regulator, 2.4VCMOS, PDSO4, USPQ-4 | ADP7156ACPZ-2.5-R7 vs XC6504A2419R-G |
| ADP7158ACPZ-2.5-R7 | Analog Devices Inc | Check for Price | 2 A, Ultralow Noise, High PSRR, Fixed Output, RF Linear Regulator | ADP7156ACPZ-2.5-R7 vs ADP7158ACPZ-2.5-R7 |
| ADP7158ARDZ-2.5-R7 | Analog Devices Inc | Check for Price | 2 A, Ultralow Noise, High PSRR, Fixed Output, RF Linear Regulator | ADP7156ACPZ-2.5-R7 vs ADP7158ARDZ-2.5-R7 |
