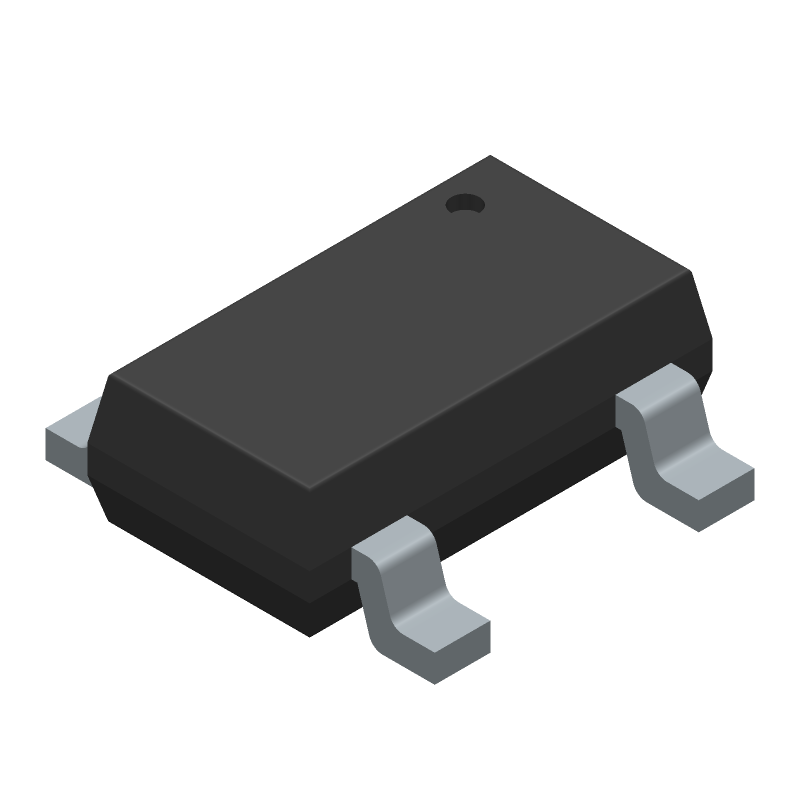

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADP7142AUJZ-3.3-R7 by Analog Devices Inc
Results Overview of ADP7142AUJZ-3.3-R7 by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
ADP7142AUJZ-3.3-R7 Information
ADP7142AUJZ-3.3-R7 by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADP7142AUJZ-3.3-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK5469
|
Newark | Ldo, Fixed, 3.3V, 0.2A, Tsot-5, 125Deg C, Output Type:Fixed, Input Voltage Min:2.7V, Input Voltage Max:40V, No. Of Outputs:-, Output Voltage Min:-, Output Voltage Max:-, Polarity:-, Ic Mounting:Surface Mount, Ic Case/Package:Tsot Rohs Compliant: Yes |Analog Devices ADP7142AUJZ-3.3-R7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 5751 |
|
$1.6900 | Buy Now |
|
DISTI #
505-ADP7142AUJZ-3.3-R7CT-ND
|
DigiKey | IC REG LIN 3.3V 200MA TSOT-23-5 Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$1.8625 / $5.1700 | Buy Now |
|
DISTI #
584-ADP7142AUJZ3.3R7
|
Mouser Electronics | LDO Voltage Regulators 40V 200mA LDO 3.3Vo RoHS: Compliant | 16876 |
|
$1.8600 / $4.3000 | Buy Now |
|
DISTI #
V72:2272_06222386
|
Arrow Electronics | LDO Regulator Pos 3.3V 0.2A Medical 5-Pin TSOT T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2420 Container: Cut Strips | Americas - 1395 |
|
$2.0000 / $4.2350 | Buy Now |
|
|
Analog Devices Inc | 40V 200mA LDO 3.3Vo Min Qty: 3000 Package Multiple: 3000 | 3000 |
|
$1.8625 / $5.1700 | Buy Now |
|
DISTI #
84386168
|
Verical | LDO Regulator Pos 3.3V 0.2A Medical 5-Pin TSOT T/R RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2420 | Americas - 1395 |
|
$2.0000 / $3.4520 | Buy Now |
|
|
Vyrian | Regulators | 4871 |
|
RFQ | |
|
|
Win Source Electronics | IC REG LDO 3.3V 0.2A TSOT23-5 | 39000 |
|
$2.4446 / $3.6669 | Buy Now |
Part Details for ADP7142AUJZ-3.3-R7
ADP7142AUJZ-3.3-R7 CAD Models
ADP7142AUJZ-3.3-R7 Part Data Attributes
|
|
ADP7142AUJZ-3.3-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADP7142AUJZ-3.3-R7
Analog Devices Inc
40 V, 200 mA, Low Noise, CMOS LDO Linear Regulator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Pin Count | 5 | |
| Manufacturer Package Code | UJ-5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Dropout Voltage1-Max | 0.42 V | |
| Input Voltage-Max | 40 V | |
| Input Voltage-Min | 4.3 V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.2 A | |
| Output Voltage1-Max | 3.3594 V | |
| Output Voltage1-Min | 3.2406 V | |
| Output Voltage1-Nom | 3.3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 1.8% | |
| Width | 1.6 mm |
ADP7142AUJZ-3.3-R7 Frequently Asked Questions (FAQ)
-
The maximum output current of the ADP7142AUJZ-3.3-R7 is 2A.
-
To ensure stability, use a minimum output capacitance of 10uF, and ensure that the output voltage is within the recommended range of 1.8V to 3.3V.
-
The dropout voltage of the ADP7142AUJZ-3.3-R7 is typically 0.5V at an output current of 1A.
-
Yes, the ADP7142AUJZ-3.3-R7 is rated for operation up to 125°C, but the output current should be derated accordingly to ensure reliability.
-
The power dissipation of the ADP7142AUJZ-3.3-R7 can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
