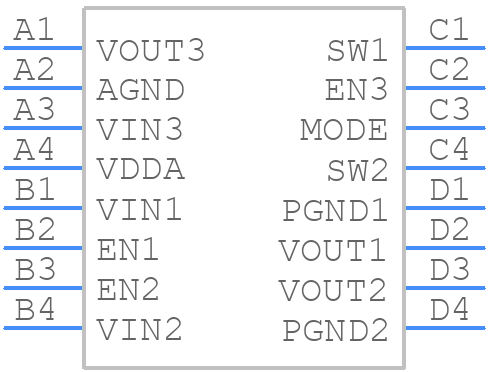

Part Symbol
-
Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADP5022ACBZ-6-R7 by Analog Devices Inc
Results Overview of ADP5022ACBZ-6-R7 by Analog Devices Inc
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
ADP5022ACBZ-6-R7 Information
ADP5022ACBZ-6-R7 by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADP5022ACBZ-6-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Rochester Electronics | Dual 3 MHz, 600mA Buck Regulator with 150mA LDO RoHS: Compliant Status: Obsolete Min Qty: 1 | 17493 |
|
$1.2900 / $1.6100 | Buy Now |
Part Details for ADP5022ACBZ-6-R7
ADP5022ACBZ-6-R7 CAD Models
ADP5022ACBZ-6-R7 Part Data Attributes
|
|
ADP5022ACBZ-6-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADP5022ACBZ-6-R7
Analog Devices Inc
Dual 3 MHz, 600 mA Buck Regulator with 150 mA LDO
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | BGA | |
| Package Description | 2.08 X 2.08 MM, 0.50 MM PITCH, ROHS COMPLIANT, WLCSP-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | CB-16-7 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | ALSO OPERATES AT 1.8V AND 2.5V, ALSO OPERATES AS LDO REGULATOR | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.4 V | |
| Input Voltage-Nom | 3.6 V | |
| JESD-30 Code | S-PBGA-B16 | |
| Length | 2.08 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 1.05 A | |
| Output Voltage-Max | 1.03 V | |
| Output Voltage-Min | 0.97 V | |
| Output Voltage-Nom | 1 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VFBGA | |
| Package Equivalence Code | BGA16,4X4,20 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, VERY THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.66 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 3500 kHz | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 2.08 mm |
