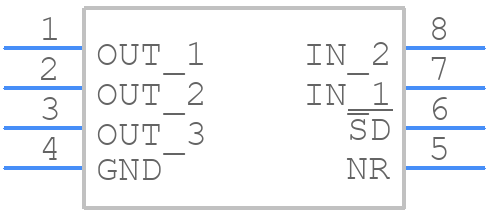

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADP3335ARMZ-3.3RL7 by Analog Devices Inc
Results Overview of ADP3335ARMZ-3.3RL7 by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADP3335ARMZ-3.3RL7 Information
ADP3335ARMZ-3.3RL7 by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADP3335ARMZ-3.3RL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK5424
|
Newark | Ldo, Fixed, 3.3V, 0.5A, Msop-8, 85Deg C, Output Type:Fixed, Input Voltage Min:2.6V, Input Voltage Max:12V, No. Of Outputs:-, Output Voltage Min:-, Output Voltage Max:-, Polarity:-, Ic Mounting:Surface Mount, Ic Case/Package:Msop Rohs Compliant: Yes |Analog Devices ADP3335ARMZ-3.3RL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$1.7100 / $3.7800 | Buy Now |
|
DISTI #
505-ADP3335ARMZ-3.3RL7CT-ND
|
DigiKey | IC REG LINEAR 3.3V 500MA 8-MSOP Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
21 In Stock |
|
$1.5375 / $4.5000 | Buy Now |
|
DISTI #
584-ADP3335ARMZ3.3R7
|
Mouser Electronics | Linear Voltage Regulators 500mA anyCAP LDO RoHS: Compliant | 847 |
|
$1.5600 / $3.1700 | Buy Now |
|
|
Analog Devices Inc | 500mA anyCAP LDO Min Qty: 1 Package Multiple: 1000 | 5 |
|
$1.5375 / $4.5000 | Buy Now |
|
|
Rochester Electronics | High Accuracy, UltraLow IQ, 500mA, ANYCAP Low Dropout Regulator RoHS: Compliant Status: Active Min Qty: 1 | 175 |
|
$1.2900 / $1.6100 | Buy Now |
|
|
Vyrian | Regulators | 407 |
|
RFQ | |
|
|
Win Source Electronics | IC REG LDO 3.3V 0.5A 8MSOP | 1759 |
|
$3.0030 / $4.5045 | Buy Now |
Part Details for ADP3335ARMZ-3.3RL7
ADP3335ARMZ-3.3RL7 CAD Models
ADP3335ARMZ-3.3RL7 Part Data Attributes
|
|
ADP3335ARMZ-3.3RL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADP3335ARMZ-3.3RL7
Analog Devices Inc
High Accuracy Ultralow Quiescent Current, 500 mA, anyCAP® Low Dropout
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TSSOP | |
| Package Description | MSOP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | RM-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.37 V | |
| Dropout Voltage1-Nom | 0.2 V | |
| Input Voltage Absolute-Max | 16 V | |
| Input Voltage-Max | 12 V | |
| Input Voltage-Min | 3.7 V | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature TJ-Max | 150 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.5 A | |
| Output Voltage1-Max | 3.3759 V | |
| Output Voltage1-Min | 3.2241 V | |
| Output Voltage1-Nom | 3.3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.1 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 2.3% | |
| Width | 3 mm |
ADP3335ARMZ-3.3RL7 Frequently Asked Questions (FAQ)
-
A 1uF to 10uF ceramic capacitor is recommended for input decoupling, depending on the specific application and noise requirements.
-
To ensure stability, it's essential to follow the recommended PCB layout guidelines, use a sufficient output capacitor (e.g., 10uF), and minimize the distance between the output capacitor and the ADP3335.
-
The ADP3335ARMZ-3.3RL7 is rated for operation from -40°C to +125°C, but it's recommended to derate the output current and voltage for temperatures above 85°C to ensure reliable operation.
-
Yes, the ADP3335 can be used as a post-regulator, but ensure the input voltage is within the recommended range (2.7V to 5.5V) and the output voltage is set accordingly to avoid over-voltage protection (OVP) triggering.
-
Use the formula: Pd = (Vin - Vout) x Iout. Then, calculate the junction temperature (Tj) using the thermal resistance (RθJA) and the ambient temperature (Ta): Tj = Ta + (Pd x RθJA).
