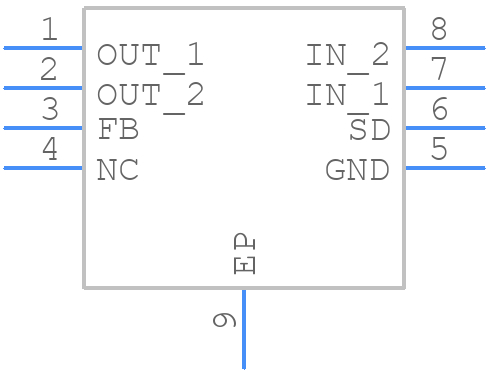

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADP3334ACPZ-REEL7 by Analog Devices Inc
Results Overview of ADP3334ACPZ-REEL7 by Analog Devices Inc
- Distributor Offerings: (21 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADP3334ACPZ-REEL7 Information
ADP3334ACPZ-REEL7 by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADP3334ACPZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK5422
|
Newark | Ldo, Adj, 0.5A, Lfcsp-8, -40 To 85Deg C, Output Type:Adjustable, Input Voltage Min:2.6V, Input Voltage Max:11V, No. Of Outputs:-, Output Voltage Min:1.5V, Output Voltage Max:10V, Polarity:-, Ic Mounting:Surface Mount Rohs Compliant: Yes |Analog Devices ADP3334ACPZ-REEL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 642 |
|
$1.8300 / $3.5400 | Buy Now |
|
DISTI #
505-ADP3334ACPZ-REEL7CT-ND
|
DigiKey | IC REG LIN POS ADJ 500MA 8-LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3712 In Stock |
|
$1.5250 / $4.4800 | Buy Now |
|
DISTI #
584-ADP3334ACPZ-R7
|
Mouser Electronics | Linear Voltage Regulators 500 mA adjustable anyCAP LDO RoHS: Compliant | 17511 |
|
$1.5200 / $2.6300 | Buy Now |
|
DISTI #
V72:2272_06222019
|
Arrow Electronics | LDO Regulator Pos 1.5V to 10V 0.5A 8-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2204 Container: Cut Strips | Americas - 58 |
|
$1.6380 / $2.0760 | Buy Now |
|
|
Analog Devices Inc | 500 mA adjustable anyCAP LDO Min Qty: 1500 Package Multiple: 1500 | 6000 |
|
$1.1600 / $4.4800 | Buy Now |
|
DISTI #
27003478
|
Verical | LDO Regulator Pos 1.5V to 10V 0.5A 8-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 | Americas - 1500 |
|
$1.5346 | Buy Now |
|
DISTI #
62249763
|
Verical | LDO Regulator Pos 1.5V to 10V 0.5A 8-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 4 Package Multiple: 1 Date Code: 2204 | Americas - 58 |
|
$1.6380 / $2.0760 | Buy Now |
|
|
Bristol Electronics | 1647 |
|
RFQ | ||
|
|
Bristol Electronics | 519 |
|
RFQ | ||
|
|
Bristol Electronics | 28 |
|
RFQ |
Part Details for ADP3334ACPZ-REEL7
ADP3334ACPZ-REEL7 CAD Models
ADP3334ACPZ-REEL7 Part Data Attributes
|
|
ADP3334ACPZ-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADP3334ACPZ-REEL7
Analog Devices Inc
High Accuracy Low IQ, 500 mA anyCAP® Adjustable Low Dropout Regulator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | ROHS COMPLIANT, LFCSP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | CP-8-2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustability | ADJUSTABLE | |
| Dropout Voltage1-Max | 0.4 V | |
| Dropout Voltage1-Nom | 0.2 V | |
| JESD-30 Code | S-PDSO-N8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature TJ-Max | 150 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.5 A | |
| Output Voltage1-Max | 10 V | |
| Output Voltage1-Min | 1.5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSON | |
| Package Equivalence Code | SOLCC8,.11,20 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 0.9 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
ADP3334ACPZ-REEL7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADP3334 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure stability, it's essential to follow the recommended PCB layout, use the correct output capacitor value and type, and ensure that the input voltage is within the recommended range. Additionally, adding a small ceramic capacitor (e.g., 10nF) between the VIN and GND pins can help prevent oscillations.
-
The ADP3334 is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to ensure that the device's junction temperature (TJ) does not exceed 150°C.
-
Yes, the ADP3334 is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive applications. However, it's essential to follow the recommended design and layout guidelines to ensure the device operates within its specifications.
-
The power dissipation of the ADP3334 can be calculated using the formula: Pd = (VIN - VOUT) x IOUT + (VIN x IQ), where VIN is the input voltage, VOUT is the output voltage, IOUT is the output current, and IQ is the quiescent current. It's essential to ensure that the device's power dissipation does not exceed its maximum rating.
