ADP3333ARMZ-3.3-R7 by:

High Accuracy Ultralow IQ, 300 mA, anyCAP® Low Dropout Regulator

Part Details for ADP3333ARMZ-3.3-R7 by Analog Devices Inc

Results Overview of ADP3333ARMZ-3.3-R7 by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

ADP3333ARMZ-3.3-R7 Information

ADP3333ARMZ-3.3-R7 by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for ADP3333ARMZ-3.3-R7

Part # Distributor Description Stock Price Buy
DISTI # 49AK8741
Newark Ldo, Fixed, 3.3V, 0.3A, Msop-8, 85Deg C, Output Type:Fixed, Input Voltage Min:2.6V, Input Voltage Max:12V, No. Of Outputs:-, Output Voltage Min:-, Output Voltage Max:-, Polarity:-, Ic Mounting:Surface Mount, Ic Case/Package:Msop Rohs Compliant: Yes |Analog Devices ADP3333ARMZ-3.3-R7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 405
  • 1 $4.0900
  • 10 $2.7000
  • 25 $2.3400
  • 50 $2.1400
  • 100 $1.9300
  • 250 $1.7400
  • 500 $1.6200
  • 1,000 $1.5100
$1.5100 / $4.0900 Buy Now
DISTI # ADP3333ARMZ-3.3-R7CT-ND
DigiKey IC REG LINEAR 3.3V 300MA 8-MSOP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 749
In Stock
  • 1 $4.0500
  • 10 $2.6060
  • 25 $2.2300
  • 100 $1.8046
  • 250 $1.5958
  • 500 $1.4673
  • 1,000 $1.3597
  • 2,000 $1.3250
$1.3250 / $4.0500 Buy Now
DISTI # 584-ADP3333ARMZ3.3R7
Mouser Electronics Linear Voltage Regulators 300mA fixed anyCAP LDO RoHS: Compliant 1488
  • 1 $2.7700
  • 10 $2.0700
  • 25 $1.9000
  • 100 $1.7000
  • 250 $1.6100
  • 500 $1.5400
  • 1,000 $1.5400
  • 2,000 $1.3700
  • 5,000 $1.3500
$1.3500 / $2.7700 Buy Now
Analog Devices Inc 300mA fixed anyCAP LDO Min Qty: 1000 Package Multiple: 1000 3000
  • 1 $4.0500
  • 10 $2.6060
  • 25 $2.2300
  • 100 $1.8046
  • 250 $1.5958
  • 500 $1.4673
  • 1,000 $1.3597
  • 2,000 $1.3250
$1.3250 / $4.0500 Buy Now
Bristol Electronics   197
RFQ
Quest Components   346
  • 1 $4.0000
  • 151 $1.8500
  • 325 $1.6500
$1.6500 / $4.0000 Buy Now
Rochester Electronics High Accuracy UltraLow IQ, 300mA, ANYCAP Low Dropout Regulator RoHS: Compliant Status: Active Min Qty: 1 27
  • 25 $1.3900
  • 100 $1.3200
  • 500 $1.2500
  • 1,000 $1.1800
  • 10,000 $1.1100
$1.1100 / $1.3900 Buy Now
Chip-Germany GmbH   RoHS: Not Compliant 896
RFQ
LCSC 300mA Fixed 3.3V Positive electrode 12V MSOP-8 Voltage Regulators - Linear Low Drop Out (LDO) Regulators ROHS 52
  • 1 $3.0790
  • 10 $2.6730
  • 30 $2.4315
  • 100 $2.0814
  • 500 $1.9682
  • 1,000 $1.9169
$1.9169 / $3.0790 Buy Now
Vyrian Regulators 1461
RFQ

Part Details for ADP3333ARMZ-3.3-R7

ADP3333ARMZ-3.3-R7 CAD Models

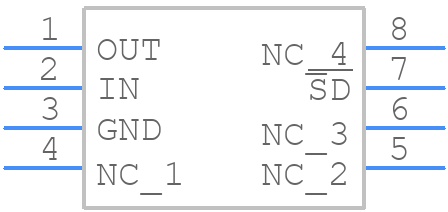

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ADP3333ARMZ-3.3-R7 Part Data Attributes

Parametric Data
ADP3333ARMZ-3.3-R7 Analog Devices Inc
Buy Now Datasheet
Compare Parts:
ADP3333ARMZ-3.3-R7 Analog Devices Inc High Accuracy Ultralow IQ, 300 mA, anyCAP® Low Dropout Regulator
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code TSSOP
Package Description ROHS COMPLIANT, ULTRA SMALL, MO-187A, MSOP-8
Pin Count 8
Manufacturer Package Code RM-8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Analog Devices
Adjustability FIXED
Dropout Voltage1-Max 0.23 V
Dropout Voltage1-Nom 0.14 V
Input Voltage Absolute-Max 16 V
Input Voltage-Max 12 V
Input Voltage-Min 2.6 V
JESD-30 Code S-PDSO-G8
JESD-609 Code e3
Length 3 mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 8
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min -40 °C
Output Current1-Max 0.3 A
Output Voltage1-Max 3.3594 V
Output Voltage1-Min 3.2406 V
Output Voltage1-Nom 3.3 V
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP8,.19
Package Shape SQUARE
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method TR
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max 1.1 mm
Surface Mount YES
Technology BIPOLAR
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Voltage Tolerance-Max 1.8%
Width 3 mm

Alternate Parts for ADP3333ARMZ-3.3-R7

This table gives cross-reference parts and alternative options found for ADP3333ARMZ-3.3-R7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADP3333ARMZ-3.3-R7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
ADP3333ARMZ-3.3-RL7 Analog Devices Inc Check for Price 3.3V FIXED POSITIVE LDO REGULATOR, 0.23V DROPOUT, PDSO8, ULTRA SMALL, MO-187A, MSOP-8 ADP3333ARMZ-3.3-R7 vs ADP3333ARMZ-3.3-RL7
ADP3333ARM-3.3-RL Analog Devices Inc Check for Price IC VREG 3.3 V FIXED POSITIVE LDO REGULATOR, 0.23 V DROPOUT, PDSO8, ULTRA SMALL, MO-187A, MSOP-8, Fixed Positive Single Output LDO Regulator ADP3333ARMZ-3.3-R7 vs ADP3333ARM-3.3-RL
ADP3333ARM-3.3-RL7 Analog Devices Inc Check for Price High Accuracy Ultralow IQ, 300 mA, anyCAP® Low Dropout Regulator ADP3333ARMZ-3.3-R7 vs ADP3333ARM-3.3-RL7
Part Number Manufacturer Composite Price Description Compare
ADP3333ARMZ-2.5-R7 Analog Devices Inc $1.9293 High Accuracy Ultralow IQ, 300 mA, anyCAP® Low Dropout Regulator ADP3333ARMZ-3.3-R7 vs ADP3333ARMZ-2.5-R7
MAX8860EUA33+ Maxim Integrated Products $2.4455 Fixed Positive LDO Regulator, 3.3V, 0.22V Dropout, CMOS, PDSO8, MINIATURE, MICRO MAX PACKAGE-8 ADP3333ARMZ-3.3-R7 vs MAX8860EUA33+
ADP3333ARMZ-3.3-RL Analog Devices Inc Check for Price IC VREG 3.3 V FIXED POSITIVE LDO REGULATOR, 0.23 V DROPOUT, PDSO8, ROHS COMPLIANT, ULTRA SMALL, MO-187A, MSOP-8, Fixed Positive Single Output LDO Regulator ADP3333ARMZ-3.3-R7 vs ADP3333ARMZ-3.3-RL
ADP3335ARM-2.85-RL Analog Devices Inc Check for Price IC VREG 2.85 V FIXED POSITIVE LDO REGULATOR, 0.37 V DROPOUT, PDSO8, MO-187AA, MSOP-8, Fixed Positive Single Output LDO Regulator ADP3333ARMZ-3.3-R7 vs ADP3335ARM-2.85-RL
LP3982IMMX-3.3/NOPB National Semiconductor Corporation Check for Price IC VREG 3.3 V FIXED POSITIVE LDO REGULATOR, 0.22 V DROPOUT, PDSO8, MSOP-8, Fixed Positive Single Output LDO Regulator ADP3333ARMZ-3.3-R7 vs LP3982IMMX-3.3/NOPB
ADP3333ARM-2.5-RL7 Analog Devices Inc Check for Price IC VREG 2.5 V FIXED POSITIVE LDO REGULATOR, 0.23 V DROPOUT, PDSO8, ULTRA SMALL, MO-187A, MSOP-8, Fixed Positive Single Output LDO Regulator ADP3333ARMZ-3.3-R7 vs ADP3333ARM-2.5-RL7
ADP3333ARMZ-3-REEL7 Analog Devices Inc Check for Price 3V FIXED POSITIVE LDO REGULATOR, 0.23V DROPOUT, PDSO8, ULTRA SMALL, MO-187A, MSOP-8 ADP3333ARMZ-3.3-R7 vs ADP3333ARMZ-3-REEL7
LP3982IMM-2.77/NOPB National Semiconductor Corporation Check for Price IC VREG 2.77 V FIXED POSITIVE LDO REGULATOR, 0.22 V DROPOUT, PDSO8, MSOP-8, Fixed Positive Single Output LDO Regulator ADP3333ARMZ-3.3-R7 vs LP3982IMM-2.77/NOPB
ADP3333-5-REEL7 Analog Devices Inc Check for Price IC VREG 5 V FIXED POSITIVE LDO REGULATOR, 0.23 V DROPOUT, PDSO8, ULTRA SMALL, MSOP-8, Fixed Positive Single Output LDO Regulator ADP3333ARMZ-3.3-R7 vs ADP3333-5-REEL7
ADP3333ARMZ-1.5-RL Analog Devices Inc Check for Price High Accuracy Ultralow IQ, 300 mA, anyCAP® Low Dropout Regulator ADP3333ARMZ-3.3-R7 vs ADP3333ARMZ-1.5-RL

ADP3333ARMZ-3.3-R7 Related Parts

ADP3333ARMZ-3.3-R7 Frequently Asked Questions (FAQ)

  • A good PCB layout for the ADP3333 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.

  • To ensure stability, ensure that the output capacitor is within the recommended range, the input capacitor is properly sized, and the feedback resistors are chosen correctly. Also, avoid using long feedback traces and minimize the distance between the output capacitor and the feedback pin.

  • The ADP3333 can handle input voltages up to 12V, but it's recommended to keep the input voltage within the specified range of 3.5V to 12V for optimal performance and to prevent damage to the device.

  • The ADP3333 is rated for operation up to 125°C, but its performance may degrade at high temperatures. Ensure that the device is properly heat-sinked and that the operating temperature is within the specified range for optimal performance.

  • The output voltage of the ADP3333 can be calculated using the formula: Vout = (1 + R2/R1) * Vref, where R1 and R2 are the feedback resistors and Vref is the internal reference voltage.
