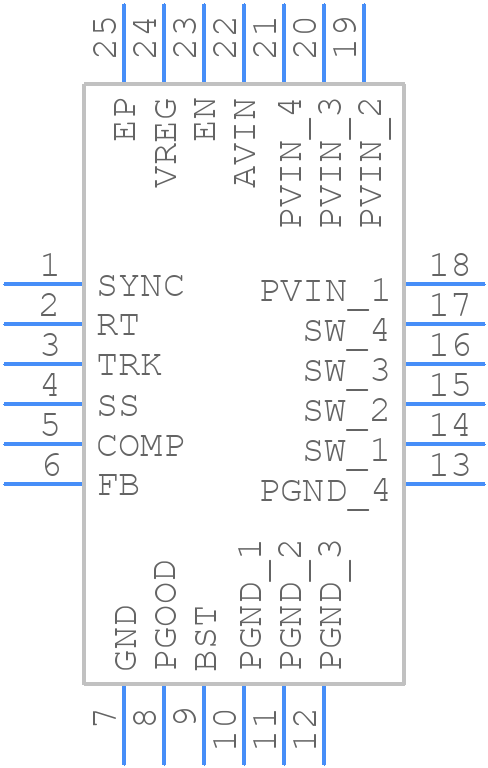

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADP2166ACPZ-R7 by Analog Devices Inc
Results Overview of ADP2166ACPZ-R7 by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADP2166ACPZ-R7 Information
ADP2166ACPZ-R7 by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADP2166ACPZ-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-ADP2166ACPZ-R7CT-ND
|
DigiKey | IC REG BUCK ADJ 6A 24LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1766 In Stock |
|
$3.2125 / $7.6900 | Buy Now |
|
DISTI #
584-ADP2166ACPZ-R7
|
Mouser Electronics | Switching Voltage Regulators 6V/6A High Eff, Step-Down DC-to-DC Reg RoHS: Compliant | 3635 |
|
$3.2100 / $5.2500 | Buy Now |
|
DISTI #
V72:2272_06221683
|
Arrow Electronics | Conv DC-DC 2.7V to 5.5V Synchronous Step Down Single-Out 0.6V to 4.95V 6A 24-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2216 Container: Cut Strips | Americas - 544 |
|
$3.2960 / $3.5760 | Buy Now |
|
|
Analog Devices Inc | 6V/6A High Eff, Step-Down DC-t Min Qty: 1 Package Multiple: 1500 | 354 |
|
$2.4400 / $7.6900 | Buy Now |
|
DISTI #
62135404
|
Verical | Conv DC-DC 2.7V to 5.5V Synchronous Step Down Single-Out 0.6V to 4.95V 6A 24-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2216 | Americas - 544 |
|
$3.2960 / $3.5760 | Buy Now |
|
|
Rochester Electronics | 5.5V, 6 A, High Efficiency, Step-Down DC-To-DC Regulator RoHS: Compliant Status: Active Min Qty: 1 | 70 |
|
$2.7000 / $3.3700 | Buy Now |
|
|
Cytech Systems Limited | IC REG BUCK ADJ 6A 24LFCSP | 1500 |
|
RFQ |
Part Details for ADP2166ACPZ-R7
ADP2166ACPZ-R7 CAD Models
ADP2166ACPZ-R7 Part Data Attributes
|
|
ADP2166ACPZ-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADP2166ACPZ-R7
Analog Devices Inc
5.5 V, 6 A, High Efficiency, Step-Down DC-to-DC Regulators with Output Tracking
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | LFCSP-24 | |
| Pin Count | 24 | |
| Manufacturer Package Code | CP-24-15 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | ADJUSTABLE OUTPUT VOLTAGE RANGE FROM 0.6 V TO 4.95 V | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.7 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | S-XQCC-N24 | |
| JESD-609 Code | e3 | |
| Length | 4 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 1400 kHz | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4 mm |
ADP2166ACPZ-R7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADP2166ACPZ-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value and type. It's also important to minimize the parasitic inductance and resistance in the circuit.
-
The ADP2166ACPZ-R7 is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. It's recommended to follow the thermal design guidelines in the datasheet and to perform thermal simulations to ensure the device operates within its specified temperature range.
-
Yes, the ADP2166ACPZ-R7 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured using a robust process that ensures high reliability. However, it's recommended to consult with Analog Devices Inc. for specific requirements and to ensure that the device meets the specific requirements of the application.
-
To troubleshoot issues with the ADP2166ACPZ-R7, start by verifying that the input voltage and output voltage are within the recommended ranges. Check the PCB layout and component values to ensure they match the recommended values. Use an oscilloscope to measure the input and output waveforms and check for any signs of oscillation or instability. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines or contact Analog Devices Inc. for support.
