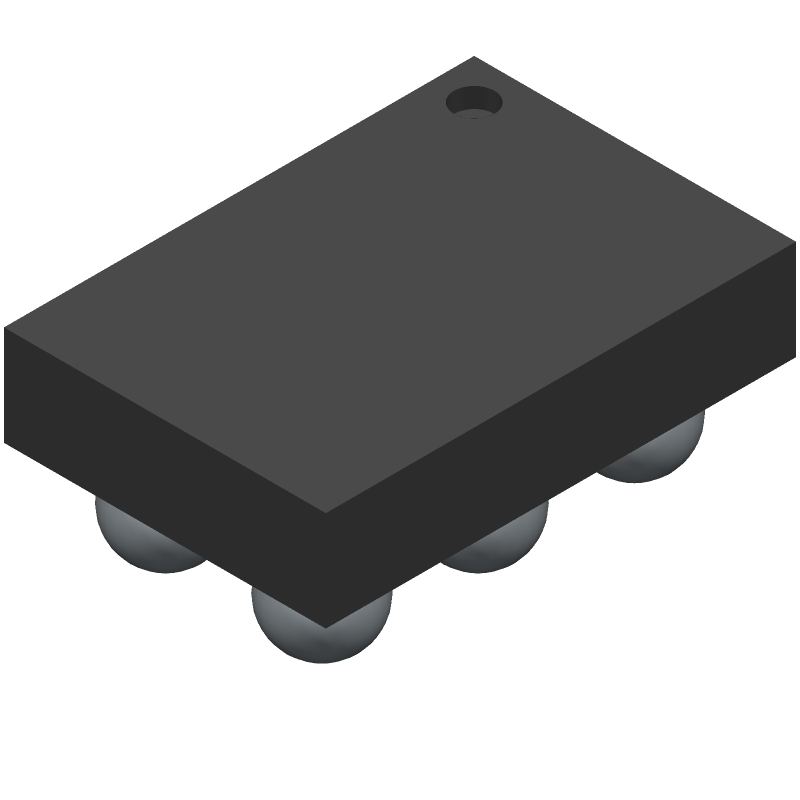

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADP2138ACBZ-1.8-R7 by Analog Devices Inc
Results Overview of ADP2138ACBZ-1.8-R7 by Analog Devices Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
ADP2138ACBZ-1.8-R7 Information
ADP2138ACBZ-1.8-R7 by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADP2138ACBZ-1.8-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
02AM0916
|
Newark | Dc/Dc Conv, Sync Buck, 3Mhz, 125Deg C Rohs Compliant: Yes |Analog Devices ADP2138ACBZ-1.8-R7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$1.3900 / $2.5800 | Buy Now |
|
DISTI #
505-ADP2138ACBZ-1.8-R7CT-ND
|
DigiKey | IC REG BUCK 1.8V 800MA 6WLCSP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
7677 In Stock |
|
$1.3875 / $4.1800 | Buy Now |
|
DISTI #
584-ADP2138ACBZ1.8R7
|
Mouser Electronics | Switching Voltage Regulators 0.8A 3MHz Buck 1.8Vout RoHS: Compliant | 1643 |
|
$1.4400 / $2.8900 | Buy Now |
|
DISTI #
V72:2272_06221559
|
Arrow Electronics | Conv DC-DC 2.3V to 5.5V Synchronous Step Down Single-Out 1.8V 0.8A 6-Pin WLCSP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 1706 Container: Cut Strips | Americas - 5192 |
|
$1.4230 / $1.5930 | Buy Now |
|
|
Analog Devices Inc | 0.8A 3MHz Buck 1.8Vout Min Qty: 1 Package Multiple: 3000 | 7536 |
|
$1.3875 / $4.1800 | Buy Now |
|
DISTI #
26618329
|
Verical | Conv DC-DC 2.3V to 5.5V Synchronous Step Down Single-Out 1.8V 0.8A 6-Pin WLCSP T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | Americas - 6000 |
|
$1.3962 | Buy Now |
|
DISTI #
25737668
|
Verical | Conv DC-DC 2.3V to 5.5V Synchronous Step Down Single-Out 1.8V 0.8A 6-Pin WLCSP T/R RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1706 | Americas - 5192 |
|
$1.4230 / $1.5930 | Buy Now |
|
|
Rochester Electronics | 0.8A 3MHz Buck 1.8Vout RoHS: Compliant Status: Active Min Qty: 1 | 12737 |
|
$1.1700 / $1.4600 | Buy Now |
|
|
Cytech Systems Limited | IC REG BUCK 1.8V 800MA 6WLCSP | 6000 |
|
RFQ |
Part Details for ADP2138ACBZ-1.8-R7
ADP2138ACBZ-1.8-R7 CAD Models
ADP2138ACBZ-1.8-R7 Part Data Attributes
|
|
ADP2138ACBZ-1.8-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADP2138ACBZ-1.8-R7
Analog Devices Inc
Compact, 800 mA, 3 MHz, Step-Down DC-to-DC Converter
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | BGA | |
| Package Description | WLCSP-6 | |
| Pin Count | 6 | |
| Manufacturer Package Code | CB-6-12 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.3 V | |
| Input Voltage-Nom | 3.6 V | |
| JESD-30 Code | R-PBGA-B6 | |
| JESD-609 Code | e1 | |
| Length | 1.505 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 1.65 A | |
| Output Voltage-Nom | 1.8 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VFBGA | |
| Package Equivalence Code | BGA6,2X3,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY, VERY THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.64 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 3400 kHz | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.03 mm |
Alternate Parts for ADP2138ACBZ-1.8-R7
This table gives cross-reference parts and alternative options found for ADP2138ACBZ-1.8-R7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADP2138ACBZ-1.8-R7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADP2138ACBZ-1.0-R7 | Analog Devices Inc | $1.5867 | Compact, 800 mA, 3 MHz, Step-Down DC-to-DC Converter | ADP2138ACBZ-1.8-R7 vs ADP2138ACBZ-1.0-R7 |
| ADP2139ACBZ-1.2-R7 | Analog Devices Inc | Check for Price | Compact, 800 mA, 3 MHz, Step-Down DC-to-DC Converter with an Internal Discharge Switch | ADP2138ACBZ-1.8-R7 vs ADP2139ACBZ-1.2-R7 |
| ADP2138ACBZ-3.3-R7 | Analog Devices Inc | Check for Price | Compact, 800 mA, 3 MHz, Step-Down DC-to-DC Converter | ADP2138ACBZ-1.8-R7 vs ADP2138ACBZ-3.3-R7 |
| ADP2139ACBZ-3.0-R7 | Analog Devices Inc | Check for Price | Compact, 800 mA, 3 MHz, Step-Down DC-to-DC Converter with an Internal Discharge Switch | ADP2138ACBZ-1.8-R7 vs ADP2139ACBZ-3.0-R7 |
| ADP2138ACBZ-0.8-R7 | Analog Devices Inc | Check for Price | Compact, 800 mA, 3 MHz, Step-Down DC-to-DC Converter | ADP2138ACBZ-1.8-R7 vs ADP2138ACBZ-0.8-R7 |
| ADP2147ACBZ-150-R7 | Analog Devices Inc | Check for Price | Compact, 800 mA, 3 MHz, Simple DVS, Buck Regulator | ADP2138ACBZ-1.8-R7 vs ADP2147ACBZ-150-R7 |
| ADP2139ACBZ-3.3-R7 | Analog Devices Inc | Check for Price | Compact, 800 mA, 3 MHz, Step-Down DC-to-DC Converter with an Internal Discharge Switch | ADP2138ACBZ-1.8-R7 vs ADP2139ACBZ-3.3-R7 |
| ADP2139ACBZ-1.8-R7 | Analog Devices Inc | Check for Price | Compact, 800 mA, 3 MHz, Step-Down DC-to-DC Converter with an Internal Discharge Switch | ADP2138ACBZ-1.8-R7 vs ADP2139ACBZ-1.8-R7 |
| ADP2147ACBZ-130-R7 | Analog Devices Inc | Check for Price | Compact, 800 mA, 3 MHz, Simple DVS, Buck Regulator | ADP2138ACBZ-1.8-R7 vs ADP2147ACBZ-130-R7 |
| ADP2147ACBZ-110-R7 | Rochester Electronics LLC | Check for Price | 1.65 A SWITCHING REGULATOR, 3400 kHz SWITCHING FREQ-MAX, PBGA6, 1 X 1.50 MM, ROHS COMPLIANT, WLCSP-6 | ADP2138ACBZ-1.8-R7 vs ADP2147ACBZ-110-R7 |
ADP2138ACBZ-1.8-R7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADP2138 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device should be operated within its recommended operating conditions, and the input voltage should be well-regulated.
-
The ADP2138 can operate in ambient temperatures up to 125°C, but the junction temperature should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating.
-
Yes, the ADP2138 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured using a high-reliability process. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific requirements of your application.
-
To troubleshoot issues with the ADP2138, start by verifying that the device is properly powered and that the input and output voltages are within the recommended ranges. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet and application notes for guidance on troubleshooting common issues.
