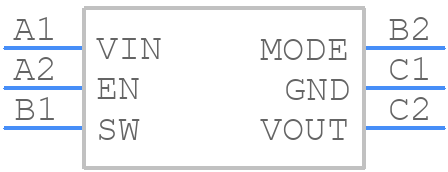

Part Symbol
-
Footprint
-

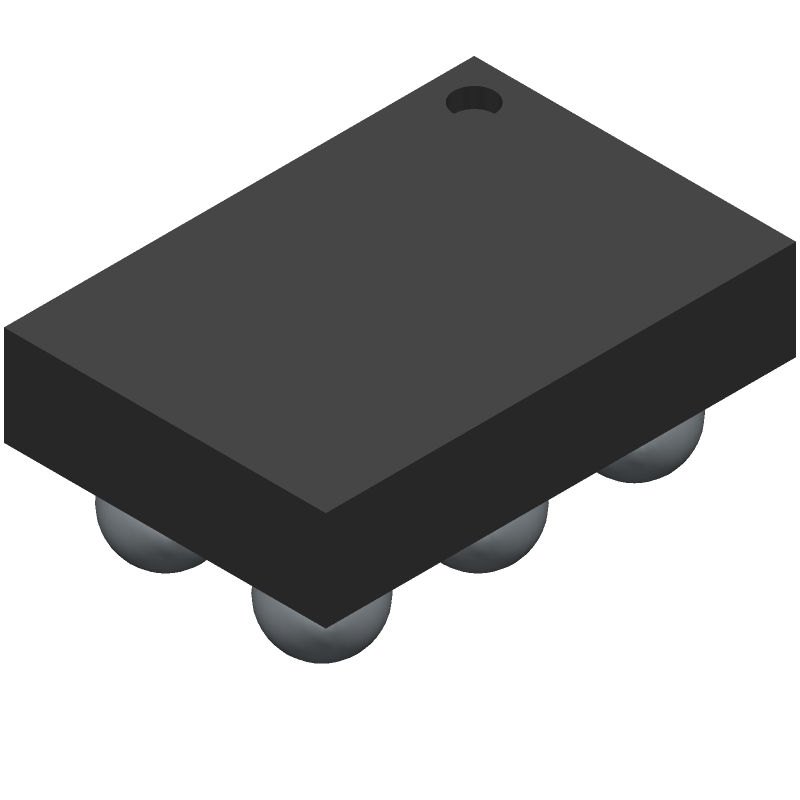

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADP2138ACBZ-1.0-R7 by Analog Devices Inc
Results Overview of ADP2138ACBZ-1.0-R7 by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
ADP2138ACBZ-1.0-R7 Information
ADP2138ACBZ-1.0-R7 by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADP2138ACBZ-1.0-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
02AM0915
|
Newark | Switching Regulator, 0.8A, Wlcsp-6 Rohs Compliant: Yes |Analog Devices ADP2138ACBZ-1.0-R7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$1.4100 / $2.0900 | Buy Now |
|
DISTI #
ADP2138ACBZ-1.0-R7CT-ND
|
DigiKey | IC REG BUCK 1V 800MA 6WLCSP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
8736 In Stock |
|
$1.3875 / $4.1800 | Buy Now |
|
DISTI #
584-ADP2138ACBZ1.0R7
|
Mouser Electronics | Switching Voltage Regulators 0.8A 3MHz Buck 1.0Vout RoHS: Compliant | 2610 |
|
$1.3800 / $2.8900 | Buy Now |
|
|
Analog Devices Inc | 0.8A 3MHz Buck 1.0Vout Min Qty: 1 Package Multiple: 3000 | 7748 |
|
$1.3875 / $4.1800 | Buy Now |
|
DISTI #
26961320
|
Verical | Conv DC-DC 2.3V to 5.5V Synchronous Step Down Single-Out 1V 0.8A 6-Pin WLCSP T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | Americas - 6000 |
|
$1.3962 | Buy Now |
|
|
Rochester Electronics | COMPACT, 800mA, 3 MHz, Step-Down DC-To-DC Converter RoHS: Compliant Status: Active Min Qty: 1 | 9649 |
|
$1.1700 / $1.4600 | Buy Now |
Part Details for ADP2138ACBZ-1.0-R7
ADP2138ACBZ-1.0-R7 CAD Models
ADP2138ACBZ-1.0-R7 Part Data Attributes
|
|
ADP2138ACBZ-1.0-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADP2138ACBZ-1.0-R7
Analog Devices Inc
Compact, 800 mA, 3 MHz, Step-Down DC-to-DC Converter
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | BGA | |
| Package Description | WLCSP-6 | |
| Pin Count | 6 | |
| Manufacturer Package Code | CB-6-12 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.3 V | |
| Input Voltage-Nom | 3.6 V | |
| JESD-30 Code | R-PBGA-B6 | |
| JESD-609 Code | e1 | |
| Length | 1.505 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 1.65 A | |
| Output Voltage-Max | 1.02 V | |
| Output Voltage-Min | 0.98 V | |
| Output Voltage-Nom | 1 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VFBGA | |
| Package Equivalence Code | BGA6,2X3,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY, VERY THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.64 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 3400 kHz | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.03 mm |
Alternate Parts for ADP2138ACBZ-1.0-R7
This table gives cross-reference parts and alternative options found for ADP2138ACBZ-1.0-R7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADP2138ACBZ-1.0-R7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADP2147ACBZ-110-R7 | Analog Devices Inc | Check for Price | Compact, 800 mA, 3 MHz, Simple DVS, Buck Regulator | ADP2138ACBZ-1.0-R7 vs ADP2147ACBZ-110-R7 |
| ADP2138ACBZ-1.5-R7 | Analog Devices Inc | Check for Price | Compact, 800 mA, 3 MHz, Step-Down DC-to-DC Converter | ADP2138ACBZ-1.0-R7 vs ADP2138ACBZ-1.5-R7 |
| ADP2138ACBZ-0.8-R7 | Analog Devices Inc | Check for Price | Compact, 800 mA, 3 MHz, Step-Down DC-to-DC Converter | ADP2138ACBZ-1.0-R7 vs ADP2138ACBZ-0.8-R7 |
| ADP2139ACBZ-1.8-R7 | Analog Devices Inc | Check for Price | Compact, 800 mA, 3 MHz, Step-Down DC-to-DC Converter with an Internal Discharge Switch | ADP2138ACBZ-1.0-R7 vs ADP2139ACBZ-1.8-R7 |
| ADP2147ACBZ-130-R7 | Analog Devices Inc | Check for Price | Compact, 800 mA, 3 MHz, Simple DVS, Buck Regulator | ADP2138ACBZ-1.0-R7 vs ADP2147ACBZ-130-R7 |
| ADP2139ACBZ-1.0-R7 | Analog Devices Inc | Check for Price | Compact, 800 mA, 3 MHz, Step-Down DC-to-DC Converter with an Internal Discharge Switch | ADP2138ACBZ-1.0-R7 vs ADP2139ACBZ-1.0-R7 |
| ADP2139ACBZ-0.8-R7 | Analog Devices Inc | Check for Price | Compact, 800 mA, 3 MHz, Step-Down DC-to-DC Converter with an Internal Discharge Switch | ADP2138ACBZ-1.0-R7 vs ADP2139ACBZ-0.8-R7 |
| ADP2139ACBZ-3.0-R7 | Analog Devices Inc | Check for Price | Compact, 800 mA, 3 MHz, Step-Down DC-to-DC Converter with an Internal Discharge Switch | ADP2138ACBZ-1.0-R7 vs ADP2139ACBZ-3.0-R7 |
| ADP2147ACBZ-110-R7 | Rochester Electronics LLC | Check for Price | 1.65 A SWITCHING REGULATOR, 3400 kHz SWITCHING FREQ-MAX, PBGA6, 1 X 1.50 MM, ROHS COMPLIANT, WLCSP-6 | ADP2138ACBZ-1.0-R7 vs ADP2147ACBZ-110-R7 |
| ADP2138ACBZ-1.2-R7 | Analog Devices Inc | Check for Price | Compact, 800 mA, 3 MHz, Step-Down DC-to-DC Converter | ADP2138ACBZ-1.0-R7 vs ADP2138ACBZ-1.2-R7 |
ADP2138ACBZ-1.0-R7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADP2138 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the power and ground traces separate.
-
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should be chosen to ensure that the minimum ESR (Equivalent Series Resistance) is met, and the input capacitor should be chosen to ensure that the minimum input impedance is met.
-
The ADP2138 can operate in ambient temperatures ranging from -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's essential to consider the operating temperature range in your design.
-
The ADP2138 is a surface-mount device, and as such, it can be susceptible to vibration. However, the device is designed to meet the requirements of various industrial and automotive applications, which often involve high-vibration environments. To ensure reliability, it's recommended to follow proper mounting and soldering techniques, and to consider the use of vibration-dampening materials or mechanical fastening.
-
To troubleshoot issues with the ADP2138, start by verifying that the device is properly powered and that the input and output voltages are within the recommended ranges. Check the PCB layout and component values to ensure that they meet the recommended specifications. Use an oscilloscope to measure the output voltage ripple and noise, and check for any signs of overheating or physical damage to the device.
