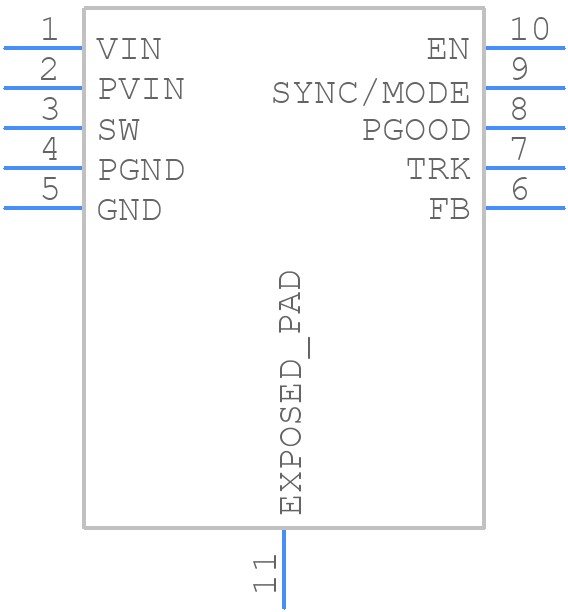

Part Symbol
-
Footprint
-

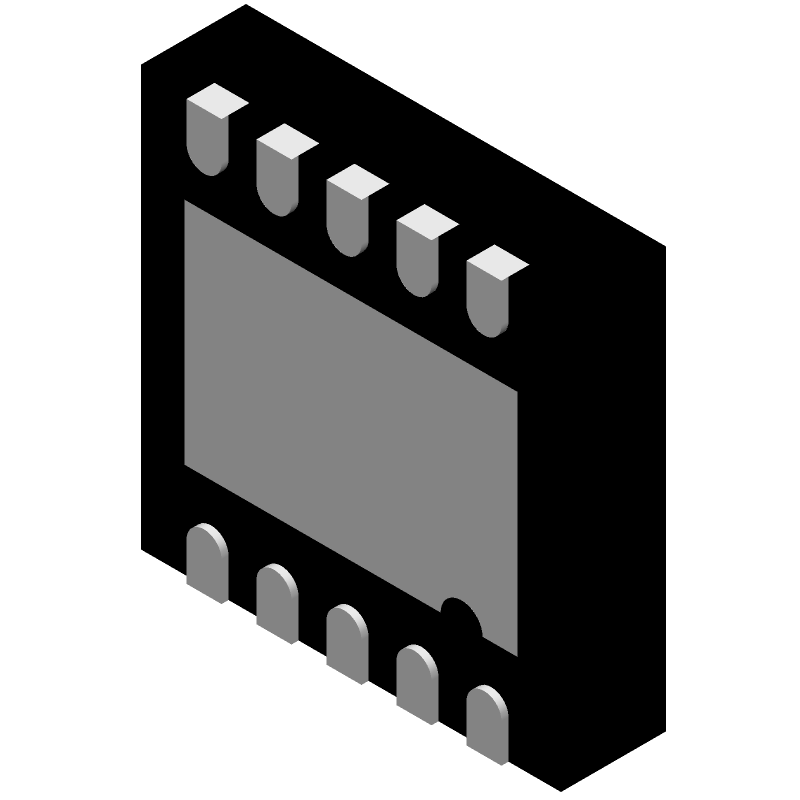

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADP2120ACPZ-1.2-R7 by Analog Devices Inc
Results Overview of ADP2120ACPZ-1.2-R7 by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADP2120ACPZ-1.2-R7 Information
ADP2120ACPZ-1.2-R7 by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADP2120ACPZ-1.2-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
02AM0913
|
Newark | Dc/Dc Conv, Sync Buck, 1.2Mhz, Lfcsp-10 Rohs Compliant: Yes |Analog Devices ADP2120ACPZ-1.2-R7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$1.8400 / $3.4000 | Buy Now |
|
DISTI #
ADP2120ACPZ-1.2-R7CT-ND
|
DigiKey | IC REG BUCK 1.2V 1.25A 10LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
360 In Stock |
|
$1.5875 / $4.6100 | Buy Now |
|
DISTI #
584-ADP2120ACPZ1.2R7
|
Mouser Electronics | Switching Voltage Regulators 1.25A Sync Step Down DC-DC Converter RoHS: Compliant | 1240 |
|
$1.6500 / $3.2600 | Buy Now |
|
|
Analog Devices Inc | 1.25A Sync Step Down DC-DC Con Min Qty: 1 Package Multiple: 1500 | 3072 |
|
$1.2100 / $4.6100 | Buy Now |
|
DISTI #
26635071
|
Verical | Conv DC-DC 2.3V to 5.5V Synchronous Step Down Single-Out 1.2V 1.25A 10-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 | Americas - 3000 |
|
$1.5975 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 5596 |
|
RFQ |
Part Details for ADP2120ACPZ-1.2-R7
ADP2120ACPZ-1.2-R7 CAD Models
ADP2120ACPZ-1.2-R7 Part Data Attributes
|
|
ADP2120ACPZ-1.2-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADP2120ACPZ-1.2-R7
Analog Devices Inc
1.25A, 1.2MHz Synchronous Step-Down DC-to-DC Regulator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | 3 X 3 MM, ROHS COMPLIANT, LFCSP-10 | |
| Pin Count | 10 | |
| Manufacturer Package Code | CP-10-9 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.3 V | |
| Input Voltage-Nom | 3.3 V | |
| JESD-30 Code | S-PDSO-N10 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 2.4 A | |
| Output Voltage-Nom | 1.2 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC10,.11,20 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.85 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 1380 kHz | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for ADP2120ACPZ-1.2-R7
This table gives cross-reference parts and alternative options found for ADP2120ACPZ-1.2-R7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADP2120ACPZ-1.2-R7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADP2119ACPZ-R7 | Analog Devices Inc | $1.8724 | 2A, 1.2MHz Synchronous Step-Down DC-to-DC Regulator | ADP2120ACPZ-1.2-R7 vs ADP2119ACPZ-R7 |
| ADP2120ACPZ-R7 | Analog Devices Inc | $1.9403 | 1.25A, 1.2MHz Synchronous Step-Down DC-to-DC Regulator | ADP2120ACPZ-1.2-R7 vs ADP2120ACPZ-R7 |
| ADP2120ACPZ-3.3-R7 | Analog Devices Inc | $2.2216 | 1.25A, 1.2MHz Synchronous Step-Down DC-to-DC Regulator | ADP2120ACPZ-1.2-R7 vs ADP2120ACPZ-3.3-R7 |
| ADP2119ACPZ-3.3-R7 | Analog Devices Inc | $2.4484 | 2A, 1.2MHz Synchronous Step-Down DC-to-DC Regulator | ADP2120ACPZ-1.2-R7 vs ADP2119ACPZ-3.3-R7 |
| ADP2119ACPZ-3.3-R7 | Rochester Electronics LLC | Check for Price | 3.5 A SWITCHING REGULATOR, 1380 kHz SWITCHING FREQ-MAX, PDSO10, 3 X 3 MM, ROHS COMPLIANT, LFCSP-10 | ADP2120ACPZ-1.2-R7 vs ADP2119ACPZ-3.3-R7 |
| ADP2120ACPZ-2.5-R7 | Analog Devices Inc | Check for Price | 1.25A, 1.2MHz Synchronous Step-Down DC-to-DC Regulator | ADP2120ACPZ-1.2-R7 vs ADP2120ACPZ-2.5-R7 |
| ADP2119ACPZ-1.0-R7 | Analog Devices Inc | Check for Price | 2A, 1.2MHz Synchronous Step-Down DC-to-DC Regulator | ADP2120ACPZ-1.2-R7 vs ADP2119ACPZ-1.0-R7 |
| ADP2119ACPZ-R7 | Rochester Electronics LLC | Check for Price | 3.5 A SWITCHING REGULATOR, 1380 kHz SWITCHING FREQ-MAX, PDSO10, 3 X 3 MM, ROHS COMPLIANT, LFCSP-10 | ADP2120ACPZ-1.2-R7 vs ADP2119ACPZ-R7 |
| ADP2120ACPZ-1.0-R7 | Analog Devices Inc | Check for Price | 1.25A, 1.2MHz Synchronous Step-Down DC-to-DC Regulator | ADP2120ACPZ-1.2-R7 vs ADP2120ACPZ-1.0-R7 |
| ADP2120ACPZ-1.8-R7 | Analog Devices Inc | Check for Price | 1.25A, 1.2MHz Synchronous Step-Down DC-to-DC Regulator | ADP2120ACPZ-1.2-R7 vs ADP2120ACPZ-1.8-R7 |
ADP2120ACPZ-1.2-R7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADP2120 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
-
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor is properly sized and placed close to the device. Additionally, a minimum ESR (Equivalent Series Resistance) of 0.1 ohm is recommended for the output capacitor.
-
The maximum input voltage that can be applied to the ADP2120 is 5.5V. Exceeding this voltage may damage the device.
-
The ADP2120 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and voltage according to the temperature derating curve provided in the datasheet.
-
The output voltage ripple of the ADP2120 can be calculated using the formula: ΔVout = (Iout * ESR) / (fsw * Cout), where Iout is the output current, ESR is the equivalent series resistance of the output capacitor, fsw is the switching frequency, and Cout is the output capacitance.
